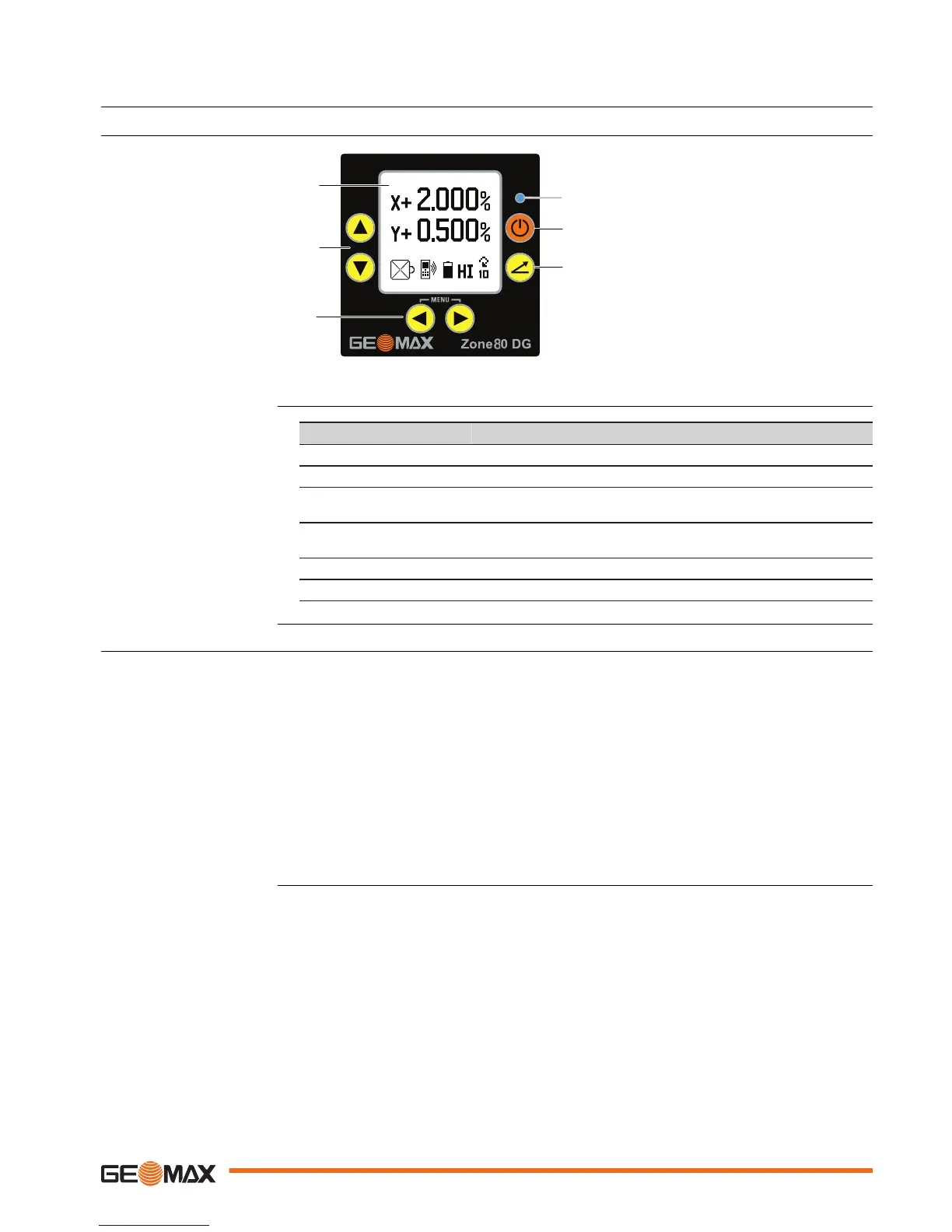

a LCD display
b Up and down arrow buttons
c Left and right arrow buttons
d Status LED
e Power button
f Grade button
Component Function
LCD display Displays all required user information.
Grade button Press to start grade entry mode.
Left and right arrow but-
tons
Press to display and move the cursor for grade entry.
Press both simultaneously to enter the Zone80 DG menu.
Up and down arrow but-
tons
Press to change the grade displayed.
Press both simultaneously to reset the grade value to zero.
Power button Press to turn on or off the Zone80 DG.
Status LED Indicates the level status of the Zone80 DG.
3.2 Turning the Zone80 DG on and off
Press the Power button to turn the Zone80 DG on or off.
After turning on:
•
The LCD display turns on and displays the current status of the Zone80 DG.
•
If set up within the +/-6° self-levelling range (horizontal or vertical), the Zone80 DG auto-
matically levels to create an accurate horizontal plane of laser light.
•
Once levelled, the head starts rotating and the Zone80 DG is ready for use.
•
The H.I.Alert system becomes active 30 seconds after completing the self-levelling. The
H.I.Alert system protects the Zone80 DG against changes in elevation caused by any move-
ment or settling of the tripod.
•
The self-levelling system and the H.I.Alert function continue to monitor the position of the
laser beam to ensure consistent and accurate work.
☞
The H.I.Alert function turns on automatically every time the Zone80 DG is turned on.
Overview
Description
Turn on and off
Operation 17
