GeoMax Zone80 DG User Manual
5
of 1
of 1 rating
62 pages
Give review
Manual
Specs
To Next Page
To Next Page
To Previous Page
To Previous Page
Loading...
Type
Value
Input voltage
100 V AC-240 V AC, 50 Hz
-60 Hz
Output voltage
12 V DC
Output current
3.0 A
Polarity
Shaft: negative, Tip: positive
Type
Value
Input voltage
12 V DC
Input current
2.5 A
Charge time
5 hours (maximum) at 20 °C
13.3.1

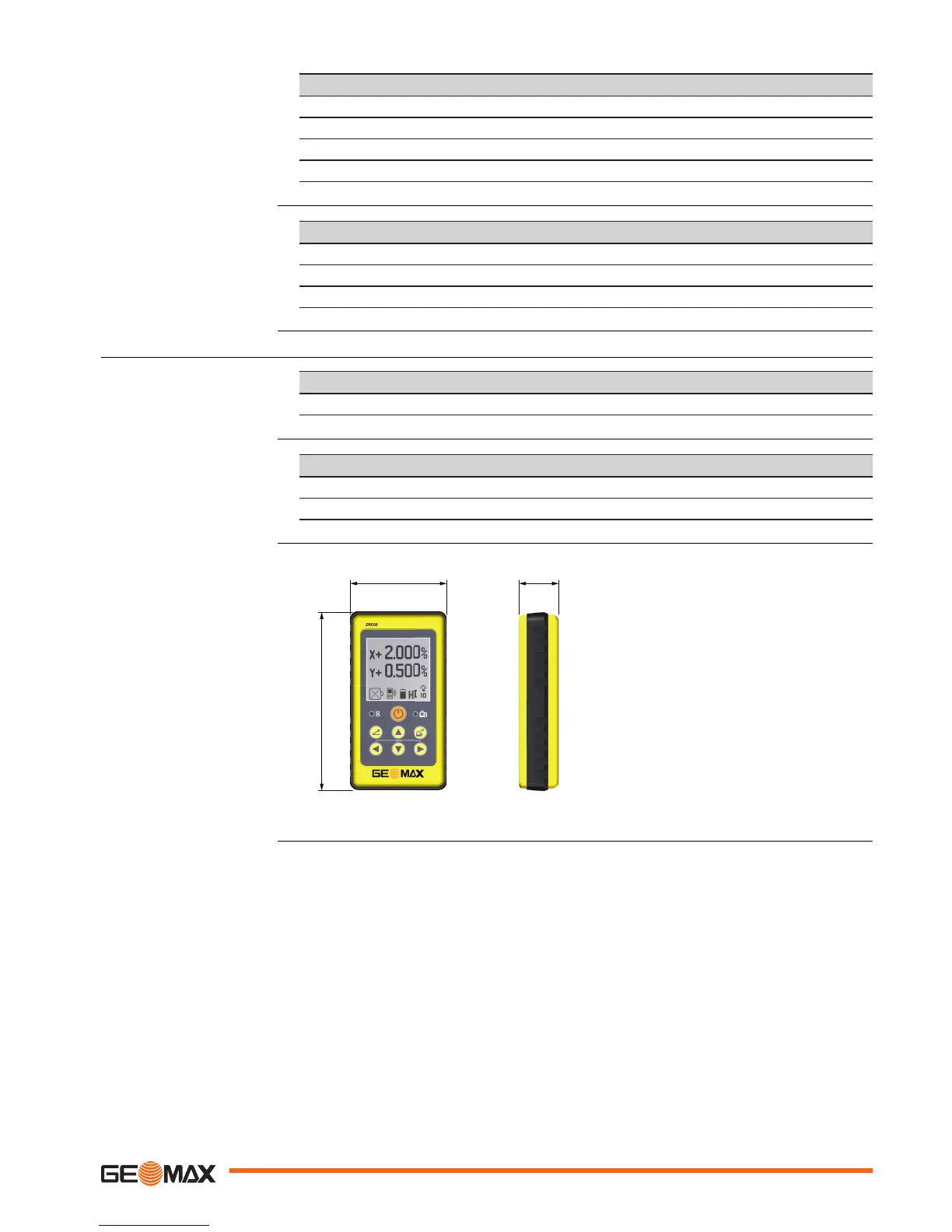

ZRC60 Remote Control
Type
Value
Operating r
ange (diameter)
300 m / 1000 ft
Type
Value
Batteries
Alkaline, two AA-cells
Battery life, typical usage
70 hours
007849_001
30 mm (1.2")
135 mm (5.3")
73 mm (2.9")
Lithium-Ion charger
Lithium-Ion battery pack
Operating range
Batteries
Remote control dimen-
sions
Technical Data
61
60
62
Table of Contents
Default Chapter
2
Menu Set
2
Table of Contents
3
Menu Set 2
3
1 Safety Directions
5
General
5
Definition of Use
5
Limits of Use
6
Responsibilities
6
Hazards of Use
6
Laser Classification
9
General
9
Zone80 DG
9
Electromagnetic Compatibility EMC
10
FCC Statement, Applicable in U
11
2 Description of the System
14
System Components
14
Zone80 DG Laser Components
15
Case Components
15
Setup
15
3 Operation
17
User Interface
17
Turning the Zone80 DG on and off
17
The LCD Display
18
Grade Entry
18
Axis Identification
20
Conversion of Slope into Percent of Grade
20
Alignment of the Axes
21
Precise Alignment of the Axes
21
Laydown Operation
22
4 ZRC60 Remote Control
23
Description of the Remote Control
23
Pairing the Zone80 DG with the ZRC60 Remote Control
24
Connecting Screens for the Remote Control
25
5 Receivers
26
Overview
26
ZRP105 Receiver
26
ZRD105, Digital Receiver
27
ZRD105B, Digital RF Receiver
28
Using the ZRD105B Receiver with the Zone80 DG
28
Pairing the ZRD105B with the Zone80 DG
28
6 Zone80 DG Menu
30
Access and Navigation
30
Menu Set
31
7 ZRC60 Menu
43
8 Applications
44
Agriculture Levelling
44
Checking Grades
44
Entering Grades
45
Beam Catching (Grade Matching)
46
Beam Lock (Grade Matching and Monitoring)
46
9 Batteries
48
Operating Principles
48
Battery for Zone80 DG
48
10 Accuracy Adjustment
50
Checking the Level Accuracy
50
Adjusting the Self-Levelling Accuracy
51
Adjusting the Vertical Accuracy
52
11 Troubleshooting
54
12 Care and Transport
57
Transport
57
Storage
57
Cleaning and Drying
57
13 Technical Data
59
Conformity to National Regulations
59
Dangerous Goods Regulations
59
General Technical Data of the Product
59
ZRC60 Remote Control
61
