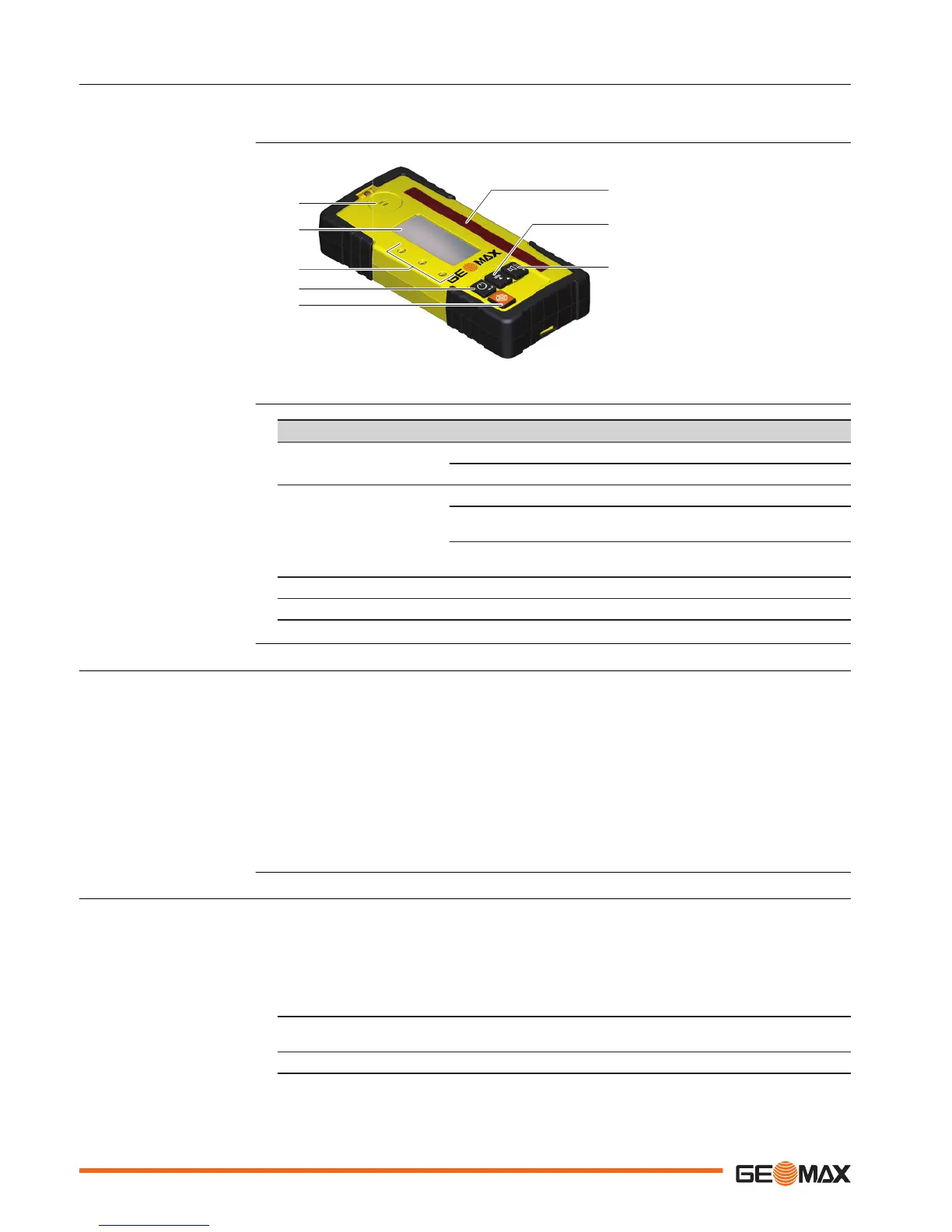

a Speaker
b LCD Digital Display
c LED Display
d Power button
e Beam Catch button
f Reception window
g Bandwidth button
h Audio button
Button Function
Power Press once to turn on the receiver.
Press 1.5 seconds to turn off the receiver.
Beam Catch Press to capture the digital reading.
Press 1.5 seconds to start the Beam Catching function. Refer to
"8.4 Beam Catching (Grade Matching)".
Press 5 seconds to start the Beam Lock function. Refer to "8.5
Beam Lock (Grade Matching and Monitoring)".
Bandwidth Press to change detection bandwidths.
Audio Press to change the audio output.
5.2 Using the ZRD105B Receiver with the Zone80 DG
The Zone80 DG can be used with almost any receiver.
However, when used with the ZRD105B receiver, the following special functions are available:
•
Beam Catching - Allows you to match an existing grade. (Refer to "8.4 Beam Catching
(Grade Matching)")
•
Beam Lock - Monitors the grade position to keep it on grade. (Refer to "8.5 Beam Lock
(Grade Matching and Monitoring)")
Before using the special functions, the Zone80 DG and the ZRD105B must be paired together to
be able to communicate with each other. (Refer to "5.3 Pairing the ZRD105B with the Zone80
DG")
5.3 Pairing the ZRD105B with the Zone80 DG
The Zone80 DG and the ZRD105B Receiver include radio devices that allow you to activate the
functions on the Zone80 DG remotely up to 100 m (300’) from the Zone80 DG.
Before using the RF features, the Zone80 DG and the Receiver must be paired together to be
able to communicate with each other.
1. Turn off the Zone80 DG.
2. Press and hold the Power Button on the Zone80 DG for 5 seconds to turn on the
Zone80 DG in pairing mode. The Zone80 DG beeps five times slowly.
3. Press and hold the Power Button on the Receiver until pairing is confirmed.
Instrument components
Description of the buttons
Special functions when
using ZRD105B receiver
Pairing step-by-step
28 Receivers
