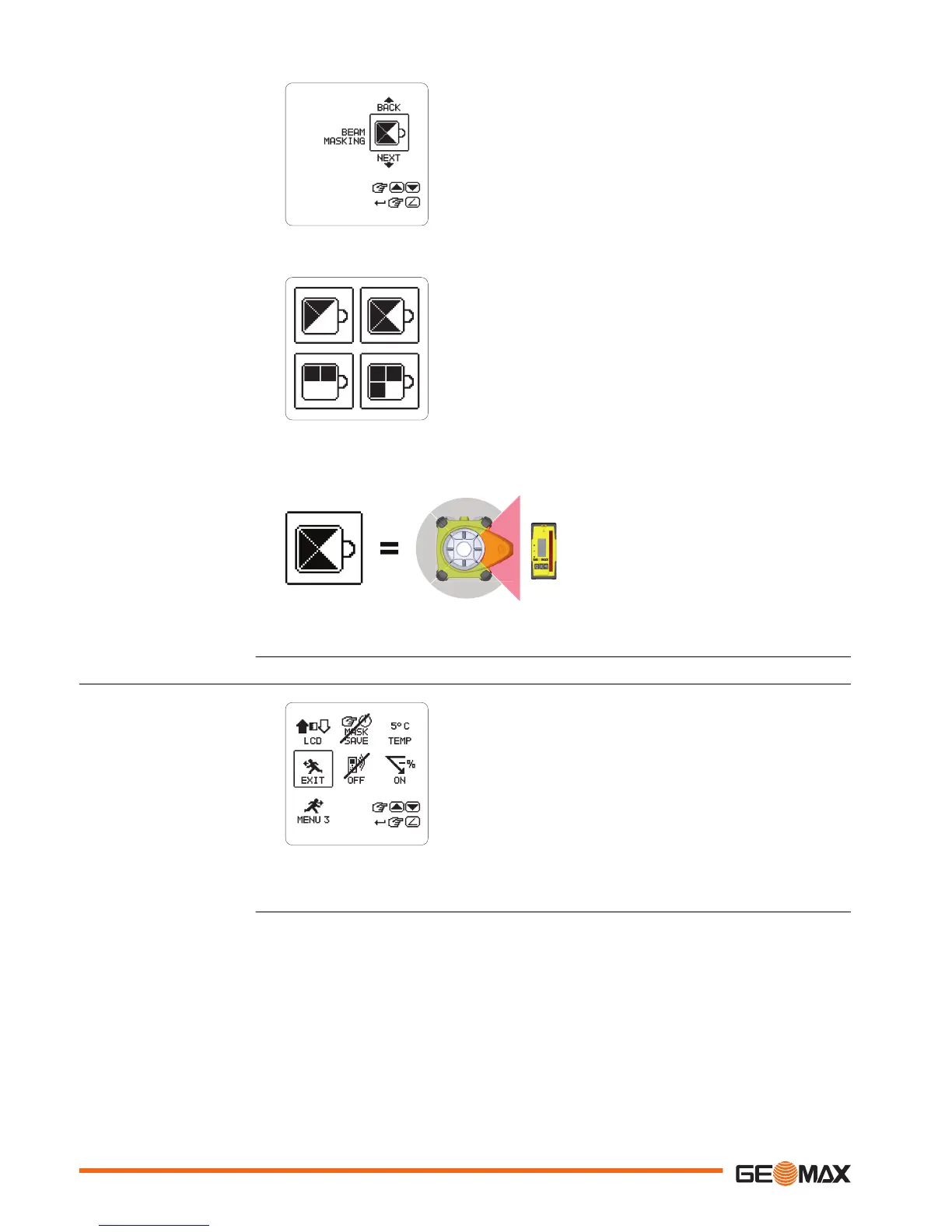

Beam masking Screen
Beam masking allows you to turn off the laser beam on selected
sides of the laser to prevent interference with other lasers or
receivers that could be working in the same working area.
Possible combinations
You can choose to block half or three quarters of the rotating
laser beam.
Each of the four displayed combinations is available in four dif-
ferent variants. The dark area represents the area where the
laser beam is turned off.
Use the Up or Down arrow buttons to choose from the 16 possi-
ble combinations.
Menu Set 2
In the Menu Set 2, you can select the following parameters:
•
Display brightness
•
Beam masking - save at power off
•
Temperature sensitivity
•
Negative grade - enable/disable
•
Radio - enable/disable
☞
To exit the menu, highlight and select the EXIT icon.
OR: Wait for 8 seconds and the menu is exited auto-
matically.
☞
To display the Menu Set 3, highlight and select the
MENU 3 icon.
Beam masking
Overview
34 Zone80 DG Menu
