Offline Operation
4-2 The Offline Menu
Plotter Model Vx.x.x
Press ENTER to
enable plotter
OFFLINE ...
ONLINE
INITIALIZE
PAPER ADV
ORIGIN
PAPER ADVANCE
REVERSE
ORIGIN POSITION
ONLINE
INITIALIZING
Appears when the plotter is turned on.
Offline Menu Page 1
Offline Menu Page 2
Offline Menu Page 3
DIAGNOSTICS ...
SERVICE
EXIT
DIAG PLOTS
DISPLAY DIAG
IO DIAGS
SERVO DIAGS
TOOL up/down
PARAM ENTRY
SERVO DIS
TOOL TMR
OFFLINE ...
DOWNLOAD
DIAGNOSTICS
PAGE 2
SERVO
MISC
INKJET
PEN DIAG PLOTS...
PEN DN-45
PEN UP-45
PAGE TEST
PAGE 1
16 X 32
LIFE TEST
FONT TEST
INKJET DIAG PLOTS...
TEST JETS
ROTATE
OFFSET
OFFLINE ...
PAGE 1
PAGE 2
FONT TEST
OFFSET TEST
MULTI DIR
PAGE 3
KEY TEST
EXIT
DIAGNOSTICS ...
PAGE 1
STEP STATE
JET SEQ
PAGE 2

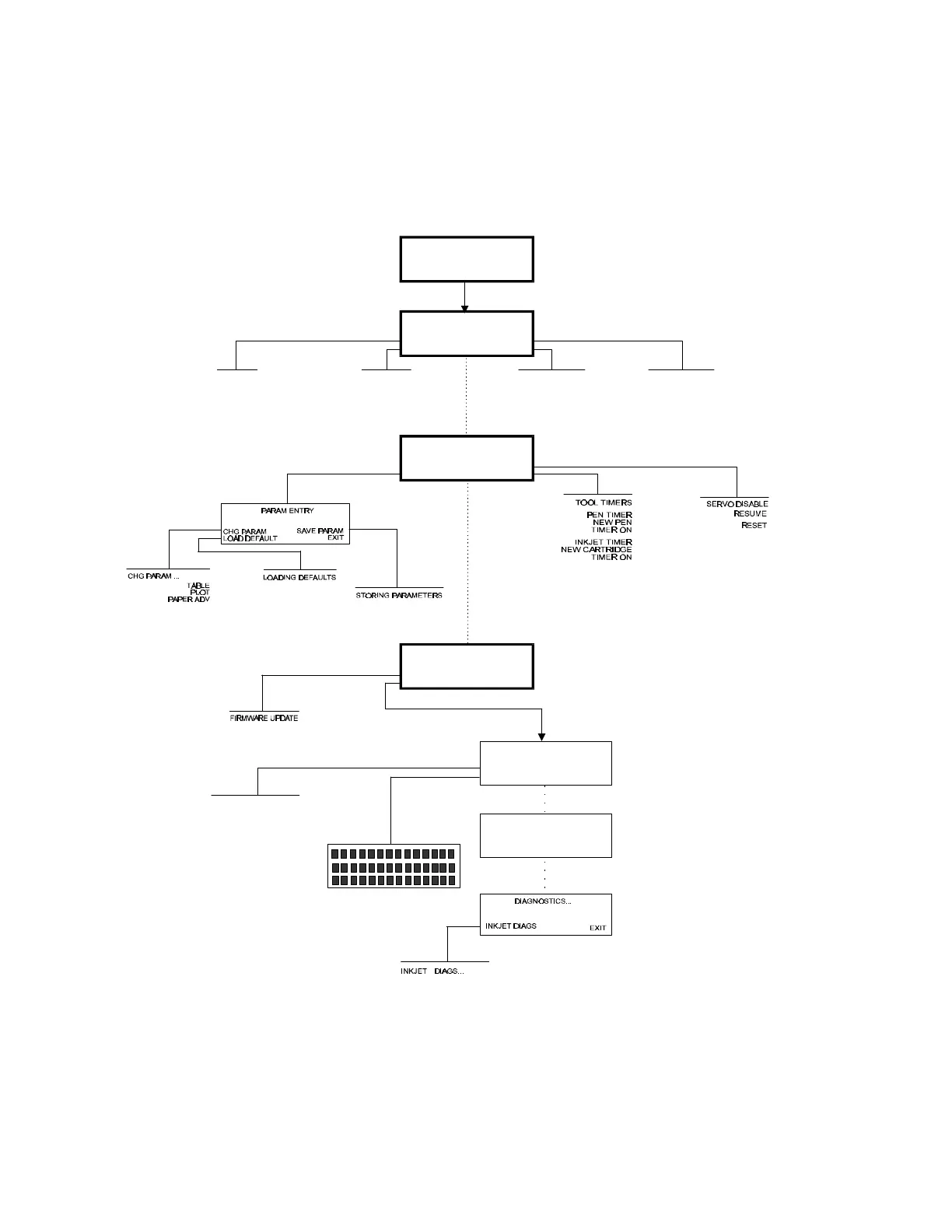

Figure 4-1 Plotter Menu Structure
