Gerber Technology AccuPlot AP-100 User Manual

AccuPlot and AccuJet Maintenance
5-6 Loading Plotter Paper

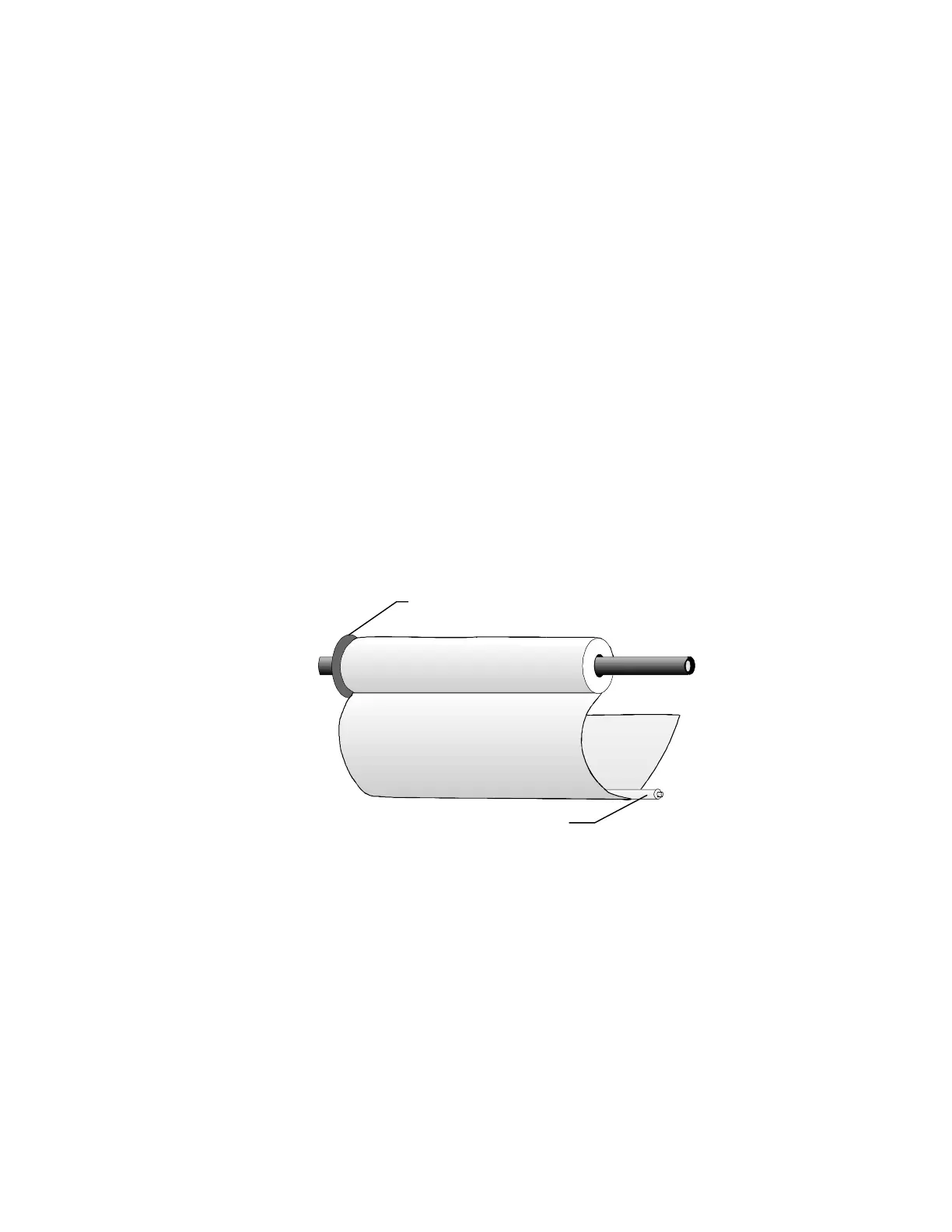

9. Install the dancer bar:
• Rotate the supply roll to create a pocket of paper between the
supply roll and the plotter table.
• Lay the dancer bar in the pocket across the width of the paper.
• Rotate the supply roll to lower the dancer bar (in the pocket)
until it lines up with the holders at both ends of the bar.
• Connect one side of the dancer bar by inserting the pin at the
end of the bar into the hole in the end of the holder. Repeat to
connect the other side of the dancer bar.
10. Adjust the tension on the dancer bar:
• Lower the dancer bar until the paper loses tension, then bring
the paper back until the slack disappears.
Stationary End Plate
Dancer Bar

Gerber Technology AccuPlot AP-100 Specifications

General

Model	Accuplot AP-100
Category	Plotter
Media Types	Paper, Film
Connectivity	Parallel
Power Requirements	120 VAC

Summary

Introduction to Plotter Systems

Safety Practices and Emergency Stop

Covers essential safety procedures and the function of the emergency stop switch.

Plotter Operation: Starting and Stopping

Power On and Initialization Steps

Guide for powering on the plotter and performing initial setup.

Putting the Plotter Online

Instructions on connecting the plotter to the marking and grading system.

Stopping and Powering Down Procedures

Steps to safely stop plotter operation and shut down the unit.

Plotter Hardware Components

Offline Operation Procedures

Offline Menu Structure and Navigation

Paper Handling and Origin Setting

Servo Control and Plotter Reset

Procedures for disabling/enabling servo power and resetting the plotter.

Parameter Configuration and Settings

Parameter Overview and Modification

Timer Settings and Management

Firmware Updates and Diagnostics

Downloading and Installing Firmware

Step-by-step guide for updating the plotter's firmware.

Diagnostic Test Procedures

Specific Diagnostics (Display, Keys, Inkjet)

Details on running display, key, and inkjet diagnostics.

AccuPlot and AccuJet Maintenance

Loading Plotter Paper Procedures

Pen and Inkjet Cartridge Maintenance
