GESTRA NRR 2-52 - Valve Calibration in Manual Mode When a Feedback Potentiometer Is Connected

56 NRR 2-52, NRR 2-53, URB 55 - USA- Installation & Operating Manual - 850698-00
Configuring the level controller

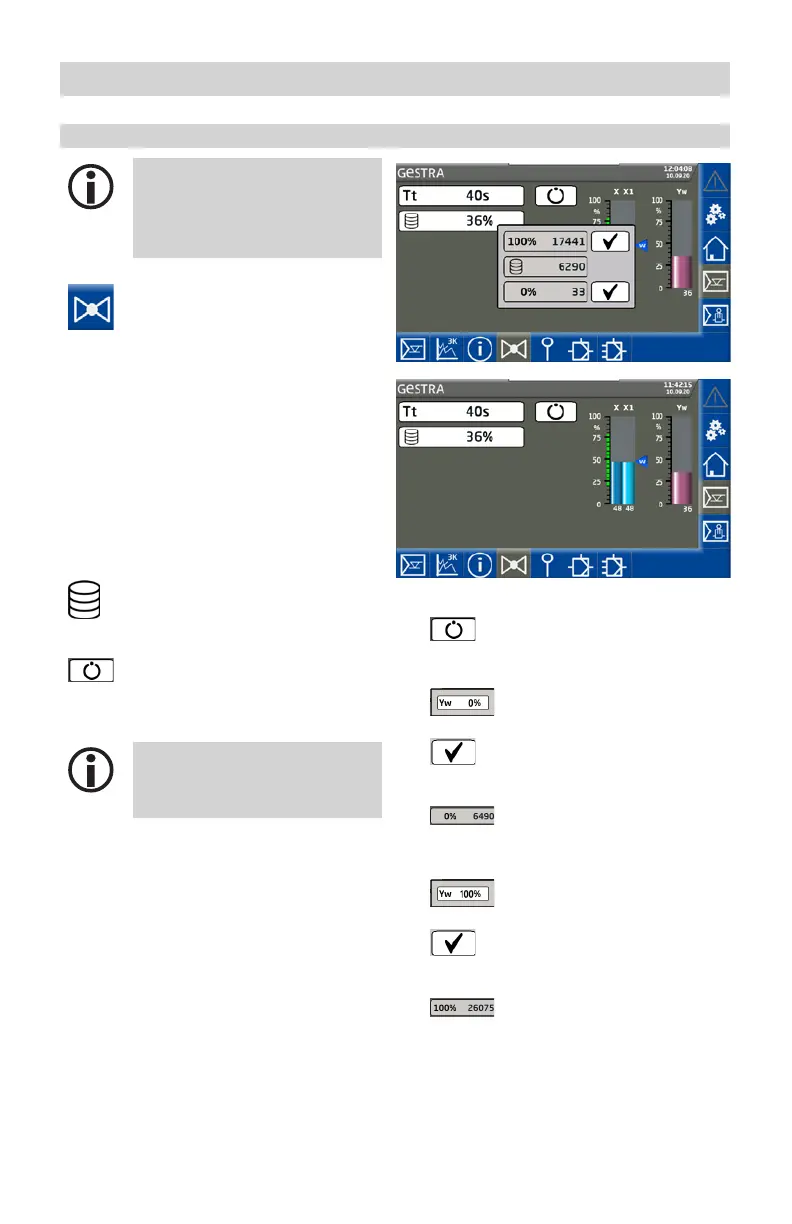

Valve calibration in manual mode when a feedback potentiometer is connected
Even with a feedback potentio-
meter connected to the controller,
the valve runtime still needs to be
established and entered precisely.
Open the “Valve” menu.
Active parameters when a feedback poten-
tiometer is connected to the NRR 2-52 level
controller:
Tt Valve runtime (NRR 2-52 only),
see page 56
100% (OPEN) / 0% (CLOSED)
Calibrated valve positions.
The calibrated raw data is shown in
both fields.
Raw data
Indicates the current digital
valve position.
Auto / Manual
Switch between automatic and
manual mode.
If no feedback potentiometer is
connected to the level controller,
the parameters are not displayed.
1. Press the Automatic
button and switch to
manual mode.
2.
Enter “0%” as the manipulated
variable (Yw).
3.
When the valve is in the
(CLOSED) end position,
confirm this position.
4.
The raw data from the central
field is automatically
entered in the 0% (CLOSED) field.
5.
Next, enter “100%” as the
manipulated variable (Yw).
6.
When the valve is in the
(OPEN) end position,
confirm this position.
7.
The raw data from the central
field is automatically
entered in the 100% (OPEN) field.
