Teach-in GC 342 safety sensor
24

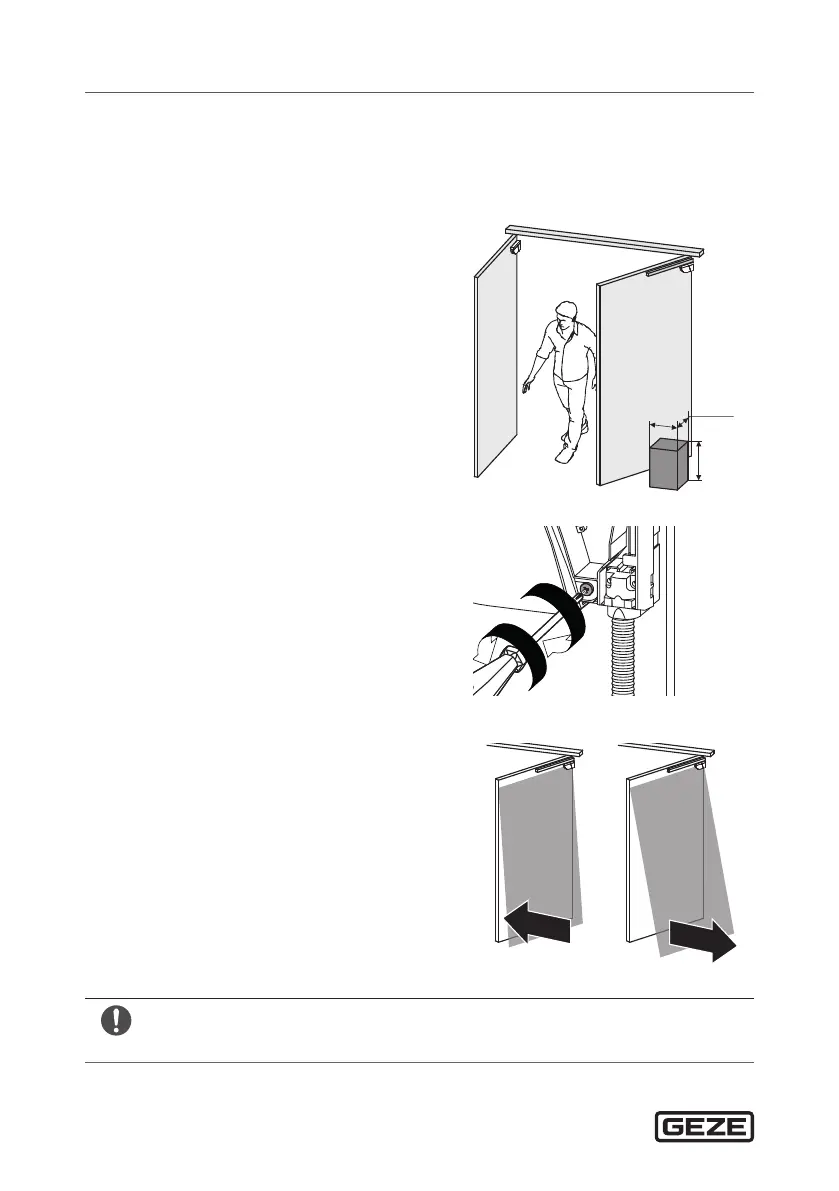

10.4 Test and settings
Checking the correct positioning of the detection areas
X
Place a reference body in the
detection area.
The door swings open up to the
reference body without touching
it and then closes again.
X
Place the reference body next
to the door leaf.
The door does not move.
30 cm
20 cm
70 cm
If necessary, set the inclination
angle of the sensor:
X
Turn the angle adjustment screw
(between 2° and 10°).
A
A
B
B
If the inclination angle, starting position or environment has been changed, always
launch a teach-in and test the correct positioning of the detection areas checked.
