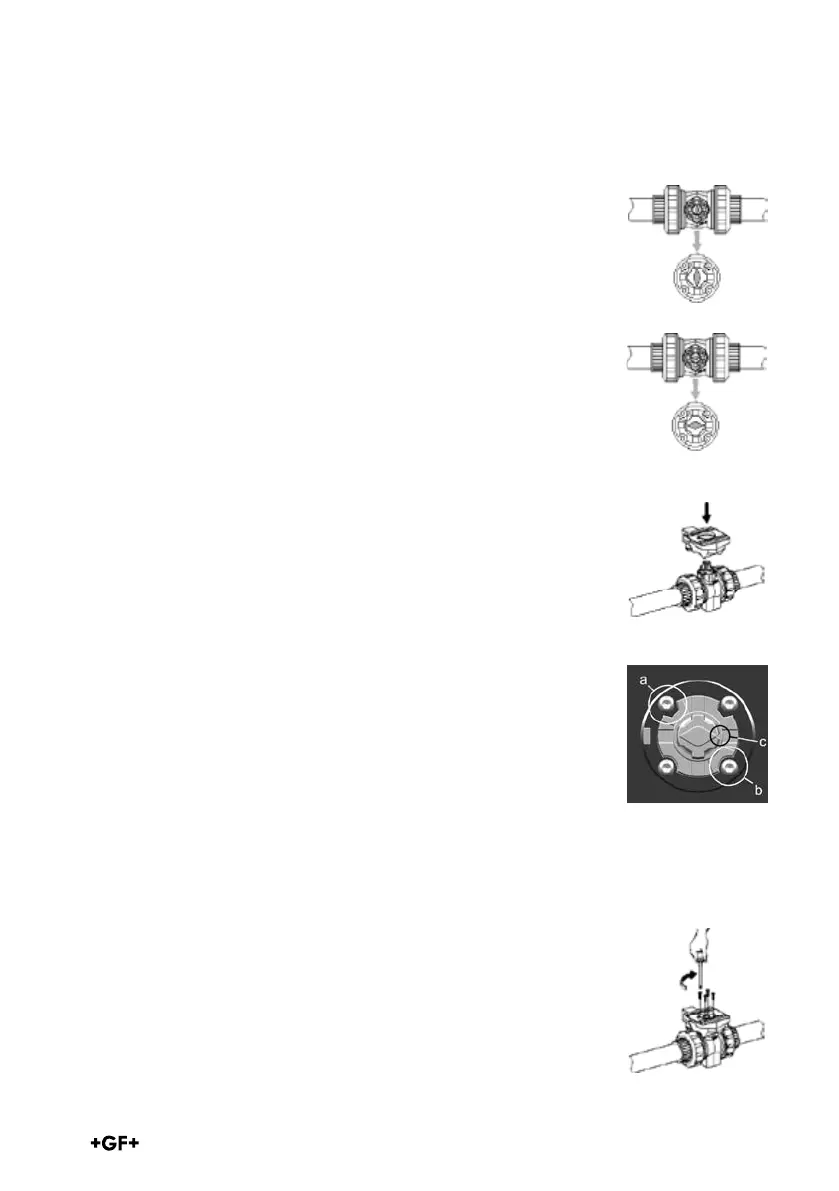

• Spigot is asymmetrical.
• Thespigotpositionmustbeidenticalwithoneofthe
two illustrations.
A Spigot position for closed ball valve.
B Spigot position for open ball valve.
• Place the MF module on the ball valve.
• Make sure the contours match!
Note the square (a) and round (b) contours as well as
the position of the asymmetrical recesses (c) of the
stem.
• Tighten the 4 pre-assembled screws (Torx). The MF
module is now firmly connected with the ball valve.
• Insert the coupling and the coupling piece in the
multifunctional module.
• Fasten the actuator with the adapter plate to the
multifunctional housing using the provided clamps.
