Mounting with manual override
First screw the parts for the manual override onto the
actuator (note the position of the cams).
• Couplingleverwithintermediatepieceontop
• Controllever
• Intermediatepiecebelow
• Proceedaccordingtotheinstructionsformounting
without manual override

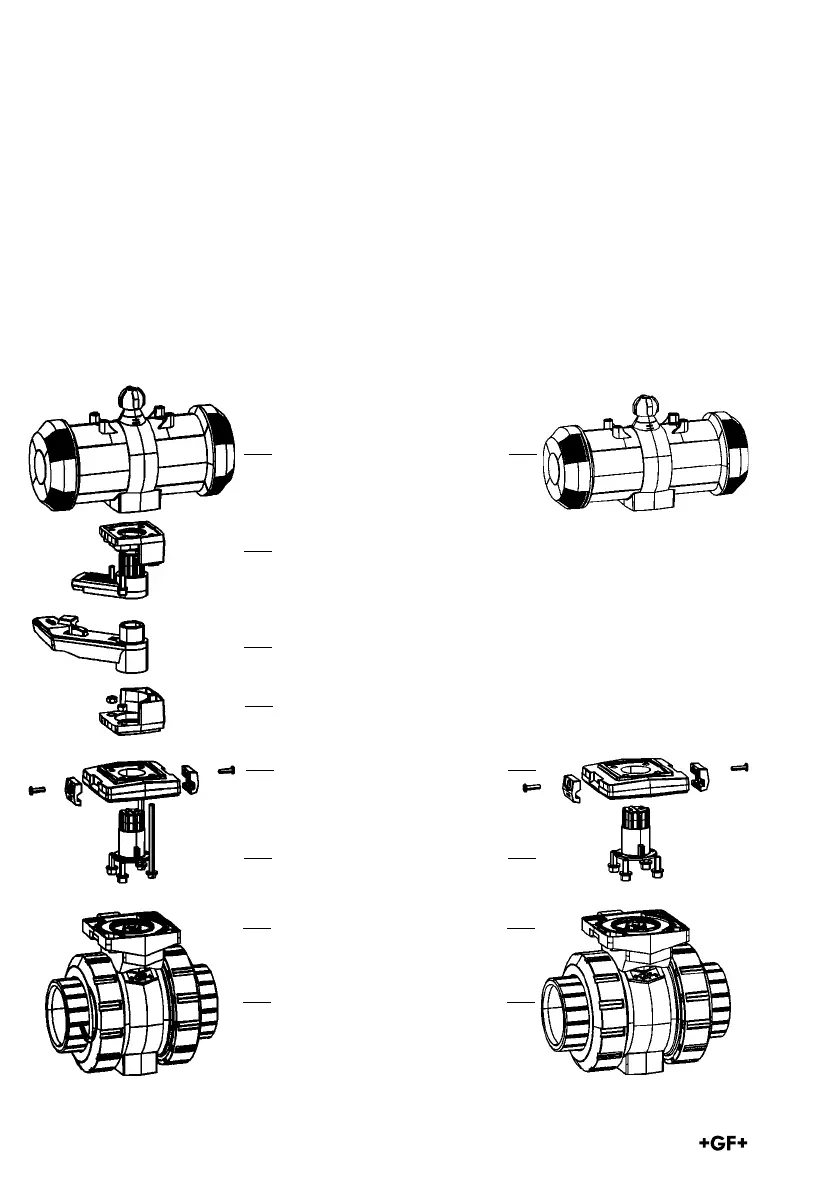

Actuator type PA11/21
Coupling lever with
intermediate piece on top
Control lever
Intermediate piece
below
Adapter plate with
clamps
Coupling piece
Multifunctional module
Ball valve type 546
With manual override
Without manual override
