Switch type Capacity Code no.
Microswitch 250 V W 167 482 626 DN 10–15
Ag, Ni 6 A *) 167 482 627 DN 20–25
167 482 628 DN 32–40
167 482 629 DN 50
Microswitch 4 – 30 V= 167 482 635 DN 10–15
with gold contact 1 – 100 mA 167 482 636 DN 20–25
Au 167 482 637 DN 32–40
167 482 638 DN 50
* ohm resistive load.
For inductive load, provide for protective circuitry!

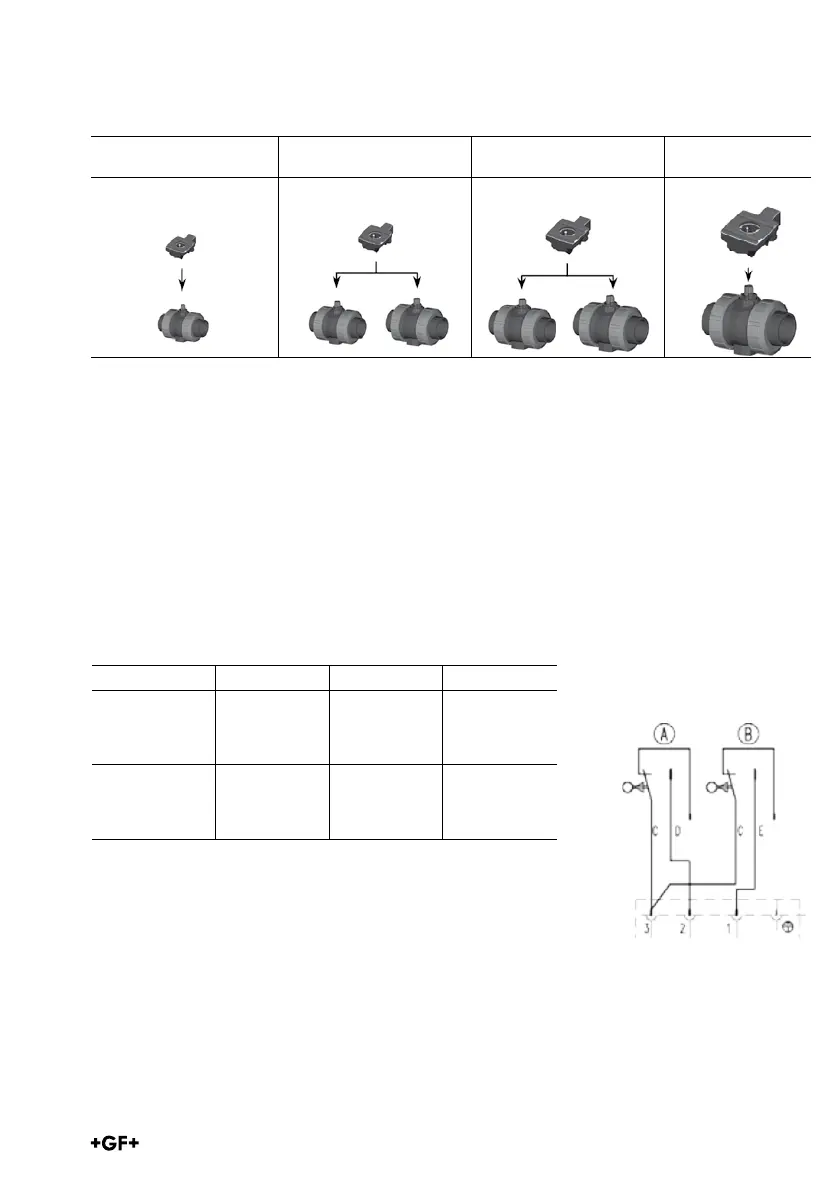

Configuration of the multifunctional module including
electric feedback unit
Dimension Dimension Dimension Dimension
DN 15 DN 20 and DN 25 DN 32 and DN 40 DN 50
General technical data
of the multifunctional module
Protection rating with DIN plug: IP 65
Protection rating with cable gland: IP 67
Ambient temperature: –¢0°C to +50°C
A closed
B open
C black
D blue (short cable)
E blue (long cable)
Circuit diagram
