Switch type Capacity Code no.
Inductive switch 5 – 3 V 167 482 653 DN 10–15
NPN 0.1 A 167 482 654 DN 20–25
167 482 655 DN 32–40
167 482 656 DN 50
Inductive switch 5 – 30 V= 167 482 662 DN 10–15
PNP 0.1 A 167 482 663 DN 20–25
167 482 664 DN 32–40
167 482 665 DN 50
A closed
C blue
D black
E black
F brown
b open

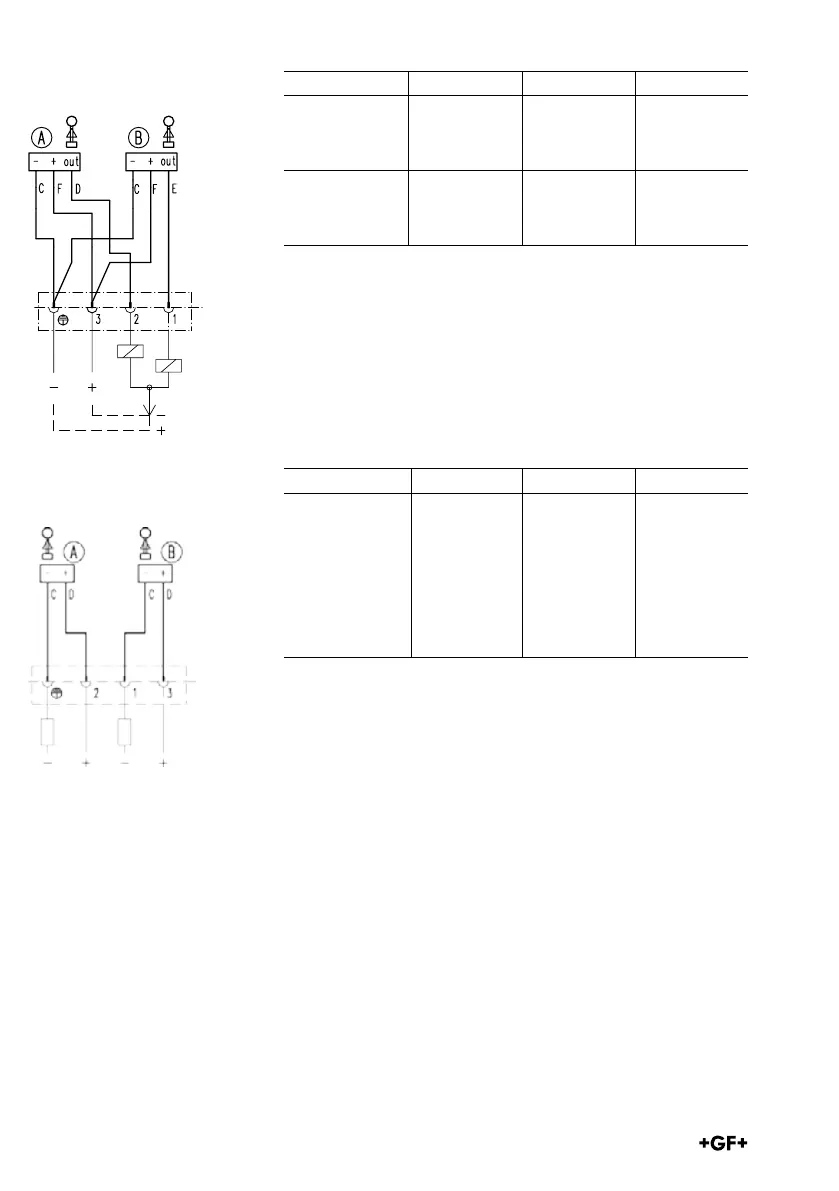

Circuit diagram
Switch type Capacity Code no.
Inductive switch 8 V = 167 482 671 DN 10–¢5
Namur 167 482 672 DN 20–25
(intrinsically safe) 167 482 673 DN 32–40
Approvals: 167 482 674 DN 50
ATEX 2023x, CSA
EMV per EN
60947-5-2
norm conformity
EN 60947-5-6
A closed
B open
C blue
D brown
Circuit diagram
