9 C. Remove machine from skid
1. Remove plastic cover and accessory box.
2. Raise the In-feed table (# 1) and lock in place
3. Remove rewind tube by pushing toward the spring side
4. Remove supply shaft (# 2) from the crate base by loosening the hex
bolts on core adapters and sliding to one side

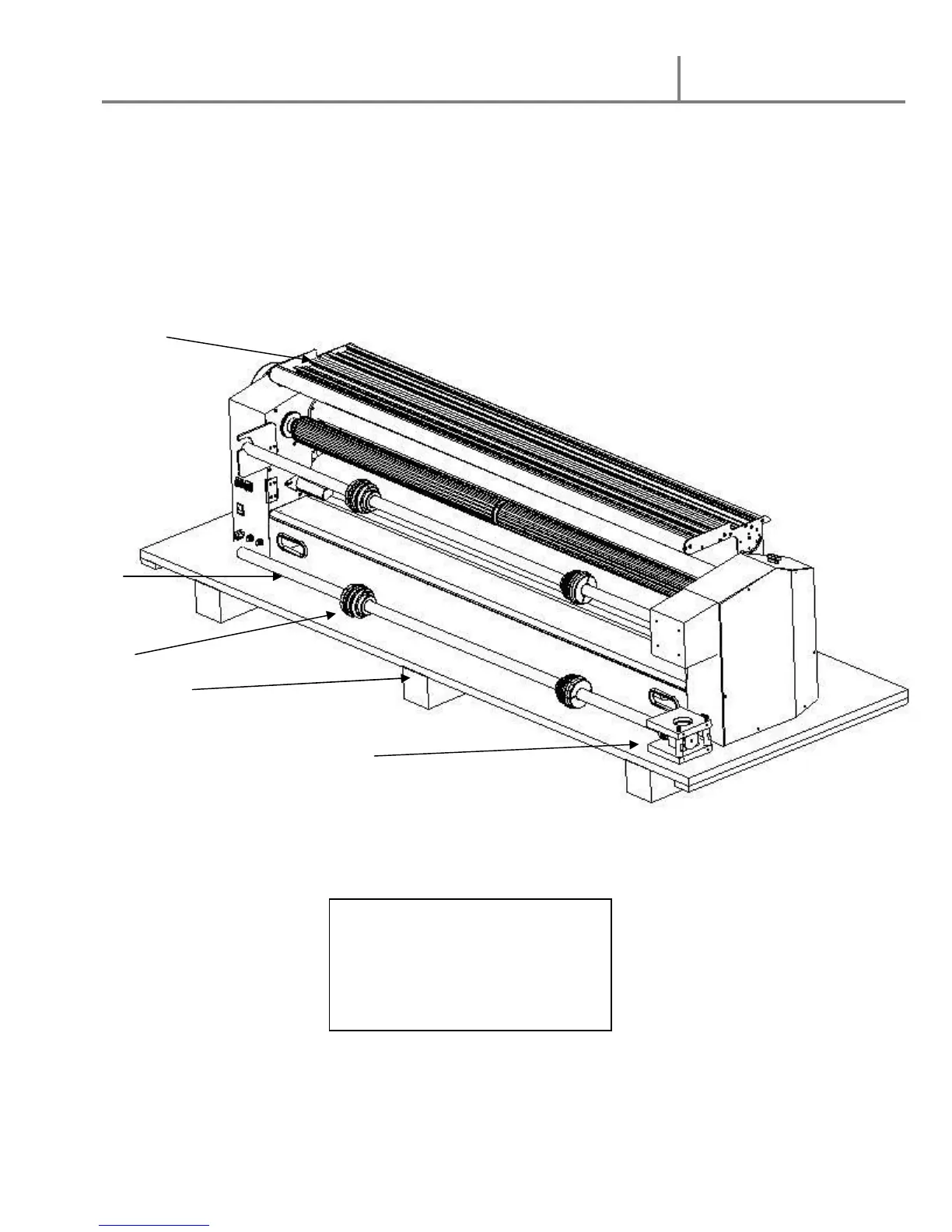

1. In feed table
2. Top Supply mandrel
3. Film core adaptor/ brake
4 Shipping skid
5. Swing out shaft assembly
