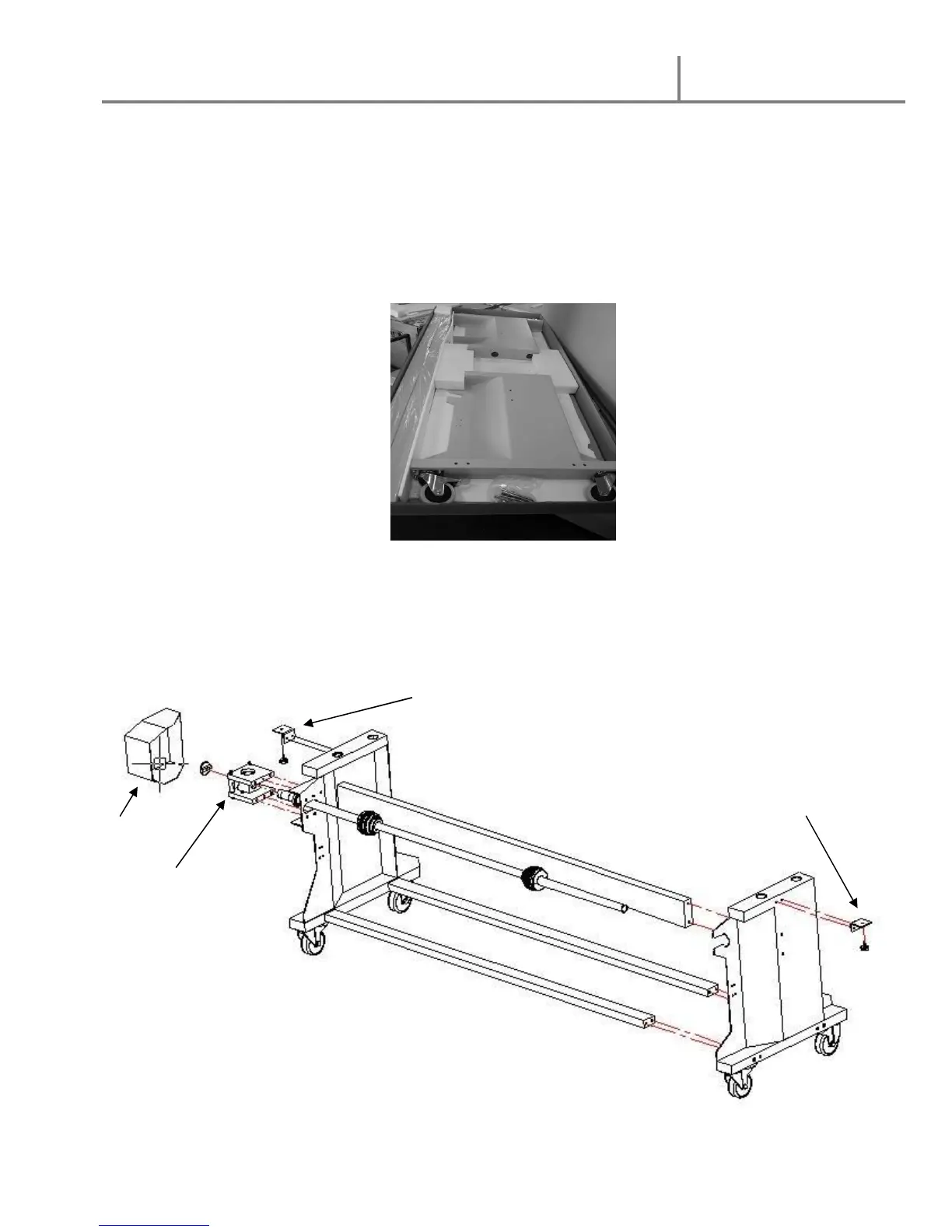

9 D. Assemble machine stand
1. Remove stand from shipping box
2. Bolt cross members to stand side frame
3. Larger cross member goes in the center and takes the shorter bolts
4. Use a flat washer and lock washer – Flat washer contacts the stand.
5. Remove brake assembly, thread shaft through opening in stand
6. Bolt swing shaft assembly to stand with 6 bolts
7. Bolt cover to swing shaft assembly
8. Bolt machine alignment brackets to the outside of machine stand
Cover
Swing
s
haft assembly
Machine alignment bracket
Machine alignment bracket
