Gfp 563TH - System Components

Gfp
563TH
December 2012
7

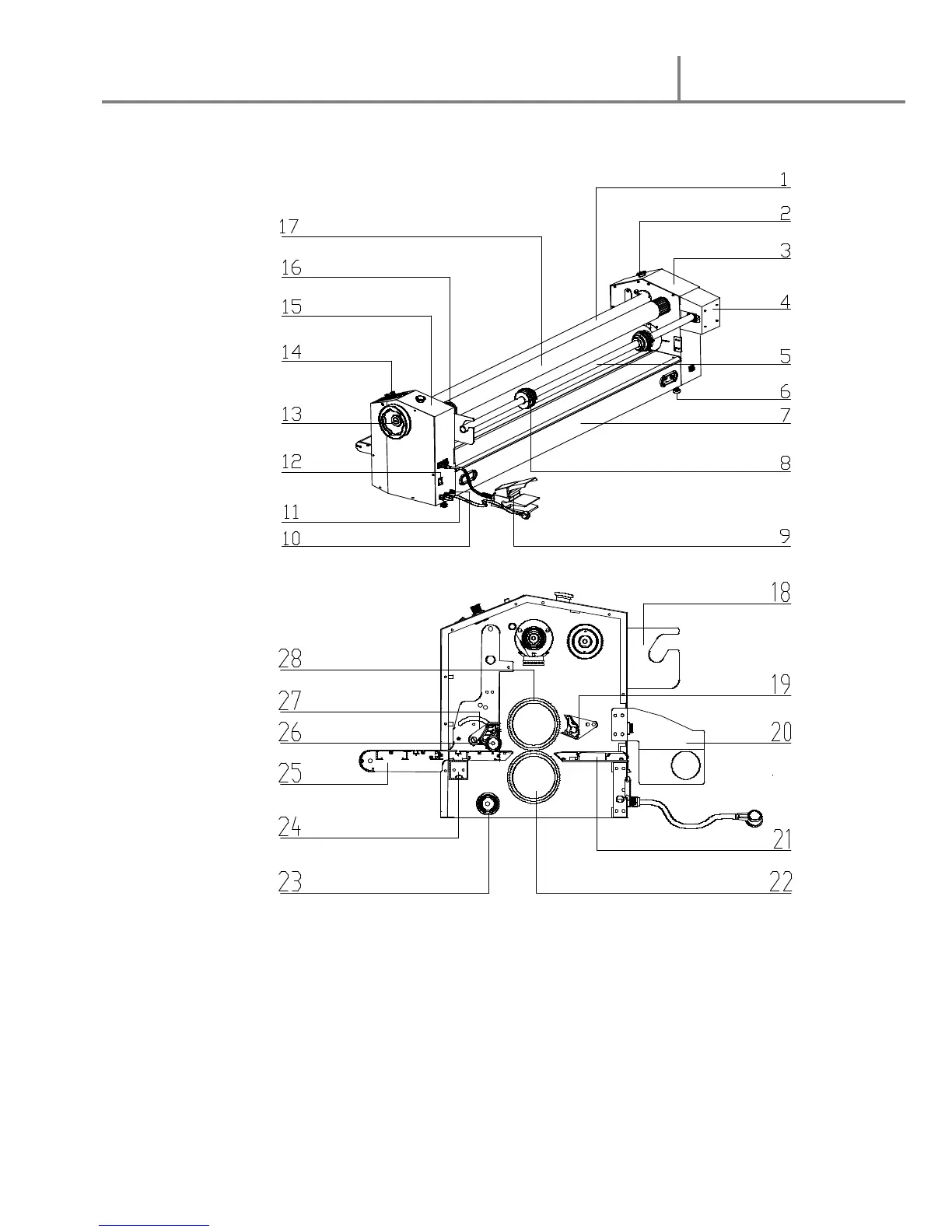

6. System Components
1. Linkage Axle 11. Power cord 21. Exit table
2. Emergency Stop switch 12. Main power switch 22. Bottom nip roller
3. Left cabinet 13 Roller gap hand-wheel 23. Support crossbar
4. Assembly cover 14. Control panel 24. Cross member
5. Top Supply mandrel 15. Right cabinet 25. In-feed table
6. Leveling foot 16. Rewind tube 26. Pressing roller
7. Rear supporting beam 17. Cardboard tube 27. Nip roller safety shield
8. Film core adaptor/ brake 18. Top supply mandrel bracket 28. Top heat roller
9. Foot pedal 19. Temperature sensor
10. Fuse 20. Rear rewind assembly
