Installing Heat Tube
Warning: Do not attempt this with the power on!
10 A. Insert Heat tube
1. Remove gap Hand wheel from right side cover
2. Remove the right and left cabinet covers.
3. Remove left and right heater support brackets
4. Insert heat tube through the core of the roller, aligning
Ends with the flat spot in the supports
5. Replace left and right heater support brackets

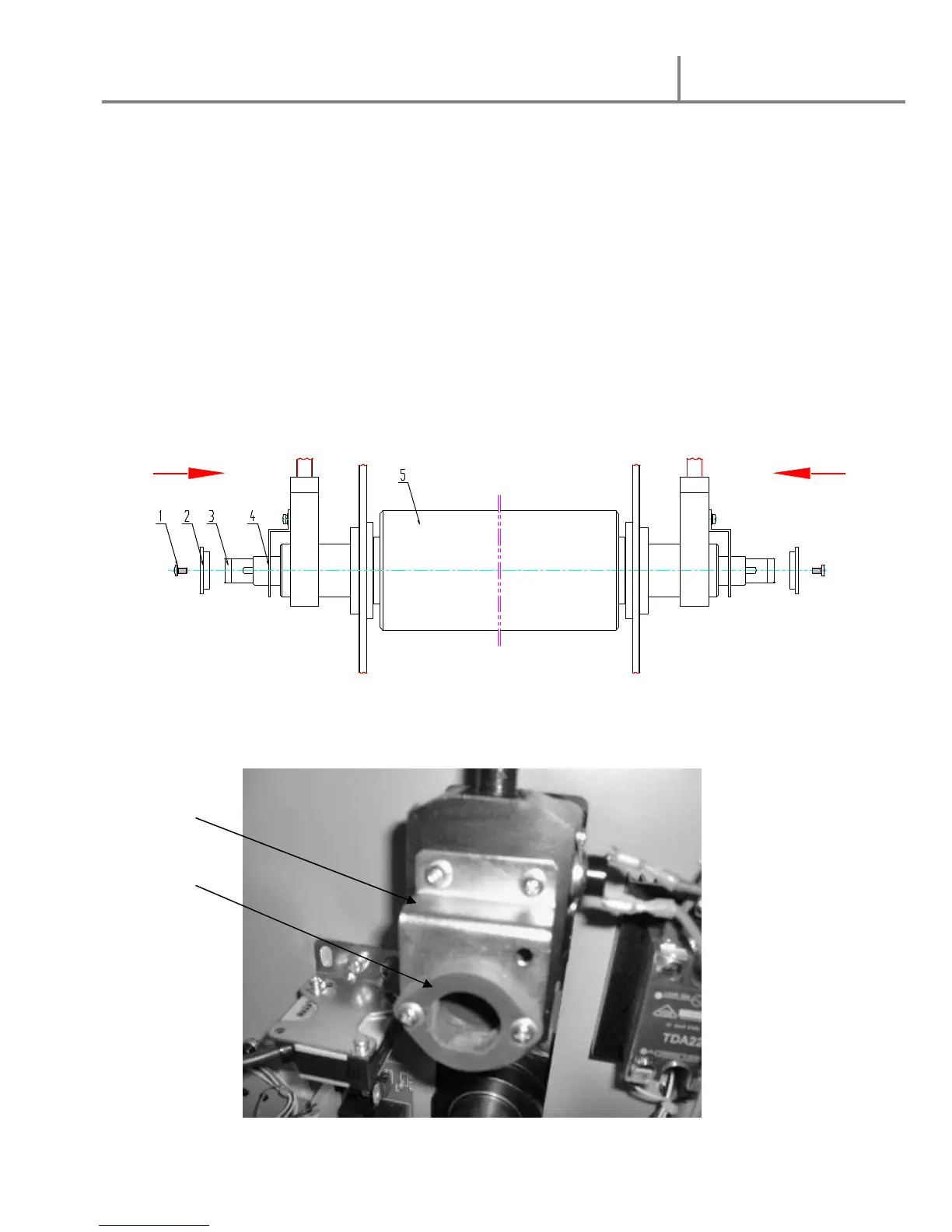

1. Screw 2. Rubber cushion 3. Heat tube 4. Support Bracket 5. Roller
