7. Control Panel

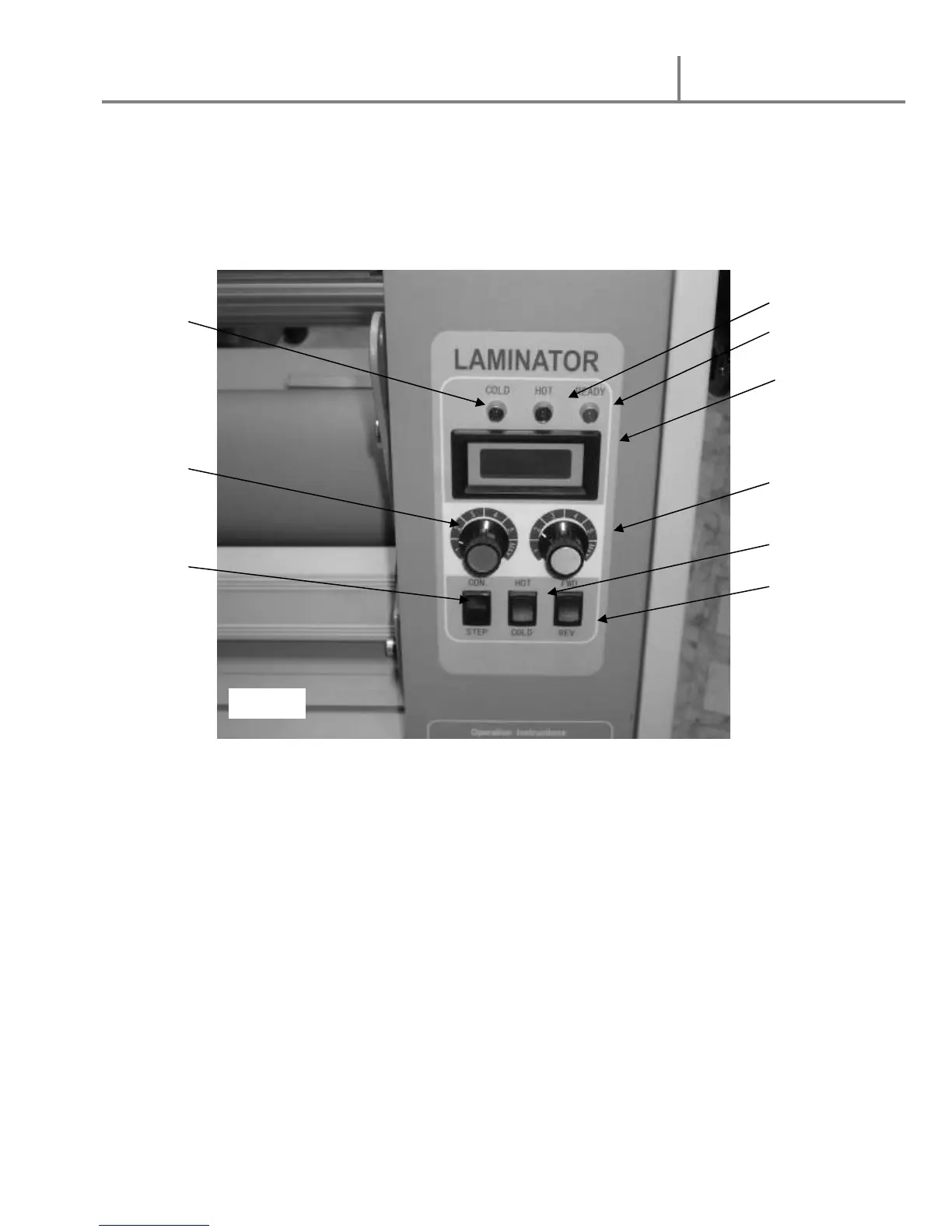

1. Cold laminating indicator 6. Hot / Cold heater switch
2. Hot laminating indicator 7. Forward / Reverse switch
3. Ready light indicator 8. Continuous/ foot pedal operation
4. Temperature display screen 9. Temperature adjustment
5. Speed adjustment
Note:
1. The machine does not have continuous reverse. Reverse can only operate using the pedal switch
2. If the photo-electric eye stops the machine, move operation switch to “Step” then back to
C
“continuous” operation.
