Lynx Gateway
RJ 11 Connector

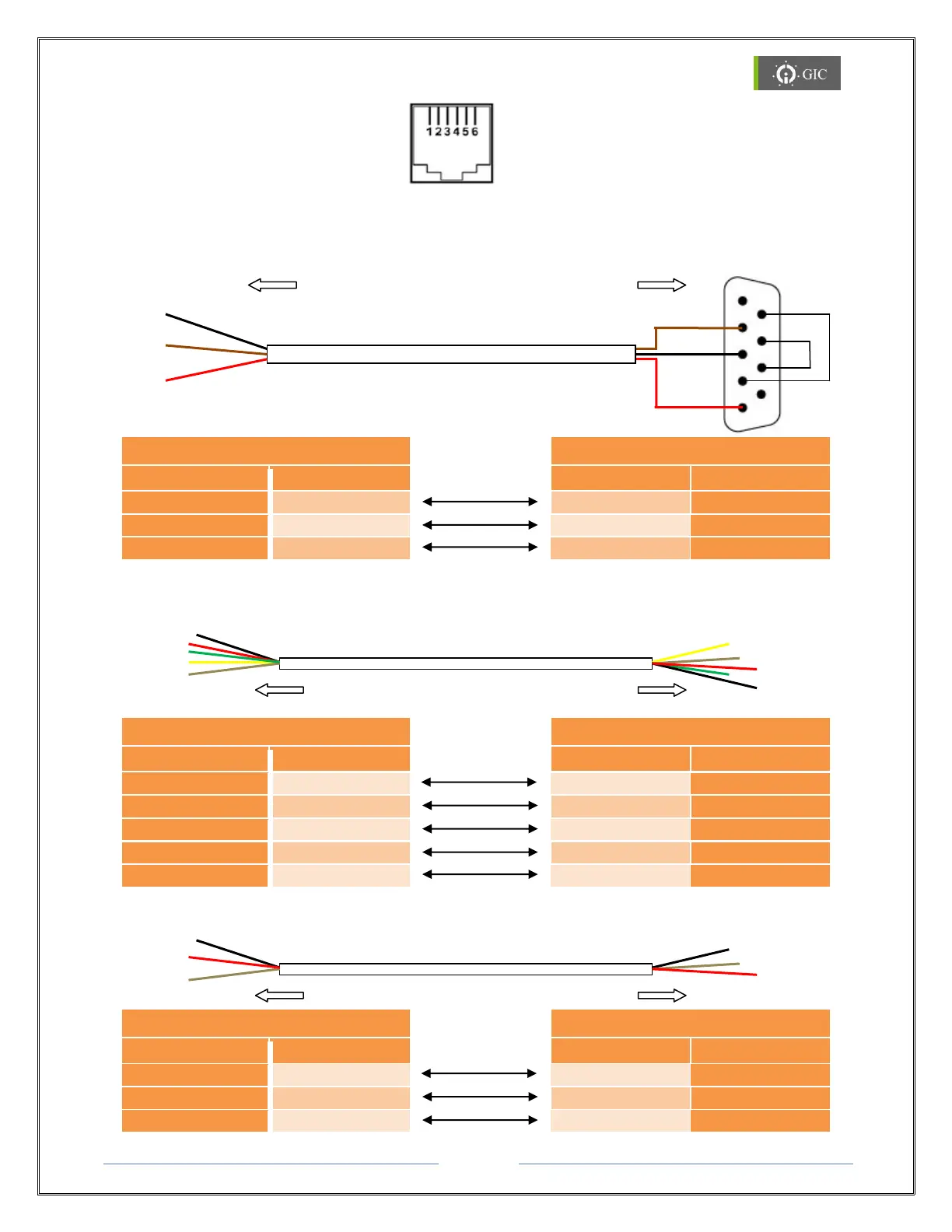

RS232 Cable Diagram:
Note: The above color code is only used for reference
RS422 Cable Diagram:
RS485 Cable Diagram:
From Lynx S2E
To Device
Signal
Color
Color
Signal
TXD
Brown
Brown
RXD
RXD
Black
Black
TXD
COM
Red
Red
COM
From Lynx S2E
To Device
Signal
Colour
Colour
Signal
TX+
Yellow
Yellow
RX+
TX-
Brown
Brown
RX-
RX+
Red
Red
TX+
RX-
Green
Green
TX-
COM
Black
Black
COM
From Lynx S2E
To Device
Signal
Colour
Colour
Signal
TX+
Red
Red
TX+
TX-
Brown
Brown
TX-
COM
Black
Black
COM
1
5
6
9
To PC / Device
RS 232 Port
DB9 Female
Pin Out
DSR
DTR
RTS
CTS
1
5
6
9
To Gateway
To Gateway
To Device RS 422 Port
To Gateway
To Device RS 485 Port
