2. Knowing the Product
The Lynx Gateway works on a 12 - 24 VDC supply. There are 2 serial ports (One RJ11 port
for RS 232 & screw terminals for RS 232/422/485) and one Ethernet port provided on the
device for connecting devices for communication. There is a Reset (RST) switch provided on
the device which serves different purposes. There are 7 LEDs indicating the transmission &
reception of data as well as the status of other signals and states.

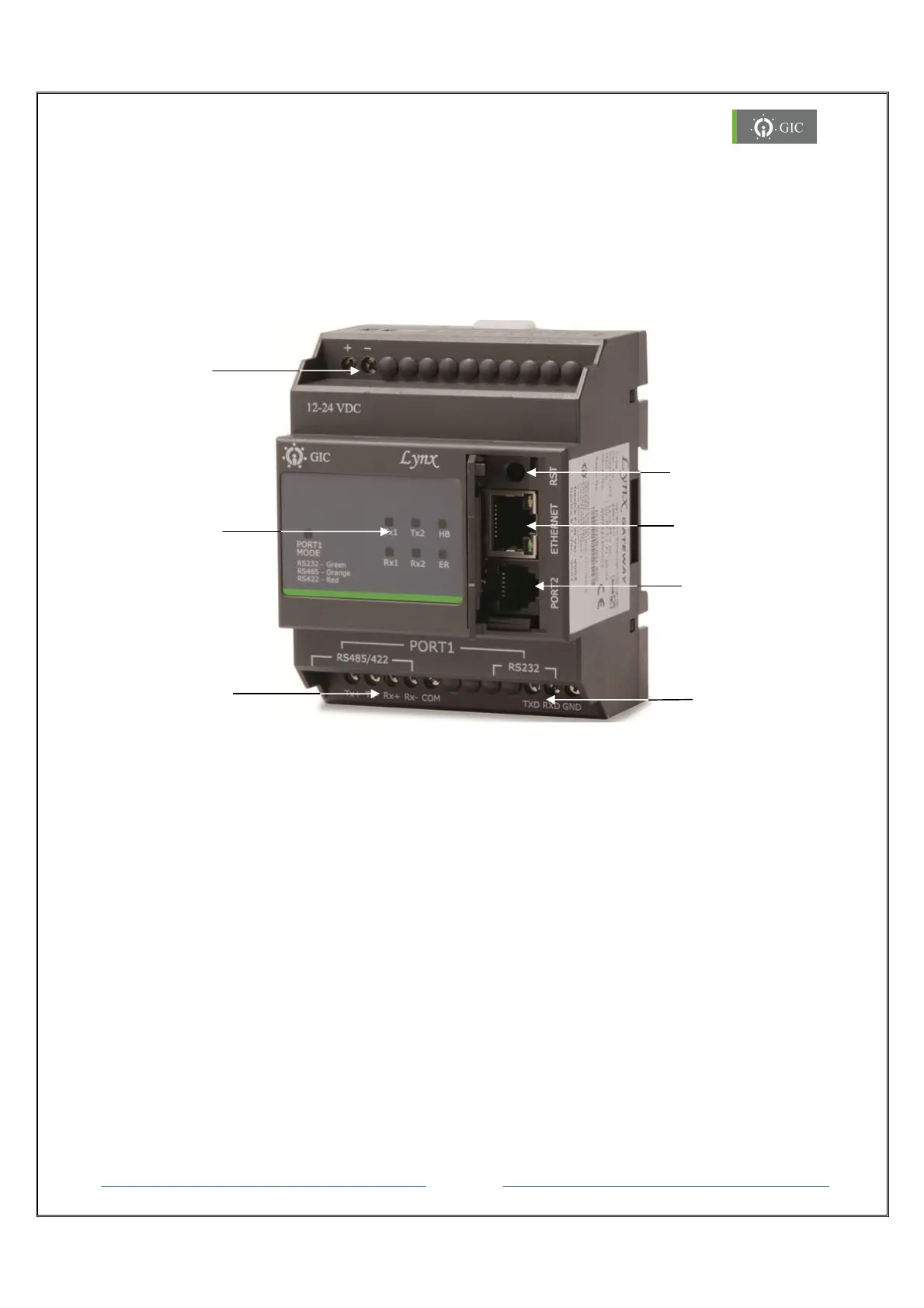

Power Supply
LED Indications
Serial Port 1
(RS 422/485)
Serial Port 2 (RJ 11)
Ethernet Port
Reset Switch
Serial Port 1
(RS 232)
