RJ 11 Connector

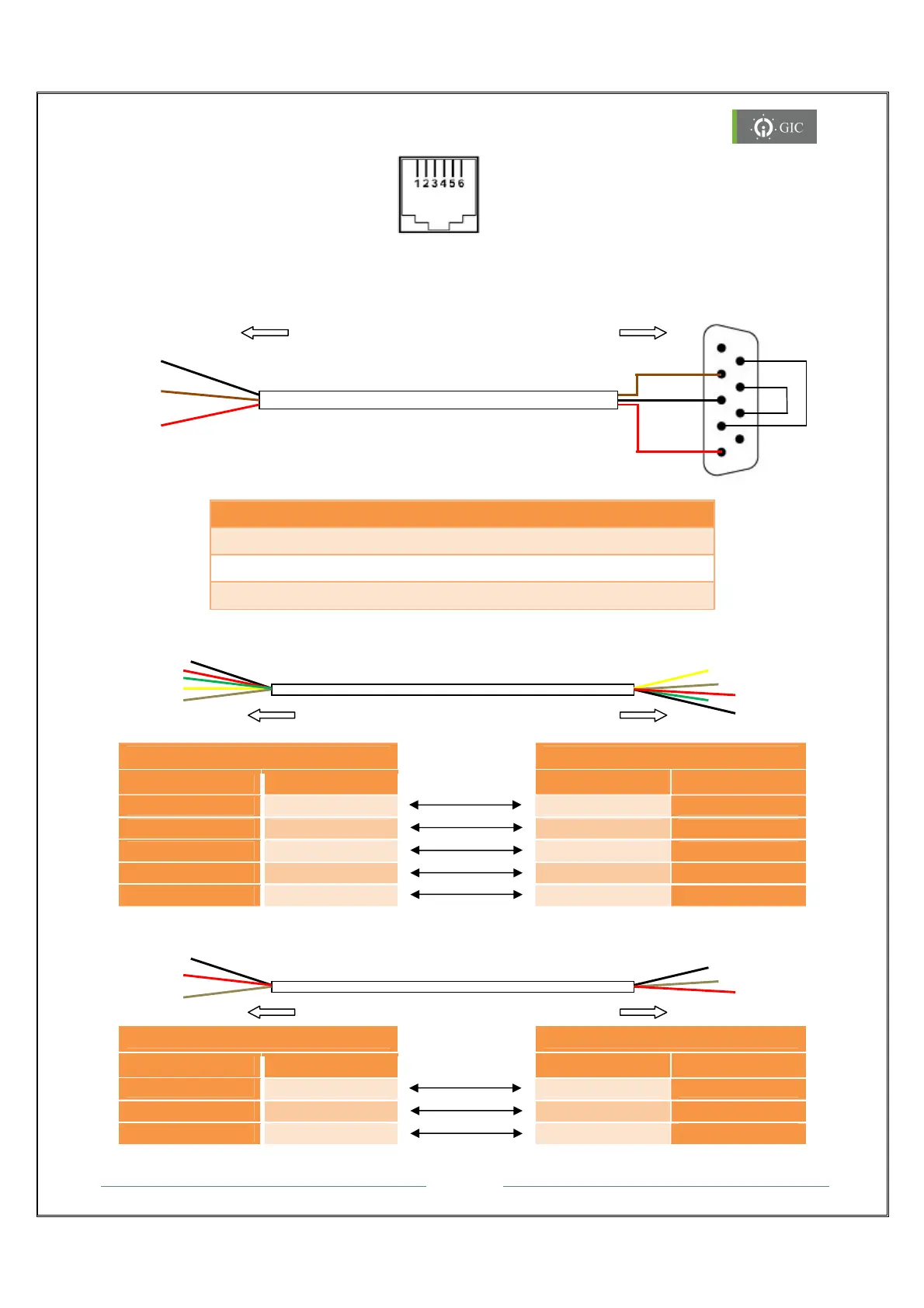

RS232 Cable Diagram:
Note: The above color code is only used for reference
Signals Pin No Colour
TXD 2 Brown
RXD 3 Black
GND 5 Red
RS422 Cable Diagram:
RS485 Cable Diagram:
From Lynx S2E To Device
Signal
Colour Colour
Signal
TX+ Yellow Yellow RX+
TX- Brown Brown RX-
RX+ Red Red TX+
RX- Green Green TX-
COM Black Black COM
From Lynx S2E To Device
Signal
Colour
Colour
Signal
TX+ Red Red TX+
TX- Brown Brown TX-
COM
Black
Black
COM
1
5
6
9
To PC / Device
RS 232 Port
DB9 Female
Pin Out
DSR
DTR
RTS
CTS
1
5
6
9
To
Gateway
To
Gateway
To Device RS 422 Port
To
Gateway
To Dev
ice RS 485 Port
