3-1 Removing Chassis Cover
Before you remove or install the system cover
• Make sure the system is not turned on or connected to AC power.

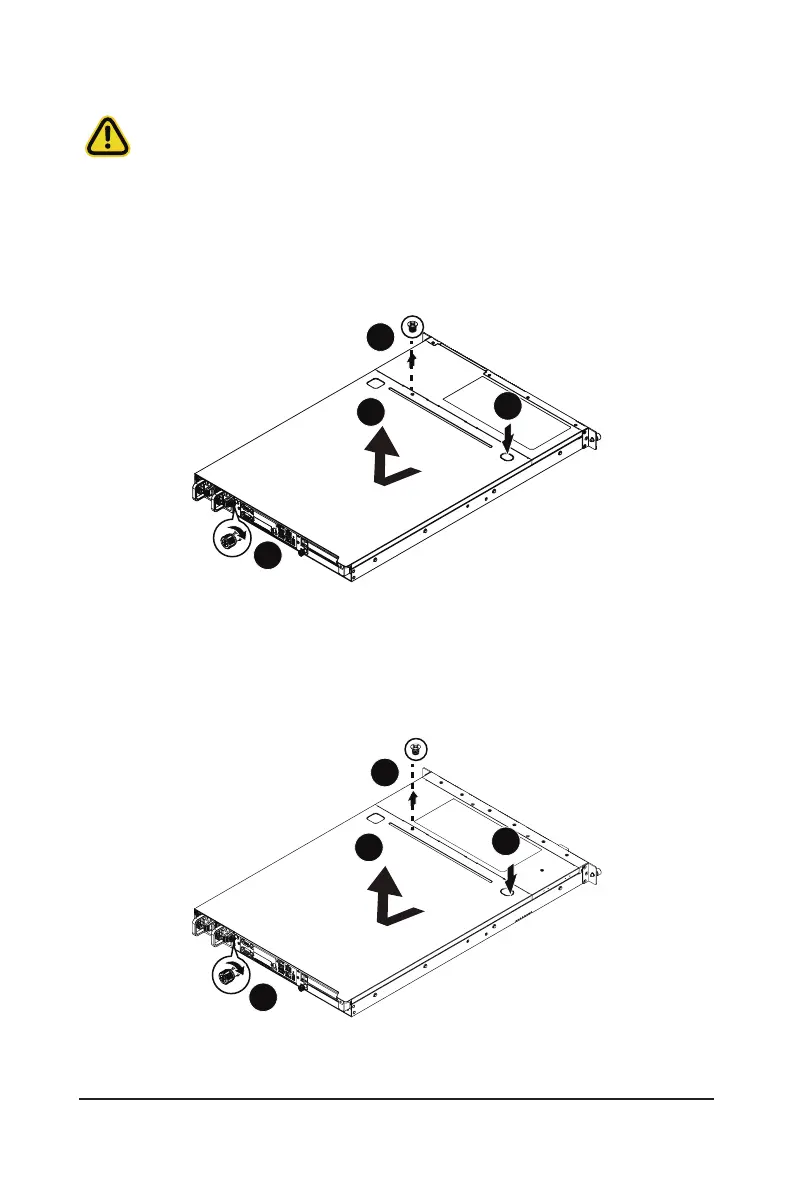

Follow these instructions to remove the rear system cover:
1. Loosen and remove the thumbscrew securing the back cover.
2. Push down the indentation located at the side of the back chassis
3. Slide the cover horizontally to the back and remove the cover in the direction of the arrow.
2
3
1
4
Follow these instructions to remove the front system cover:
1. Remove the ve screws securing the front system cover to the system.
2. Flip open the front system cover.
2
3
1
4
