- 35 - System Hardware Installation
3-7 Installing the Mezzanine Card (Optional)

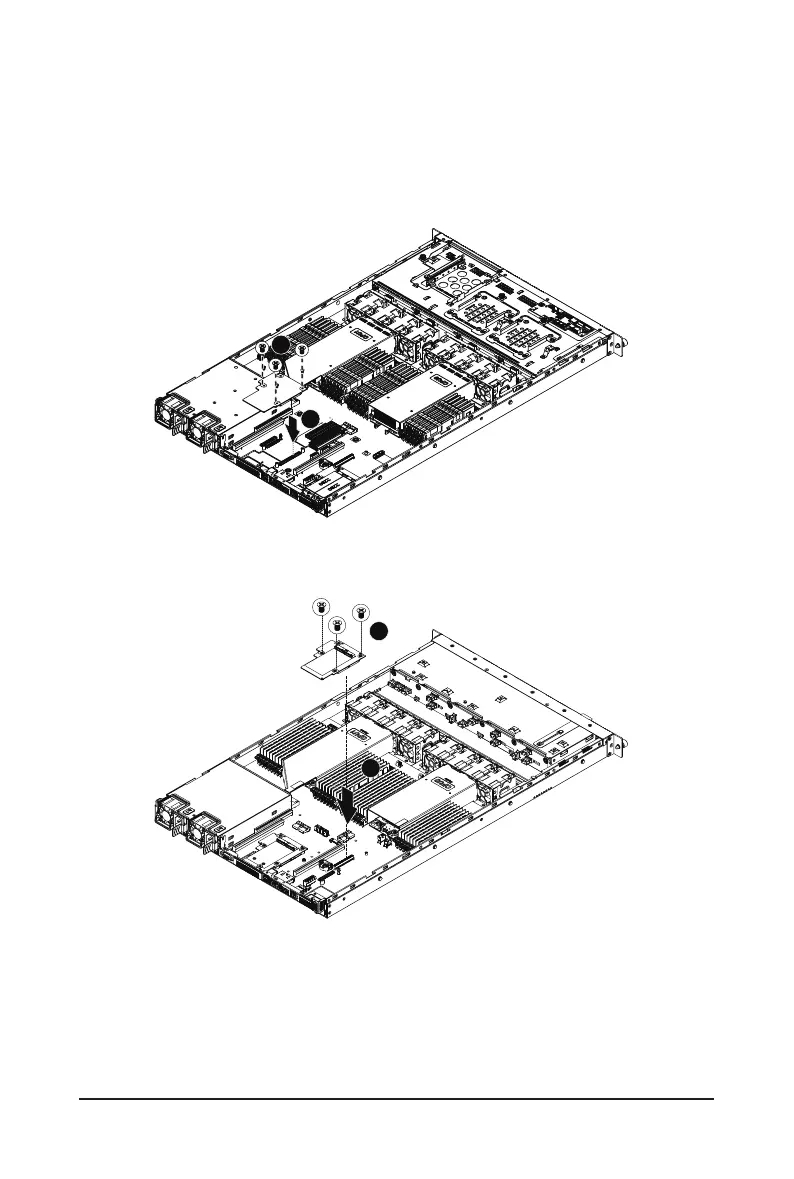

Follow these instructions to install a mezzanine card:
1. Insert the mezzanine card into the system ensuring that the connector on the mezzanine card
connects to the connector on the motherboard.
2. Secure the mezzanine card to the system with three screws.
1
2
R152-Z30
R152-Z31/R152-Z32
1
2
To Next Page
