System Hardware Installation - 36 -

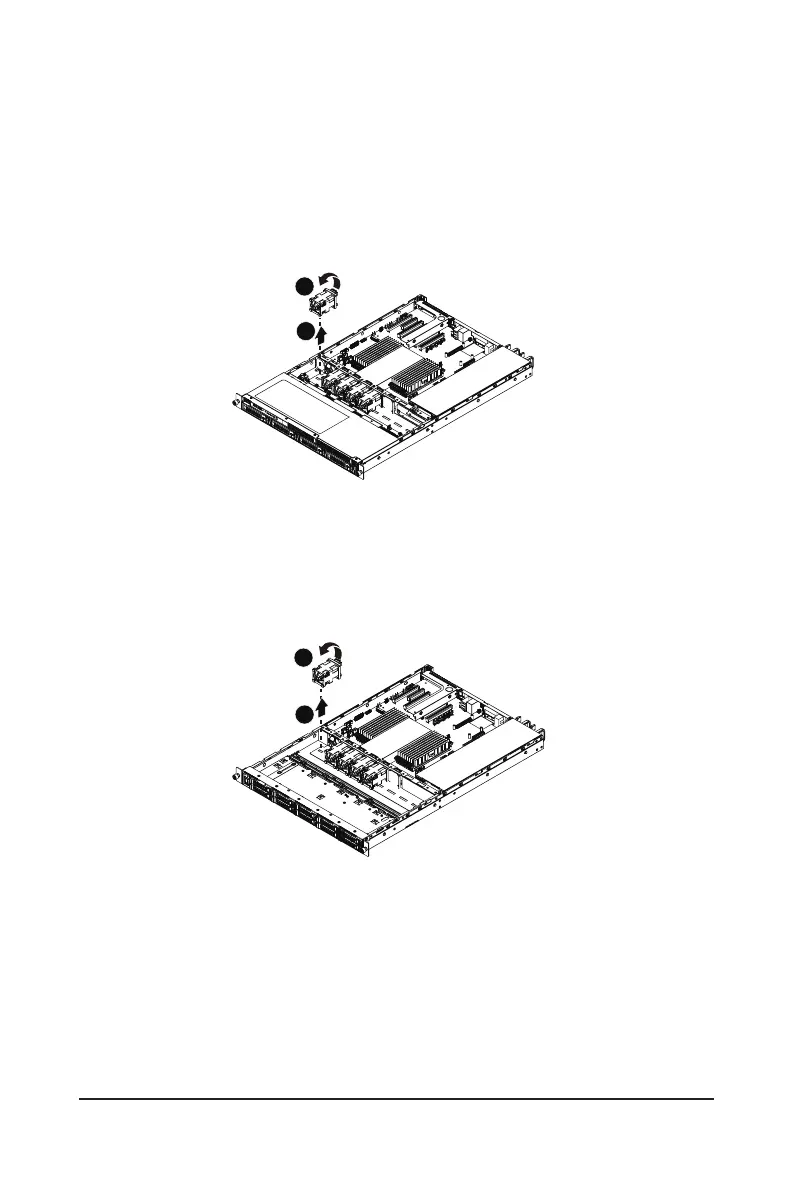

3-8 Replacing the FAN Assemblly
Follow these instructions to replace the fan assembly:
1. Lift up the fan assembly from the chassis.
2. Reverse the previous steps to install the replacement fan assembly.
R152-Z30
R152-Z31/R152-Z32
1
2
1
2
