Gigabyte GA-F2A85X-UP4 User Manual

- 31 -
Hardware Installation

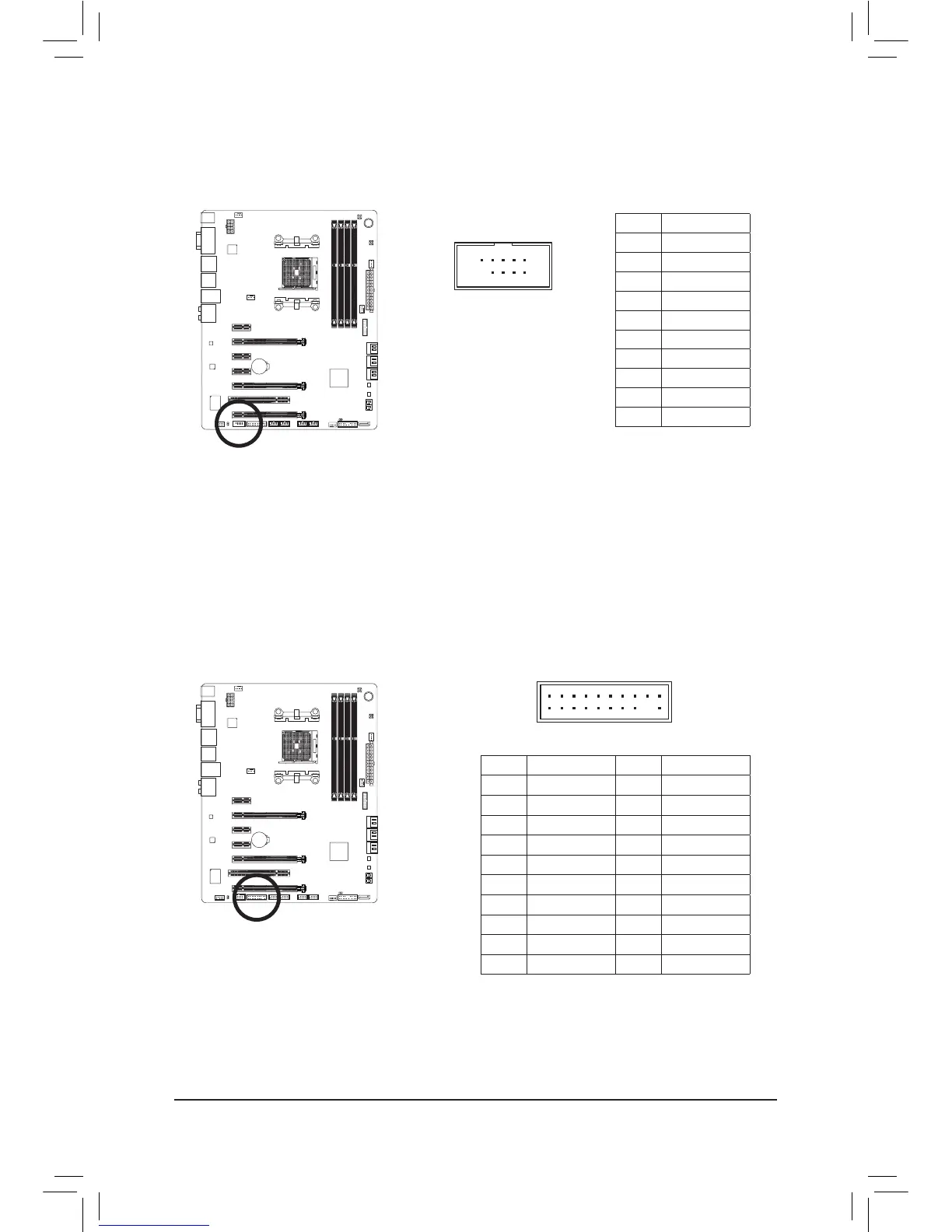

13) COM (Serial Port Header)
The COM header can provide one serial port via an optional COM port cable. For purchasing the optional
COM port cable, please contact the local dealer.
10
9
2
1
Pin No. Denition
1 NDCD-
2 NSIN
3 NSOUT
4 NDTR-
5 GND
6
NDSR-
7 NRTS-
8 NCTS-
9 NRI-
10 No Pin
20
19
2
1
F_USB30
F_AUDIO(H)
DB_PORT
F_PANEL(NH) F_PANEL
(H61M-D2)
ACPI_CPT
(GA-IVB)
BIOS_PH
(GA-IVB)
SMB_CPT
(GA-IVB)
CLR_CMOS
CI
DIS_ME
GP15_CPT
(GA-IVB)
XDP_CPU
XDP_PCH
(GA-IVB)
TPM
w/housing
Voltage measurement module(X58A-OC)
PCIe power connector (SATA)(X58A-OC)
DIP
123
DIP
123
DIP
123
DIP
123
1
1
1
1
BIOS Switcher (X58A-OC)
PWM Switch (X58A-OC)
M_SATA
PWM Switch (SW1)(X79-UD7)
DIP
1 2 3 4 5
Voltage measurement points(G1.Sniper 3)
BIOS Switcher (SW4)
14) TPM (Trusted Platform Module Header)
 YoumayconnectaTPM(TrustedPlatformModule)tothisheader.
Pin No. Denition Pin No. Denition
1 LCLK 11 LAD0
2 GND 12 GND
3 LFRAME 13 NC
4 No Pin 14 ID
5 LRESET 15 SB3V
6 NC 16 SERIRQ
7 LAD3 17 GND
8 LAD2 18 NC
9 VCC3 19 NC
10 LAD1 20 SUSCLK

Gigabyte GA-F2A85X-UP4 Specifications

General

Memory voltage	1.5 V
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	4
Supported memory types	DDR3-SDRAM
Maximum internal memory	64 GB
Supported memory clock speeds	1066, 1333, 1600, 1866 MHz
Processor socket	-
Processor manufacturer	AMD
Compatible processor series	AMD Athlon
Power fan connector	Yes
Number of SATA III connectors	7
USB 3.2 Gen 1 (3.1 Gen 1) connectors	1
USB 2.0 ports quantity	2
Firewire (IEEE 1394) ports	0
Audio chip	Realtek ALC892
Component for	PC
Motherboard chipset	AMD A85X
Audio output channels	7.1 channels
Motherboard form factor	ATX
Supported storage drive interfaces	SATA III
PCI Express x1 slots	3
Ethernet interface type	Gigabit Ethernet
BIOS type	AMI

Weight and Dimensions

Depth	244 mm
Width	305 mm
