Hardware Installation
- 32 -
15/16/17) PW_SW/ RST_SW/ CMOS_SW (Quick Buttons)
This motherboard has 3 quick buttons: power button, reset button and clear CMOS button. The power but-
ton and reset button allow users to quickly turn on/off or reset the computer in an open-case environment
when they want to change hardware components or conduct hardware testing. Use this button to clear
theCMOSvalues(e.g.dateinformationandBIOSconguration)andresettheCMOSvaluestofactory
defaults when needed.
• Always turn off your computer and unplug the power cord from the power outlet before clearing
the CMOS values.
• Aftersystemrestart,gotoBIOSSetuptoloadfactorydefaults(selectLoadOptimizedDefaults)or
manuallyconguretheBIOSsettings(refertoChapter2,"BIOSSetup,"forBIOScongurations).

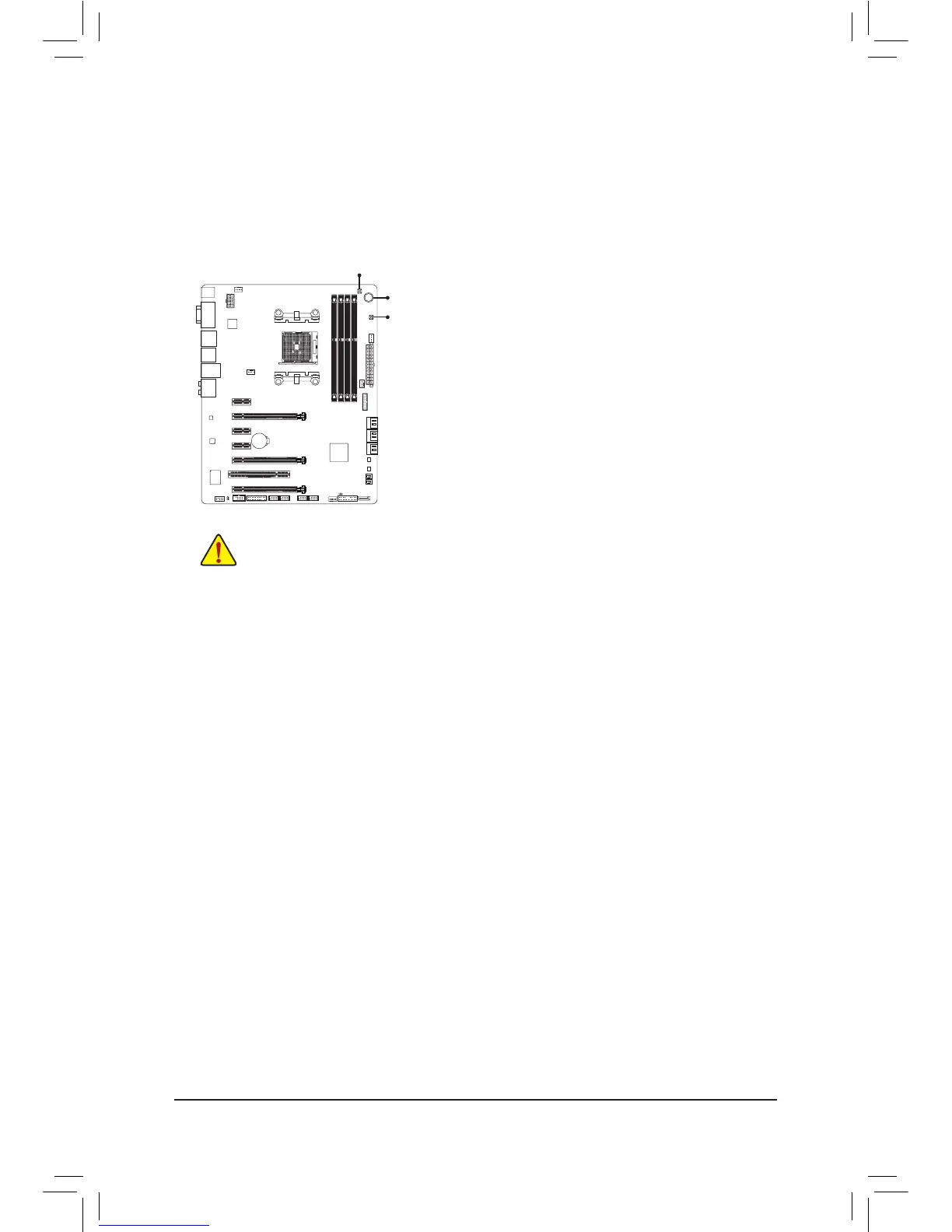

PW_SW:Powerbutton
RST_SW:Resetbutton
CMOS_SW:ClearCMOSButton
CMOS_SW
PW_SW
RST_SW

Gigabyte GA-F2A85X-UP4 Specifications

General

Memory voltage	1.5 V
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	4
Supported memory types	DDR3-SDRAM
Maximum internal memory	64 GB
Supported memory clock speeds	1066, 1333, 1600, 1866 MHz
Processor socket	-
Processor manufacturer	AMD
Compatible processor series	AMD Athlon
Power fan connector	Yes
Number of SATA III connectors	7
USB 3.2 Gen 1 (3.1 Gen 1) connectors	1
USB 2.0 ports quantity	2
Firewire (IEEE 1394) ports	0
Audio chip	Realtek ALC892
Component for	PC
Motherboard chipset	AMD A85X
Audio output channels	7.1 channels
Motherboard form factor	ATX
Supported storage drive interfaces	SATA III
PCI Express x1 slots	3
Ethernet interface type	Gigabit Ethernet
BIOS type	AMI

Weight and Dimensions

Depth	244 mm
Width	305 mm
