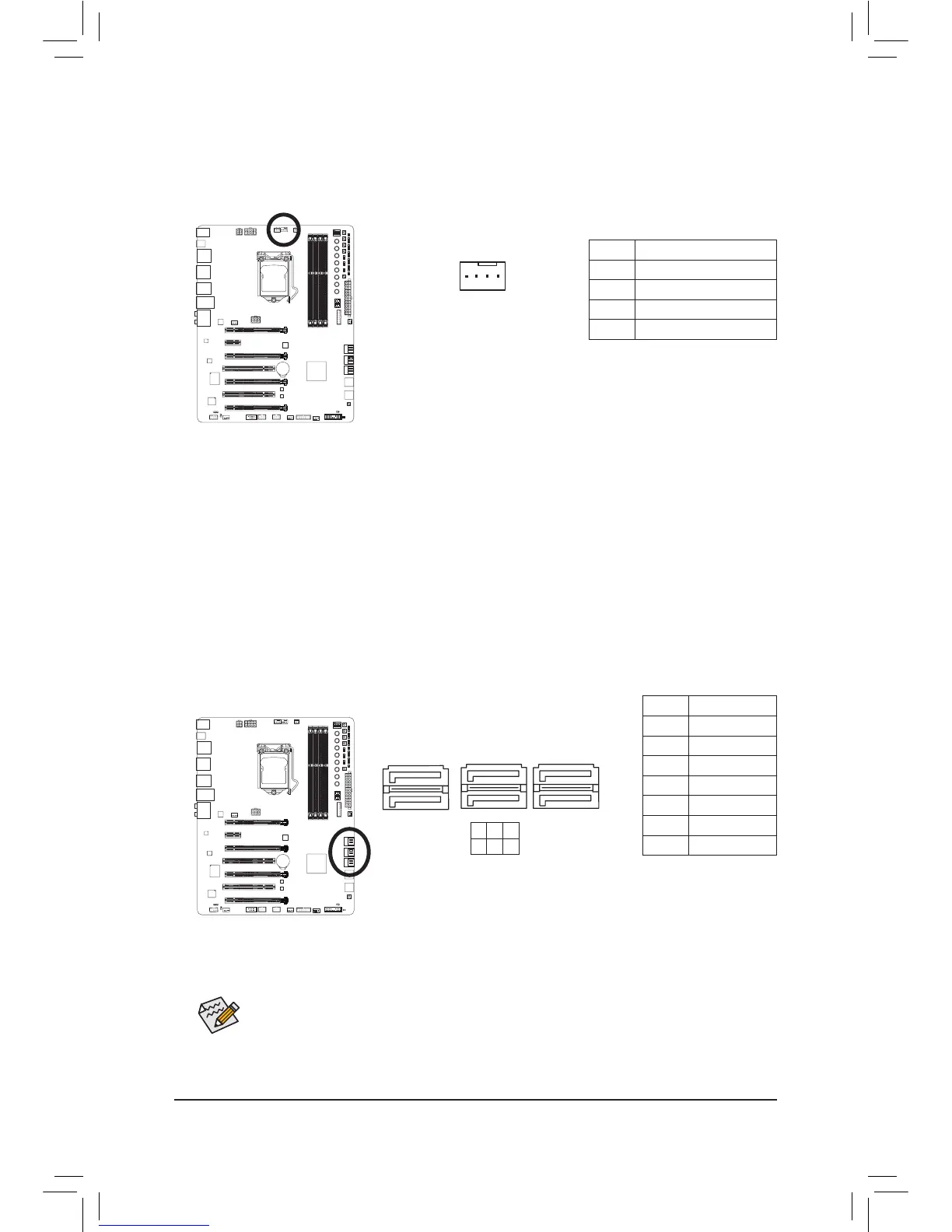

6) CPU_OPT(WaterCoolingCPUFanHeader)
The fan header is 4-pin and possesses a foolproof insertion design. When connecting a fan cable, be sure
to connect it in the correct orientation (the black connector wire is the ground wire). The speed control
function requires the use of a fan with fan speed control design.
Pin No. Denition
1 GND
2 +12V /Speed Control
3 Sense
4 VCC
5 3 1
4 2 0
7) SATA30/1/2/3/4/5(SATA6Gb/sConnectors)
The SATA connectors conform to SATA 6Gb/s standard and are compatible with SATA 3Gb/s and SATA
1.5Gb/s standard. Each SATA connector supports a single SATA device. The Intel
®
Z87 Chipset supports
RAID 0, RAID 1, RAID 5, and RAID 10. Refer to Chapter 3, "Conguring SATA Hard Drive(s)," for instructions
on conguring a RAID array.
7
1
7
1
Pin No. Denition
1 GND
2 TXP
3 TXN
4 GND
5 RXN
6 RXP
7 GND
SATA3
DIP
1 23
4
DIP
1 23
4
• A RAID 0 or RAID 1 conguration requires at least two hard drives. If more than two hard drives
are to be used, the total number of hard drives must be an even number.
• A RAID 5 conguration requires at least three hard drives. (The total number of hard drives does
not have to be an even number.)
• A RAID 10 conguration requires four hard drives.
