4.2 State transformations
The camera goes idle automatically after power-up. The diagram below shows
the state transitions between the different camera states.

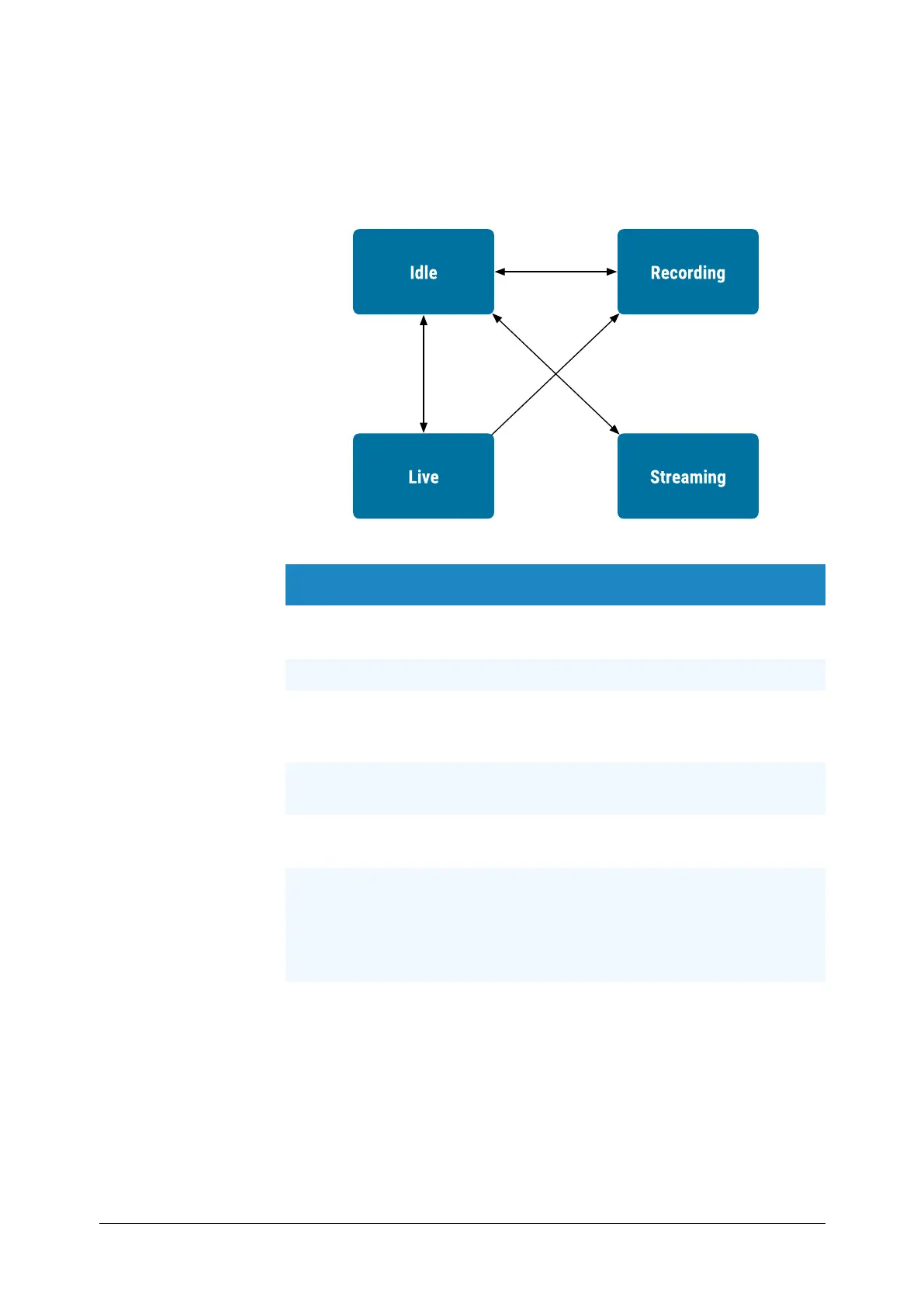

Fig.: 4-1: Possible state transitions
Transition Precondition Transition trigger
IDLE ð LIVE AcquisitionSource =
Live
AcquisitionStart
LIVE ð IDLE -- AcquisitionStop
IDLE ð
RECORDING

-- RecordStart or trigger button on
camera
RECORDING
ðIDLE
-- RecorStop or trigger on last
sequence.
LIVE ð
RECORDING
-- RecordStart or trigger button on
camera
IDLE ð
STREAMING
AcquisitionSource =
Memory
AcquisitionStart and
StreamSequencesStart
or
AcquisitionStart and
StreamSingleFrame
STREAMING ð
IDLE
-- AcquisitionStop or transmission
is finished
