• TPS RESET
• CALIBRATION
• ECU INFORMATION

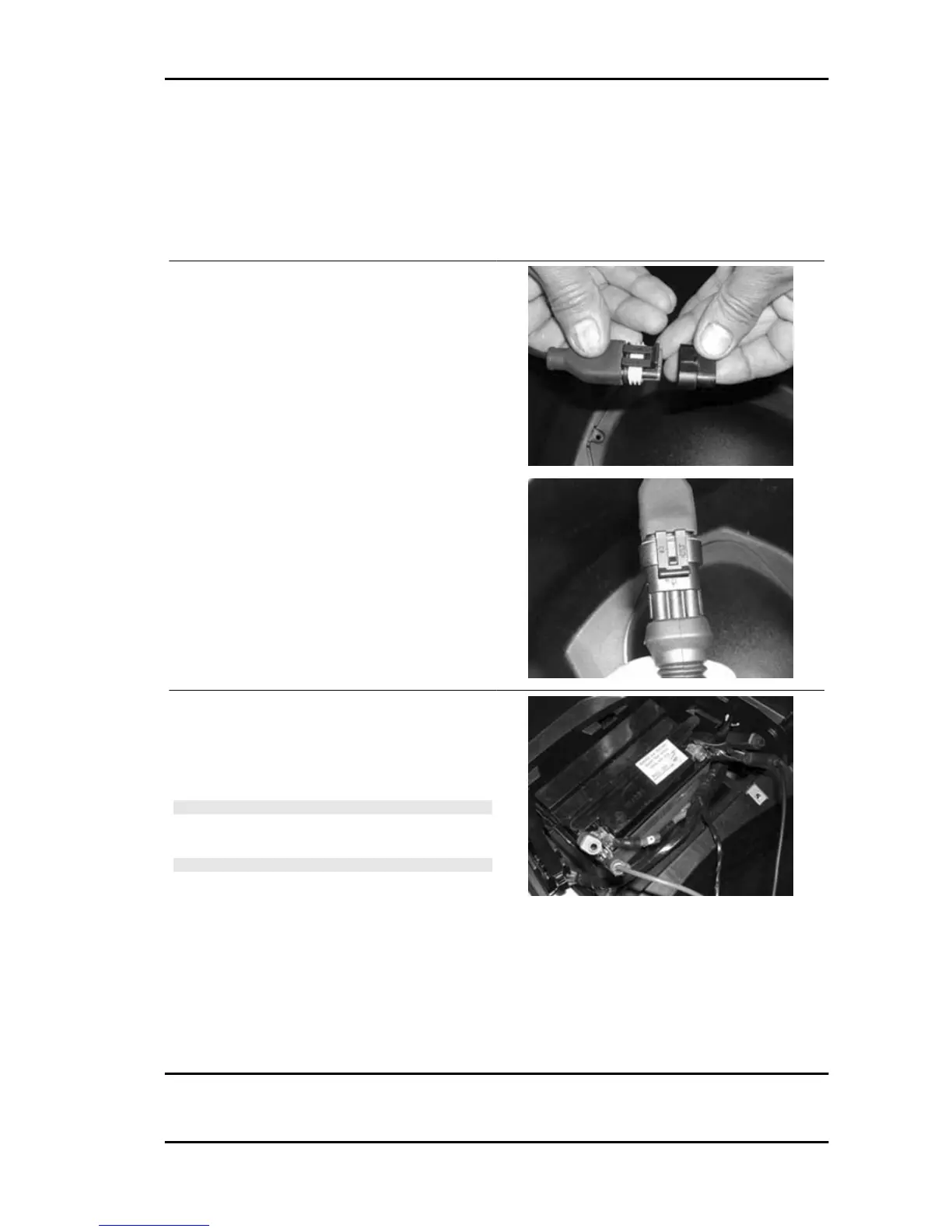

To access the individual functions, the tester must be connected to the vehicle diagnostic outlet and
the ECU must be on.
• To connect the scooter diagnostic tester, raise
the seat
• Remove the battery cover
• Remove the cover from the diagnostics plug
• Connect it to the diagnostic tester wiring
• Connect the power supply cable with battery ter-
minals to the diagnostic tester
• Connect the terminals to the battery respecting
the polarity: RED (+) - BLACK (-)
N.B.
FAILURE TO DO SO MAY PERMANENTLY IM-
PAIR THE DIAGNOSTIC TESTER
N.B.
IF THE VEHICLE BATTERY IS USED, THERE IS
NO NEED TO ATTACH THE BLACK TERMINAL
TO THE NEGATIVE TERMINAL ON THE BAT-
TERY.
• To disconnect the tester, remove the terminals from the battery
• Remove the connector from the diagnostic outlet
• Reapply the protection cap to the diagnostic outlet to prevent dirt from depositing on the contacts
• Refit the battery cover
Runner Purejet pure jet injection
INJ PJ - 7
