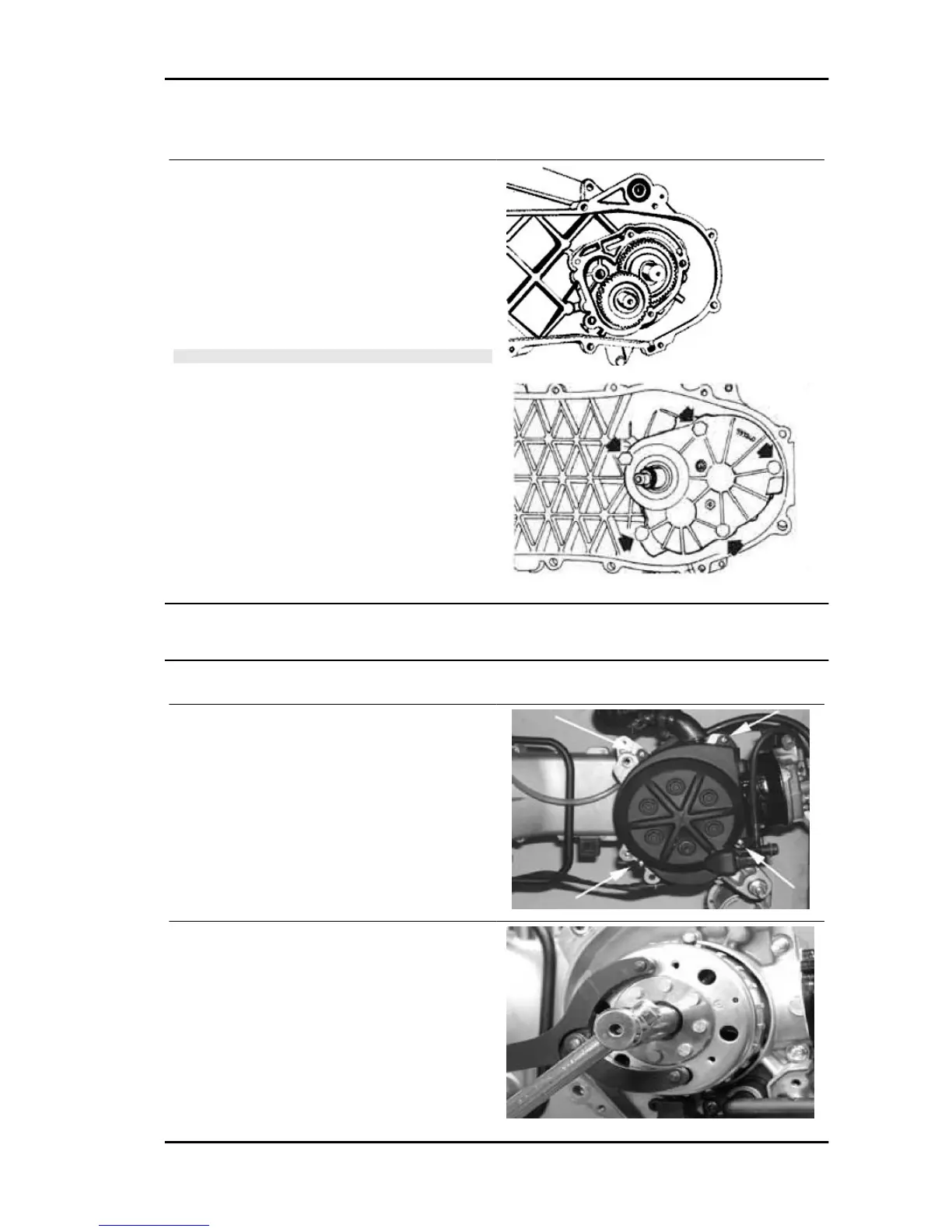

Refitting the ub cover
• Refit the complete wheel axis.
• Refit the intermediate gear being careful of the
two shim adjustments.
• Apply LOCTITE 510 for surfaces on the hub cov-
er and refit it with the complete pulley shaft.
• Insert the 5 screws and tighten them to the pre-
scribed torque.
N.B.
CLEAN THE CONTACT SURFACES OF THE
HUB COVER AND THE HALF CRANKCASE OF
RESIDUE FROM PREVIOUS GASKETS BE-
FORE APPLYING A NEW ONE.
Locking torques (N*m)
Locking torque: 11 to 13 Nm
Flywheel cover
Removing the stator
- Remove the flywheel cover.
• Use a specific compass wrench and a 15 mm
Allen wrench to remove the flywheel lock-nut.
Specific tooling
020565Y Flywheel lock calliper spanner
Runner Purejet Engine
ENG - 15
