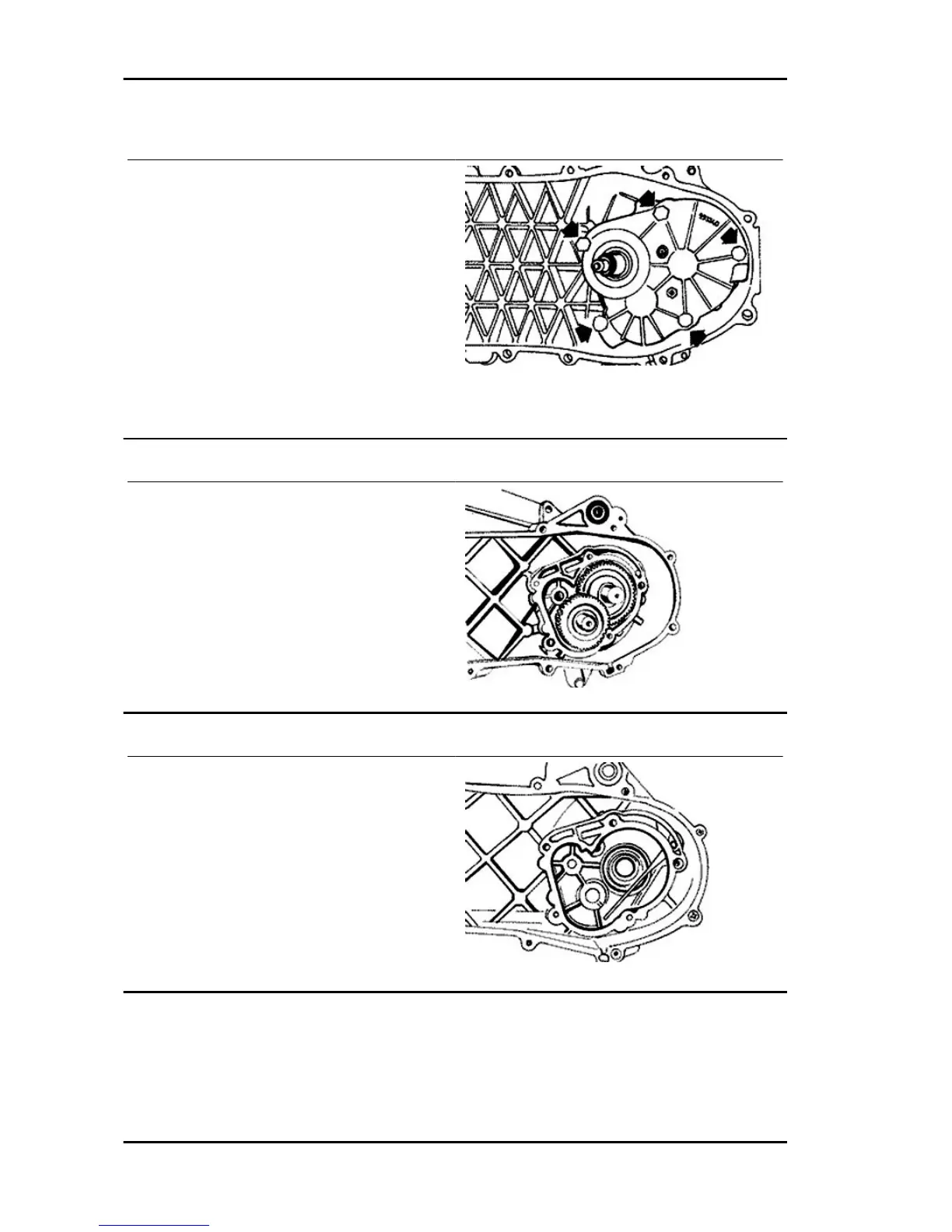

Removing the hub cover
• Remove the transmission cover
• Remove the clutch assembly
• Discharge the rear hub oil.
• Remove the 5 screws indicated in the figure.
• Remove the hub cover with driven pulley shaft.
See also
Refitting the clutch
Removing the wheel axle
- Remove the intermediate gear and the complete
gear wheel axle.
- When removing the intermediate gear pay atten-
tion to the various shim adjustments.
Removing the wheel axle bearings
- Remove the oil seal and the seeger ring.
- Remove the bearing by pushing from the outside
towards the inside of the gear compartment, using
the appropriate punch.
Specific tooling
020363Y 20 mm guide
020376Y Adaptor handle
020358Y 37x40-mm adaptor
