In case of replacement, proceed as follows:
- Using a bearing removal punch, inserted from the
bottom, remove the top seat on the steering head.
Then, remove the bottom seat of the tapered bear-
ing inserting the punch from the top of the head-
stock.
Specific tooling
020004Y Punch for removing fifth wheels from
headstock

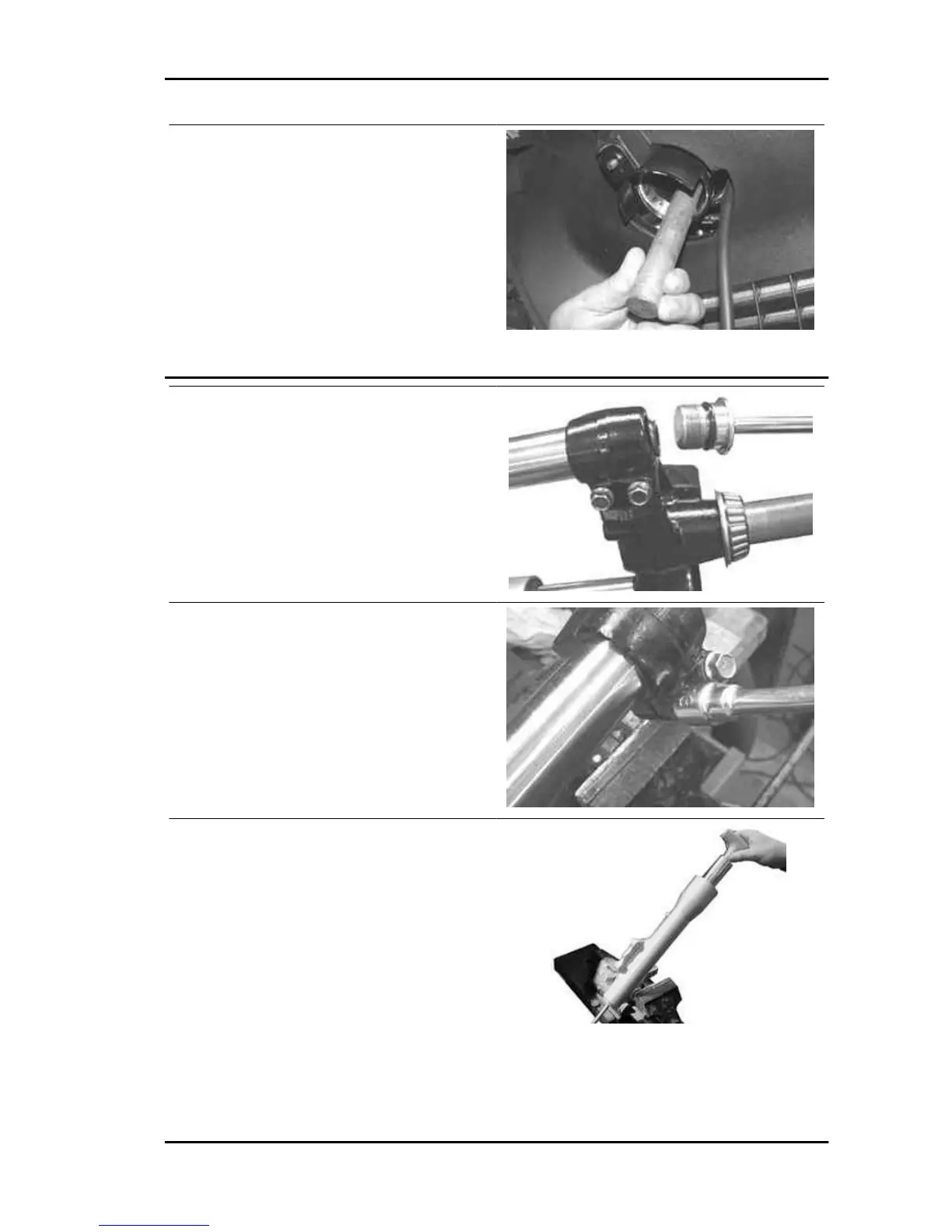

Servicing fork stems
- Using an inside 17 mm hexagonal spanner, loos-
en the top stem closing cap.
- Loosen the stem support clamp and remove fork
leg and stem.
- Remove the spring.
- Drain the oil.
- Remove the screw with copper washer shown in
the figure. To prevent the pumping member rota-
tion, insert an inside 22 mm hexagon spanner into
the stem.
- Remove the pumping member.
Nexus 500 euro 3 Suspensions
SUSP - 295
