Seat opening receiver

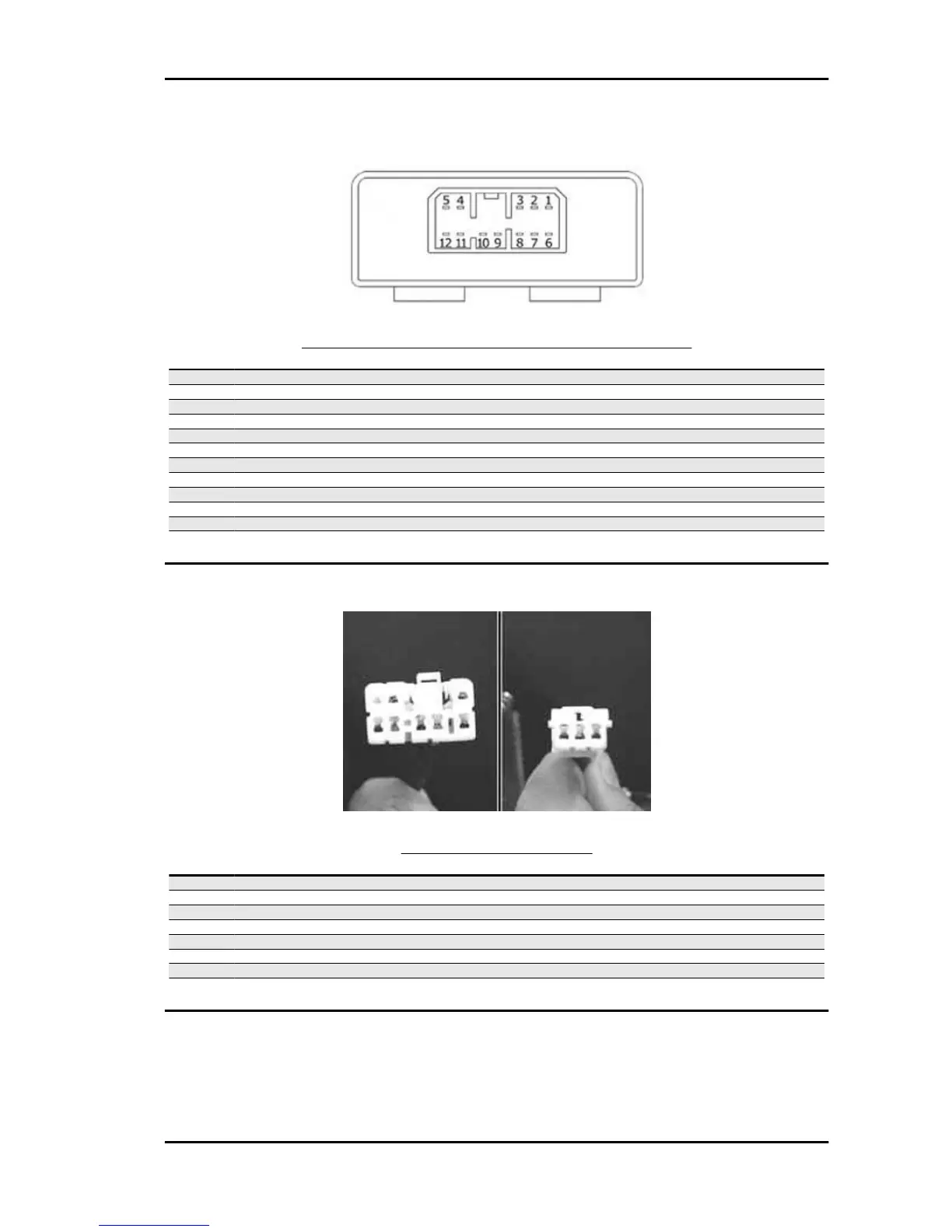

RECEIVER CONTROL UNIT FOR SADDLE OPENER
Specification Desc./Quantity
1 Radio aerial
2 Actuator positive output 1
3 Reset / Input clearing
4 Battery positive
5 (Not connected)
6 Live positive lead
7 Ground lead
8 (Not connected)
9 (Not connected)
10 Selection input CH1 / CH3
11 Positive output actuator 1
12 Data for alarm output
Immobiliser decoder
IMMOBILIZER DECODER
Specification
Desc./Quantity
1 -
2 Immobilizer LED control (negative)
3 Base power supply (positive)
4 Negative
5 -
6 Electronic control unit EMS (serial)
7 -
8 Continuous power supply (positive) Immobilizer aerial
Nexus 500 euro 3 Electrical system
ELE SYS - 73
