Engine rev. sensor
REV SENSOR
Specification Desc./Quantity
1 M: Male
2 F: Female
3 S: Shielding
Dashboard

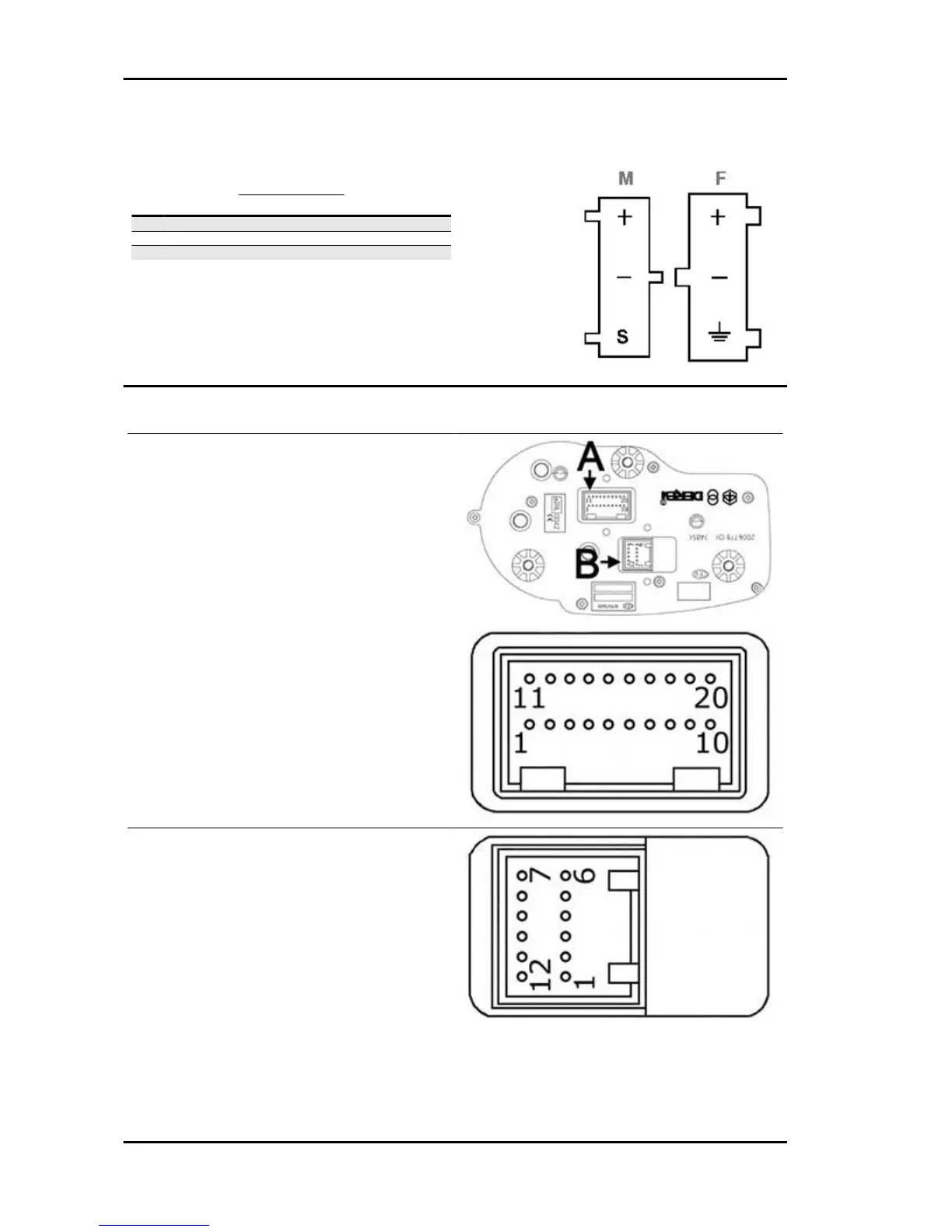

The instrument panel is provided with two connec-
tors ("A" with 20 pins and "B" with 12 pins) shown
in the figure.
Connector "A"
KEY:
1. Wheel sensor (+)
2. Wheel sensor signal
3. Wheel sensor (-)
4. Lights
5. Engine rpm signal
6.Water temperature
7.Water temperature (-)
8. Oil pressure
9. Right turn indicator
Electrical system Nexus 500 euro 3
ELE SYS - 74
