ASPEC® POSITIVE PRESSURE MANIFOLD | USER'S GUIDE
INTRODUCTION

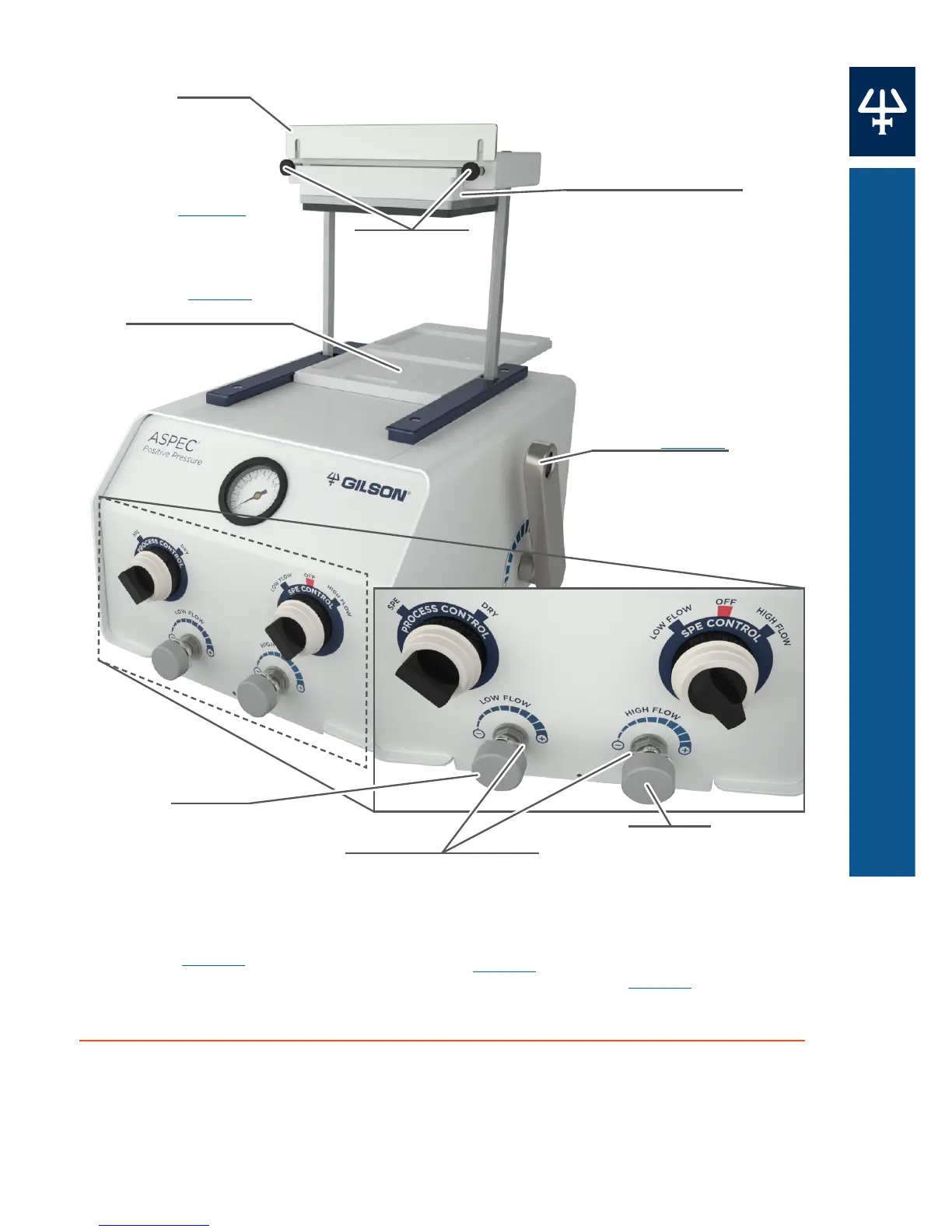

Figure 2
Standard Components of the ASPEC™ Positive Pressure Manifold without Shield
Flow Adjustment Locks
Used to lock in flow
adjustments made with the
low and high flow regulator
knobs. Refer to page 13.
High Flow
Adjustment Knob
Used to fine tune flow
when High Flow is
selected on the SPE
control dial. Refer to
page 13.
Low Flow
Adjustment Knob
Used to fine tune
flow when Low Flow
is selected on the
SPE control dial.
Refer to page 13.
Manifold
Positioning Lever
Raises and lowers the
manifold over the SPE
cartridge holder. The
manifold locking level
must be unlocked to
move this lever.
Refer to page 14.
Locator Plate
Refer to page 14 for a
detailed description.
Thumbscrews
Manifold
Retaining Clip
Holds the manifold
in place. Refer to
page 20.
Manifold
Available in three
configurations: 15- or
24-cartridge holders and
96-well plate holders.
