Chapter 2 G10 Survey System
The first chapter has introduce the company and innovation of G10. But they are
all brief. In this chapter, it will show the detailed information of G10, such as
appearance, accessories and some basic operation.
2.1 G10 mainframe
The mainframe of G10 is a flat cylindrical, 144mm in height, 140mm in diameter.
The front side is a LED screen, 2 functional buttons and 6 indicators. The back side is a
battery compartment. In the compartment, there are two slots, one for SIM card
another for Micro SD card.
The bottom of the receiver is some interfaces. They include a radio antenna
interface, a GSM antenna interface, a 5 pin external power interface and a 7 pin
RS232/USB interface.
2.1.1 Front side of the mainframe

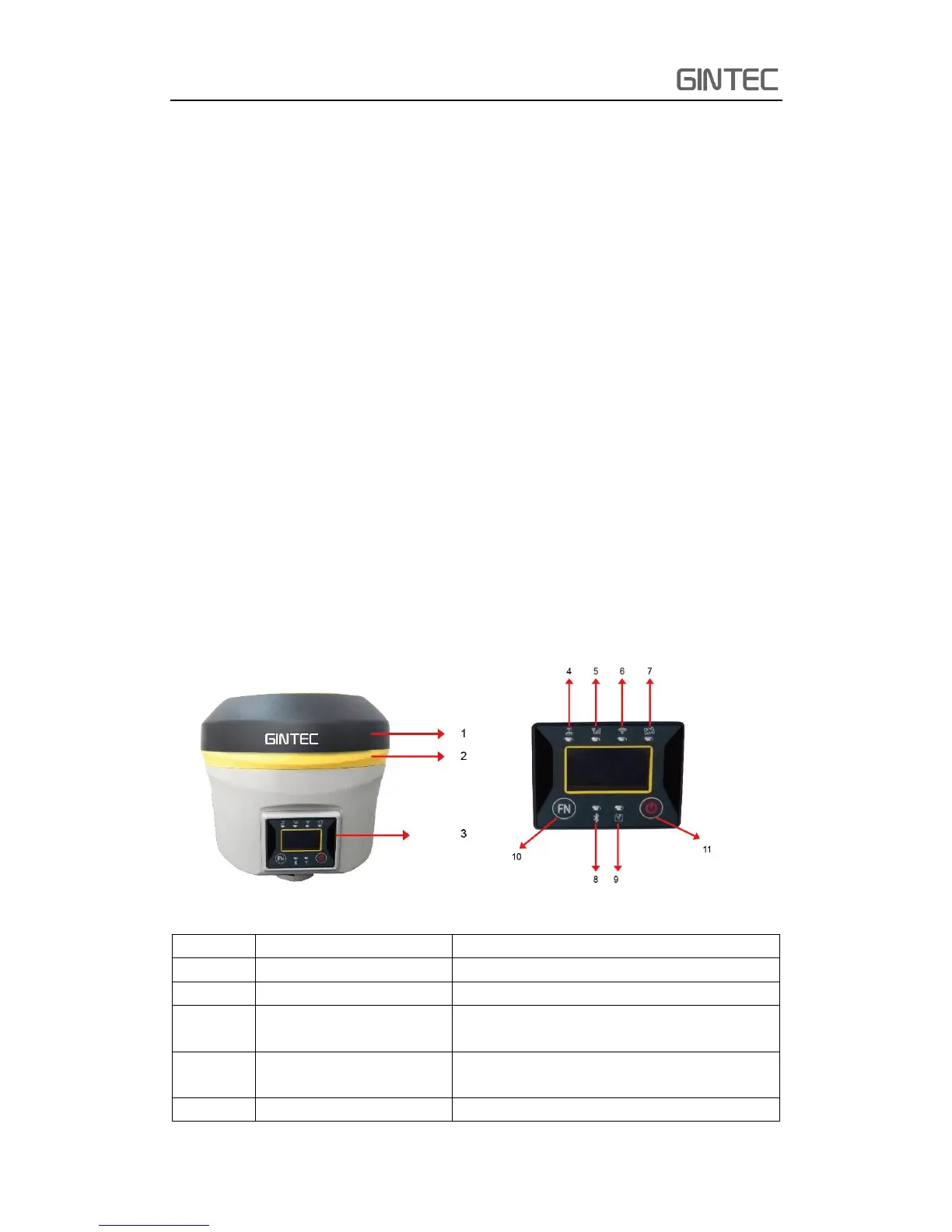

Figure 2-1 Front panel
Number
Name
Function
1
Top cover
Protect the antenna
2
Protection rubber ring
Protect the receiver in case of drop
3
LED screen
Show wok mode, datalink,
and configuration information
4
Radio indicator
When the receiver is transmitting/receiving
radio signals, it will blink
5
Network indicator
It will blink when G10 is receiving net signals
