G10
11
receiver, make self-checking, change the log password and restar the receiver. So
“Manage” will be used in many stitons.

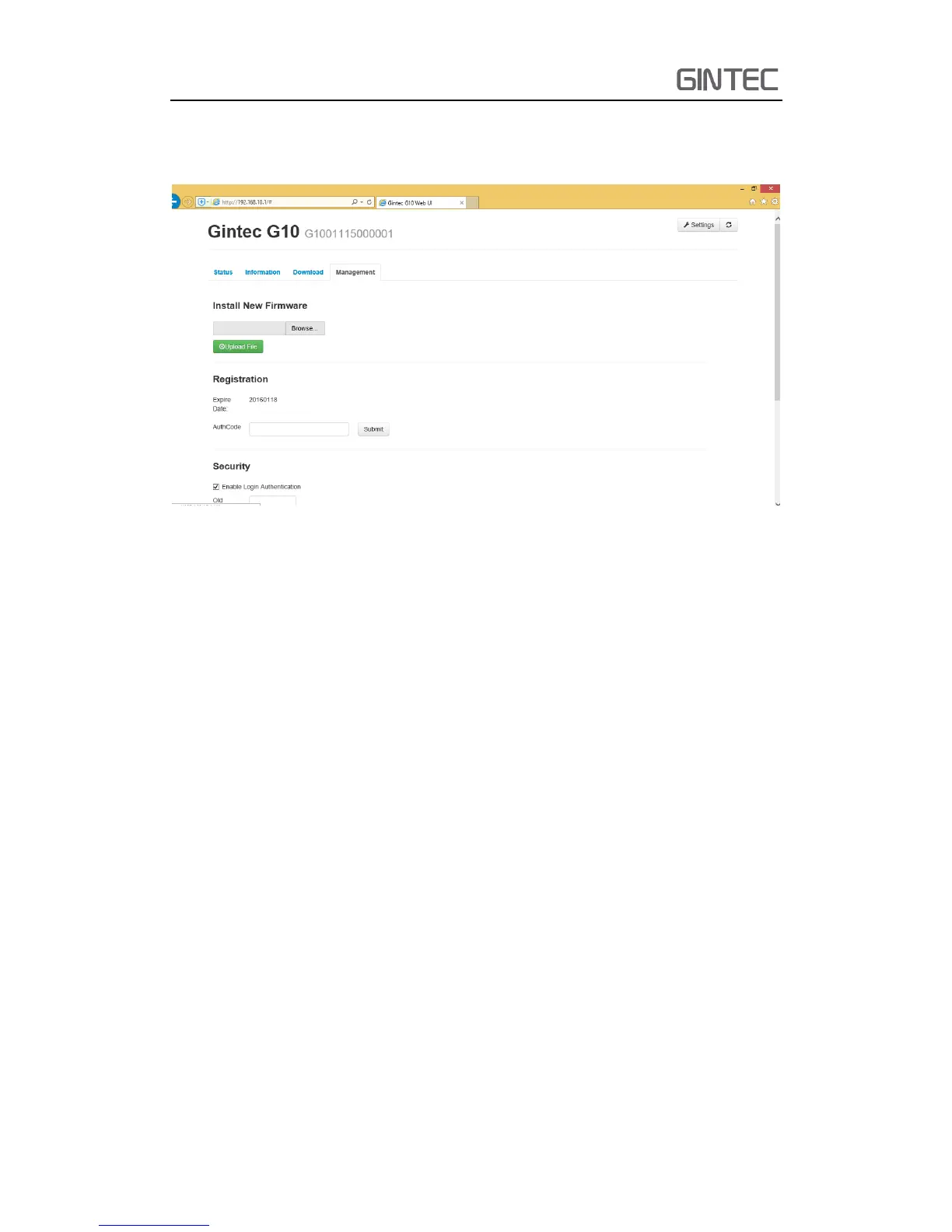

Figure 2-12 Mnagement
2.3.5 Settings
“Settings” includes “Working Mode”, “Device Configuration” and “NMEA
message”. All of these functions are very useful. Here will introduce every selection.
(1) Working Mode
You can select different work mode to configure, static, rover and base. In different
mode, there are different configuration you can make.
(a) Static Mode
As the pictures show, you can set cutoff angle, select satellites system, input
the point name, antenna height, PDOP threshold. And the antenna
measurement and collect interval. These are all the parameters can be used in
static collection
At last, there are two record options. If you activate auto record, it will
collect data automatic when you power on the receiver.
