USER MANUAL
Range BEAT-Tr
Edition: January 2016
- MACHINE’S DESCRIPTION Revision: No. 3 12
CHAPTER 2: UNIT’S DESCRIPTION
2.1 GENERAL
The electrofusion units BEAT-Tr and MINI BEAT-Tr are made up of a metal casing, a
master switch, the mains and electrofusion cables. Additionally it is fitted with a D-sub
connector for the connection of scanner, PC and printer.
The front part is formed by a membrane which incorporates tactile push-buttons to enter
the data and a back-lit LCD display.
Inside, the unit is formed by a processor board (CPU), transformer, in addition to all of
the electronics necessary for the electrofusion process, current and voltage controls.

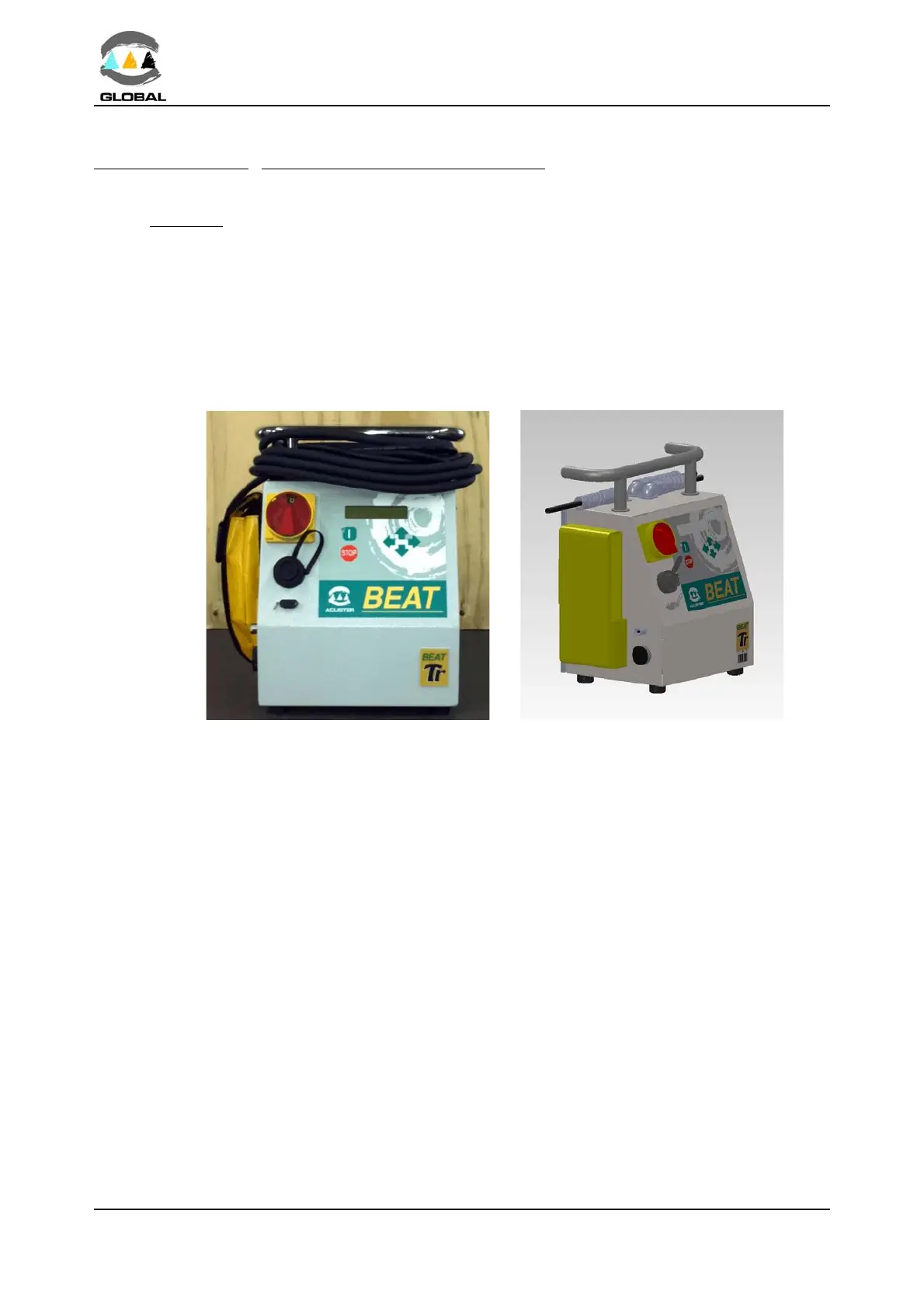

Figure 3a: General view BEAT-Tr Figure 3b: MINI BEAT-Tr
