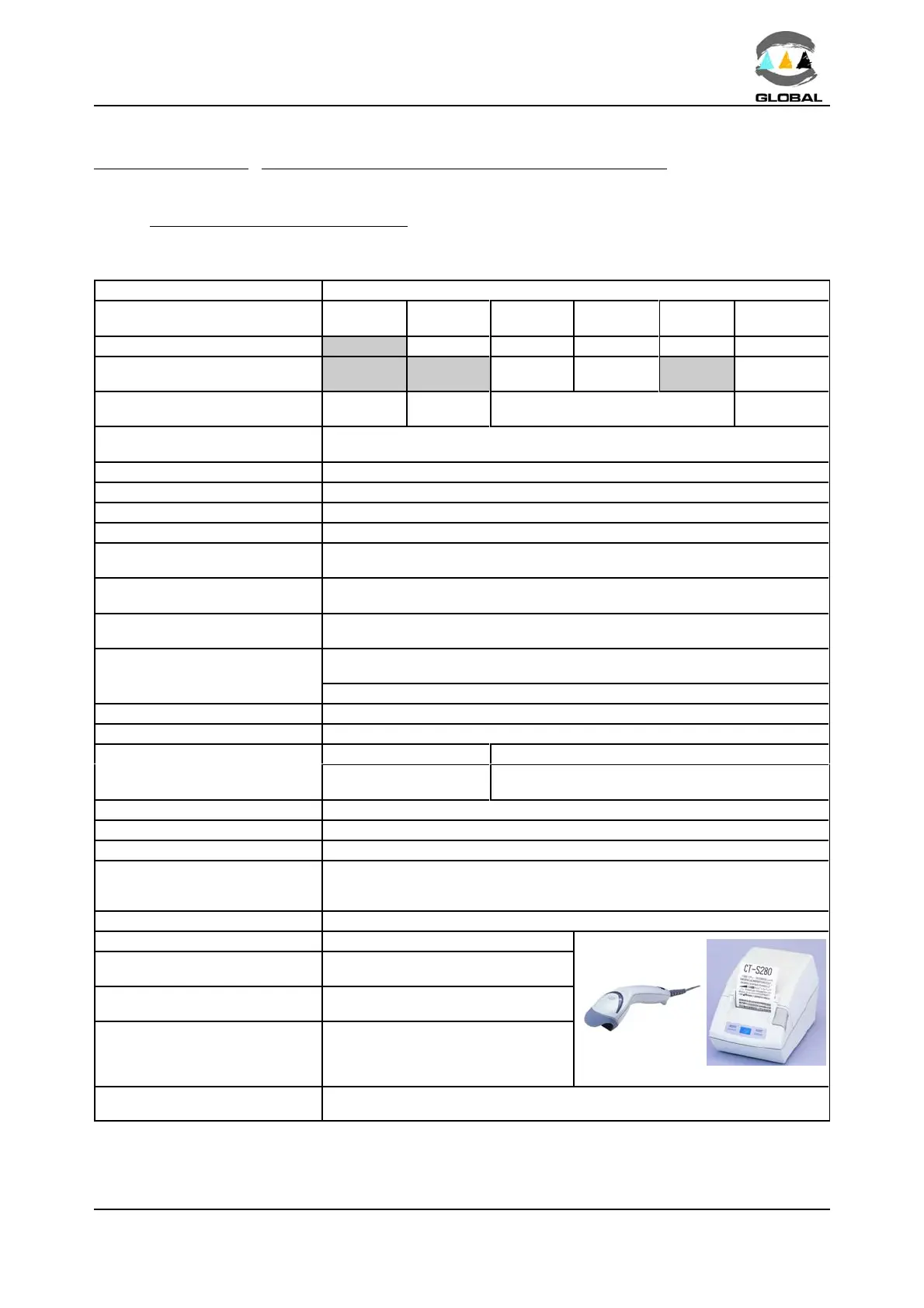

TECHNICAL CHARACTERISTICS - 49
CHAPTER 6: TECHNICAL CHARACTERISTICS
6.1 ELECTROFUSION CONTROL UNIT
6.1.1 General specifications:
Classification acc. to ISO 12176-2 BEAT-Tr: P
2
4US
1
VKADX / MINI BEAT-Tr: P
2
3US
1
VKADX
Configuration options Language Date/Time Operator Job Auxiliary
data
Traceability
Activate/deactivate ON/OFF ON/OFF ON/OFF ON/OFF ON/OFF
Enter data by barcode acc. to ISO
12176-3
acc. to ISO
12176-4
acc. to ISO
12176-4
Enter data manually Multilingual
Select
Manual
Enter
16 alphanumeric
characters maximum
26 or 40 digits
as component
Input voltage 195 Vac to 265 Vac. Nominal voltage: 230 Vac
90 Vac to 140 Vac. Nominal voltage: 110 Vac
Input frequency 45 Hz to 65 Hz. Nominal frequency: 50 Hz
Electrofusion voltage BEAT-Tr: 8 to 48 Vac / MINI BEAT-Tr: 10 to 42 Vac (galvanically separated)
Power consumption BEAT-Tr: 3500 W maximum / MINI BEAT-Tr: 2400 W maximum
Generator output performance
BEAT-Tr: 4.5 KVA/MINI BEAT-Tr: 3 KVA (unipolar operation; electronic regulation)
Protection fuse Interior of 20 A at 230 Vac
Interior of 40 A at 110 Vac
Degree of protection (CEI 60529)
Mechanical strength (CEI 62262)
IP54, Class I / Series AR: IP43, Class I
IK10 (20 Joules)
Duty factor 20 to 100% (depending on the fitting); Series AR: 50 to 100%
Electronic temperature monitoring of the unit
Working temperature Manual Informative, with established limits
(recommended acc. to ISO 12176-2 from -10 to 40°C)
Barcode -20
/C to 50/C (could be modified since software version v. $ 1.32)
Display LCD, 2 lines x 20 characters backlight
Acoustic warning Piezoelectric buzzer
Enter fusion data Automatic Manual
Barcode
acc. to ISO/TR 13950
Voltage: Multivoltage
Time: Up to 5,940 seconds (99 minutes)
Internal memory capacity 736 fusion records (since software version v.
$ 1.32
Front and keys Silkscreen plastic membrane with tactile push buttons
Other features Soft start and message display in case of initial voltage failure
Power cable 3x2.5 mm
2
(Schuko + French type plug) 4 m long
3x2.5 mm
2
(230V, 16A Blue acc. to EN 60309 type plug) 4 m long
3x4 mm
2
(110V, 32A Yellow acc. to EN 60309 type plug) 4 m long
Electrofusion cables 1x16 mm
2
, 3 m long (female terminals of diameter 4 mm)
Scanner Scanner
Connection of scanner, PC & printer
Connection to Pendrive & scanner
D-Sub 9 pins male
USB/A
Accessories Document holder with a set of 4 and
4.7 mm electrofusion adaptors
Options Transmission cable to PC & Printer
Serial printer
Serial scanner
Memory stick
Dimensions
Nett weight
Height: 370 mm; Width: 300 mm; Length: 220 mm
BEAT-Tr: 20 kg / MINI BEAT-Tr: 15 kg
