GLOBALJIG INTERNATIONAL S.r.l.
11
3 TECHNICAL DESCRIPTION OF THE LIFTING PLATFORM
3.1 General information
The KOALA LP is designed and manufactured in consideration of the operational requirements of car body
mechanics within working environments like car body repair shops.
3.2 Identification of the parts

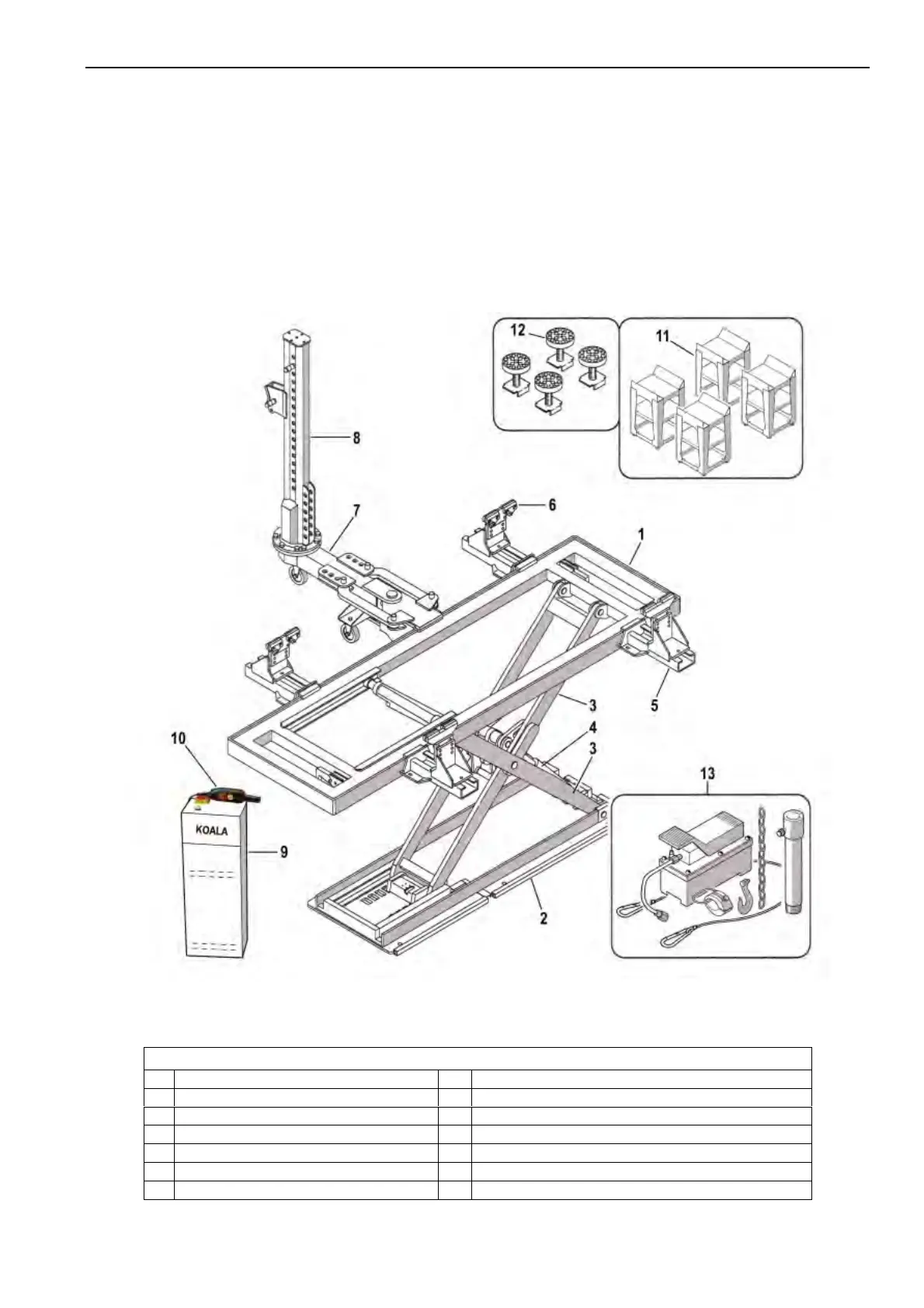

The locations of the main components which make up the LP are shown in fig. 3.1 (including accessories).
Fig. 3.1
LEGEND
1 Upper frame 8 Vertical arm
2 Base 9 Control unit
3 Lifting arms 10 Control button panel
4 Hydraulic lifting cylinders 11 Wheel support “stools”
5 Vehicle support brackets 12 Lifting pads
6 Vehicle fastening clamps 13 Complete hydraulic assembly
7 Horizontal towing arm
