4.8. System connections
HYDRAULIC:

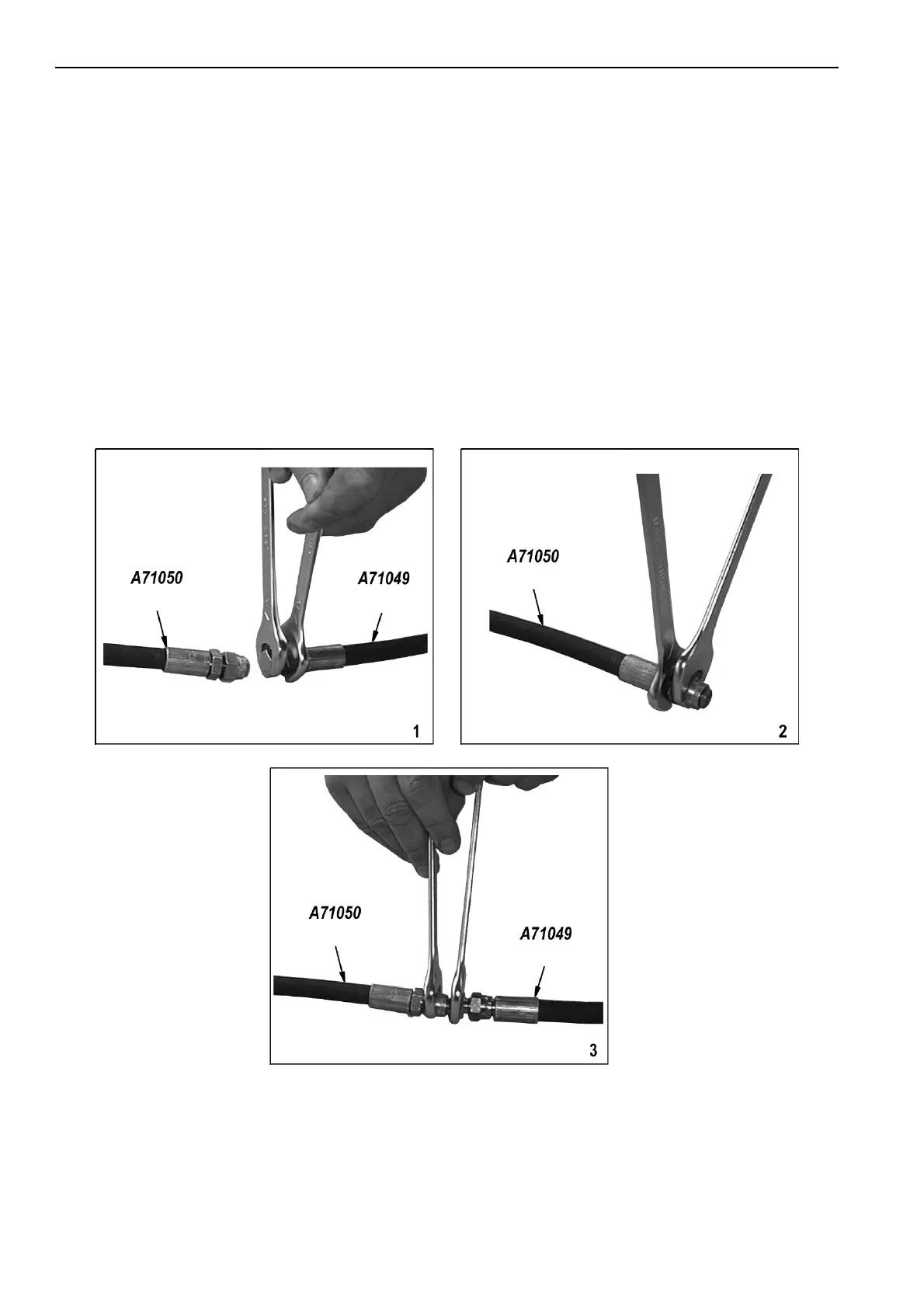

 Use two wrenches to remove the caps (male / female) from the fittings of the flexible tubes (A71049 and
A71050) and connect them together (photos 1, 2 and 3).
COMPRESSED AIR:
 Connect the flexible tube (A70178) with the quick connector (A70185), from the control unit, to the tube
from the lift (A70179).
 Connect tube A70177, complete with it's 1/4" female quick connector fitting A42747, to the compressed
air supply.
ELECTRICAL (raising limit switch):
 Connect the plug and outlet of the cables from the control unit and the lift.
! ! ATTENTION! !
The incorrect or omitted connection of these elements will impede the lift’s ascent functionality for safety reasons.
4.9. Commissioning the Koala lifting platform
After having performed all of the system’s connections as described above, press the raise button on the remote
control (fig. 5.1).
If the direction of rotation (RST) of the phases is correct, the LP will rise.
If the LP does not move and the control unit’s motor “turns”, release the button immediately; the motor’s direction
of rotation is incorrect and the pump could be damaged.
Invert the plug’s phase wires and repeat the operation.
(
Lift
)
(
Lift
)
(Control unit)
(
Lift
)
(Control unit)
