GLOBALJIG INTERNATIONAL S.r.l.
18
4.5. Lifting platform installation and work area
The LP’s working position must be determined in consideration of the fact that the hydraulic control unit’s tube for
connecting to the LP is 3.5 m in length and connects to the front, on the opposite side to that upon which the vehicles
are loaded.
Perform the following connections:
Flexible oil supply tube (unscrew the male / female caps)
Air tube
Limit switch cable
Connect the electrical power supply (230/400 V - 50/60 Hz tri-phase; or 200 V - 50/60 Hz tri-phase) to the
control unit by means of the appropriate socket.
! NOTE !
For the assembly and use of the vehicle support arms
and the other parts to be inserted upon them,
see the procedures described in chapter 5.

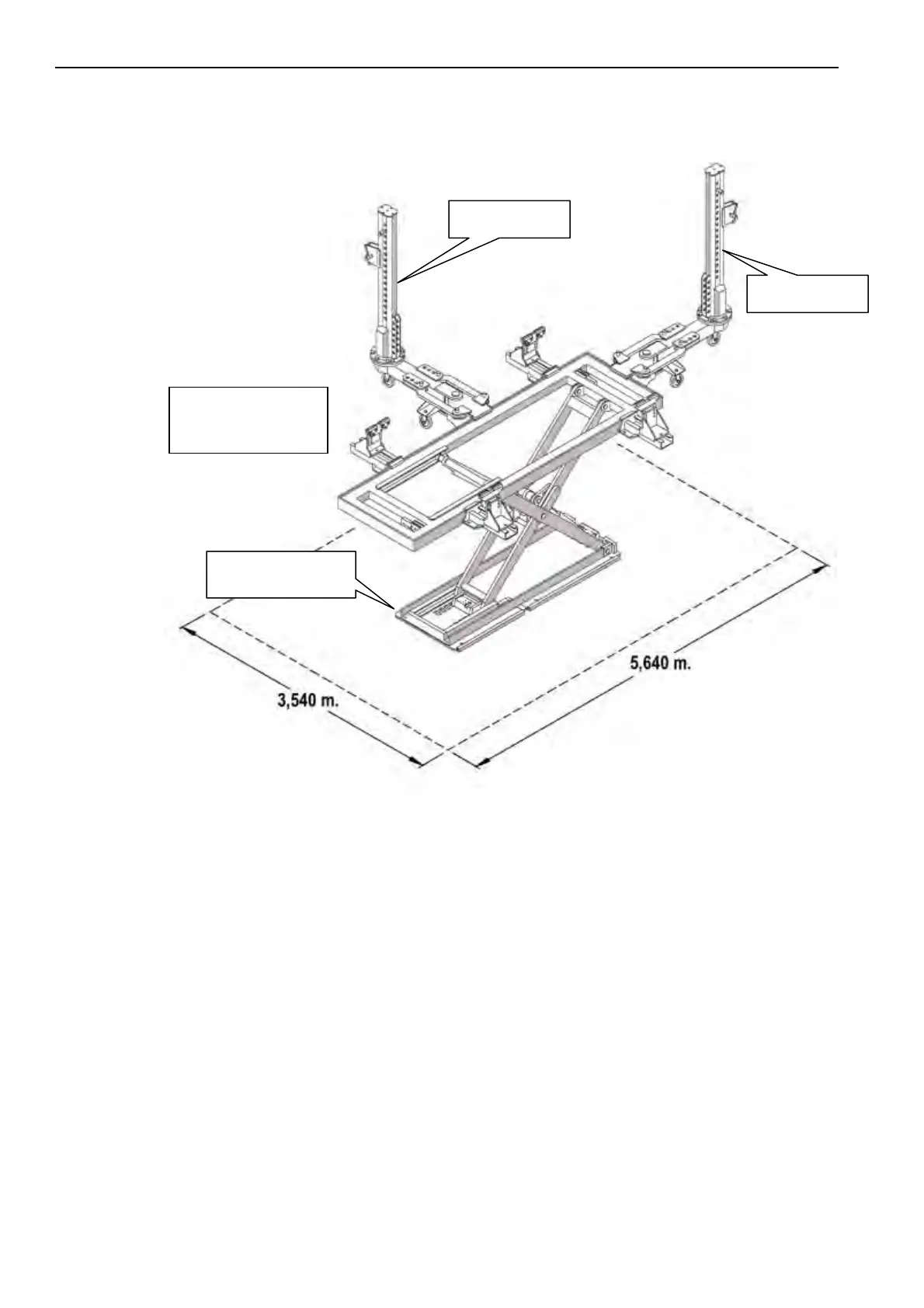

Support base
m. 2.055 x 0.75
Work area
encumbrance
measurements
Towing arm
Towing arm
