GLOBALJIG INTERNATIONAL S.r.l.
16

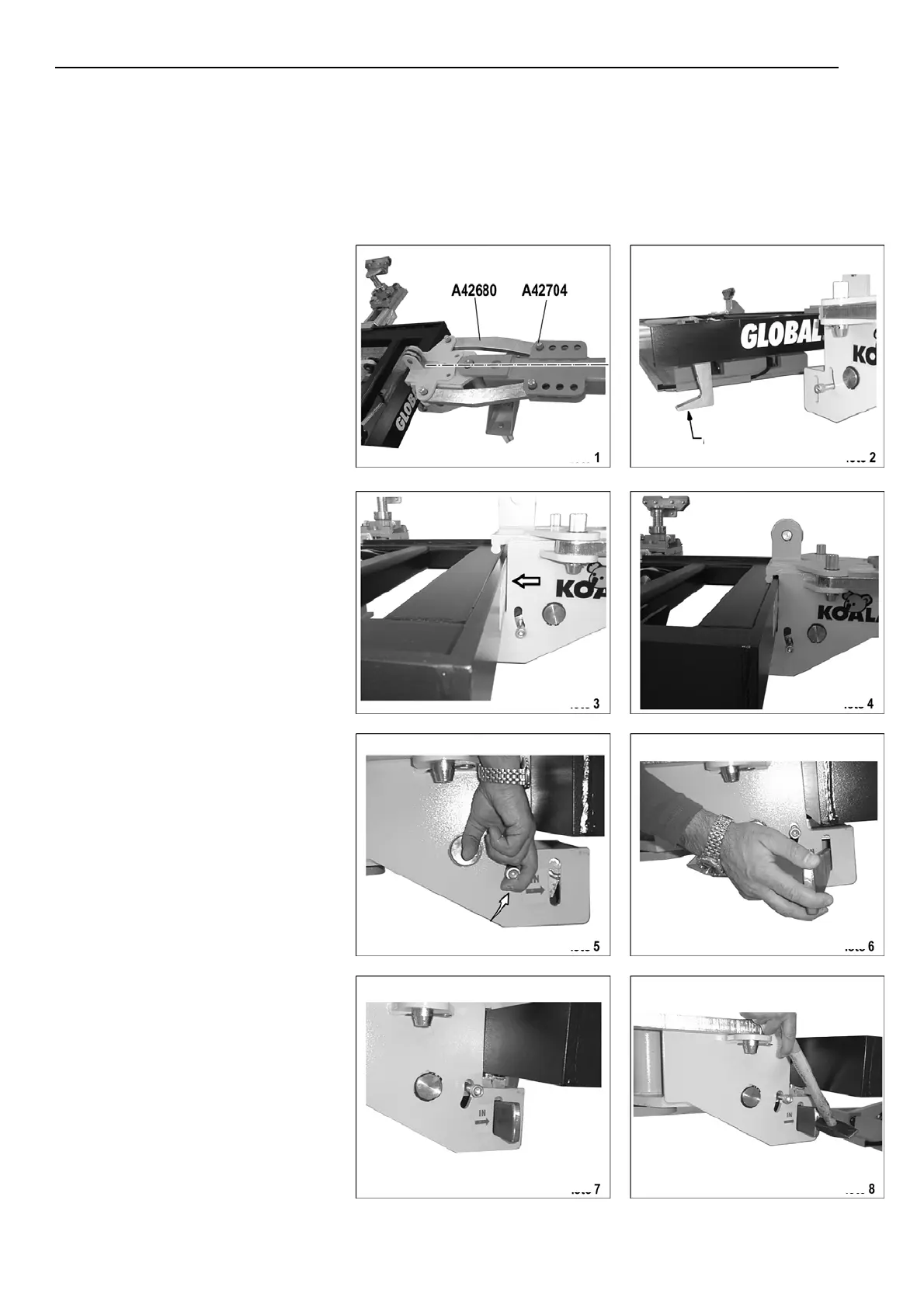

4.3.Application of the towing arm
! !
ATTENTION! !
Before connecting or disconnecting the towing arm, make sure that the horizontal element
is aligned with the articulated element (see photo 1).
Failure to respect this indication could result in personal injury or property damage.
- Raise the LP so that the
"support feet" are in their
vertical position (properly
engaged).
- Lower the LP so that it rests
upon the "feet" (see photo 2).
- Position the towing arm upon
the frame (see photo 3).
- Raise the LP so that the
towing arm remains
connected to the edge of the
frame and the wheels are
lifted off the ground (see
photo 4).
- Use the two pins (protruding
from the side) to manually
raise the lower connector
until it makes contact with the
frame (see photo 5).
- Insert the wedge (with the
round profile facing down)
into the slot on the right,
indicated with the label IN
(see photos 6 and 7).
- Use a hammer to firmly block
the wedge in place (see
photo 8).
Support foot
