GLOBALJIG INTERNATIONAL S.r.l.
17

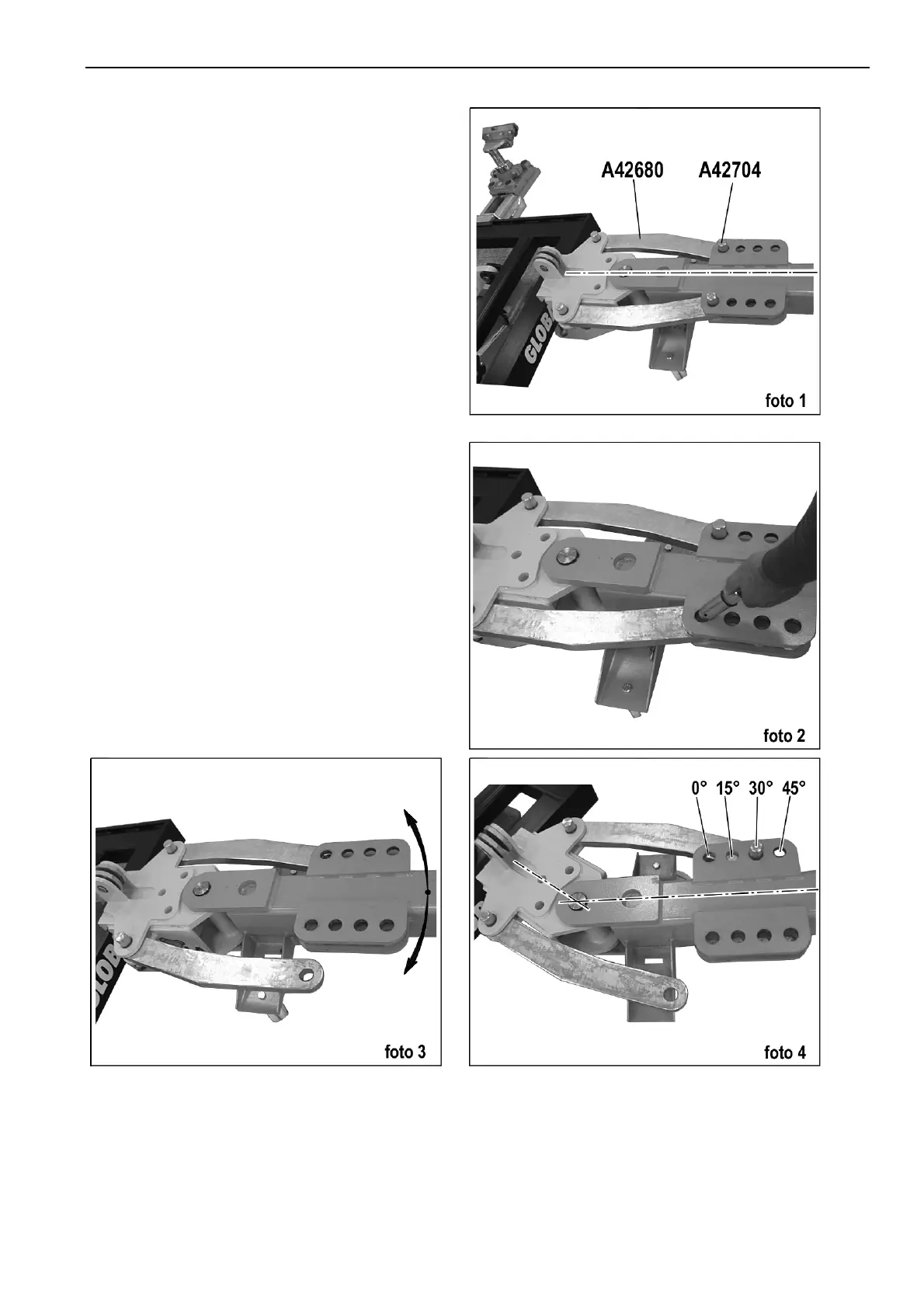

4.4. Towing arm operating positions
- In order to adjust the position to the right
or left, remove the two pins (see photo 2)
and align the arm (see photo 3) blocking
one of the two connection rods with the
pin (see photo 4).
“Straight" towing position, or rather
perpendicular to the frame (see photo 1).
The two connection rods (A42680) must
be applied as a pair (with the A42704
pins).
