2 GENERAL DESCRIPTION
2.1 Encumbrance dimensions of the lifting platform

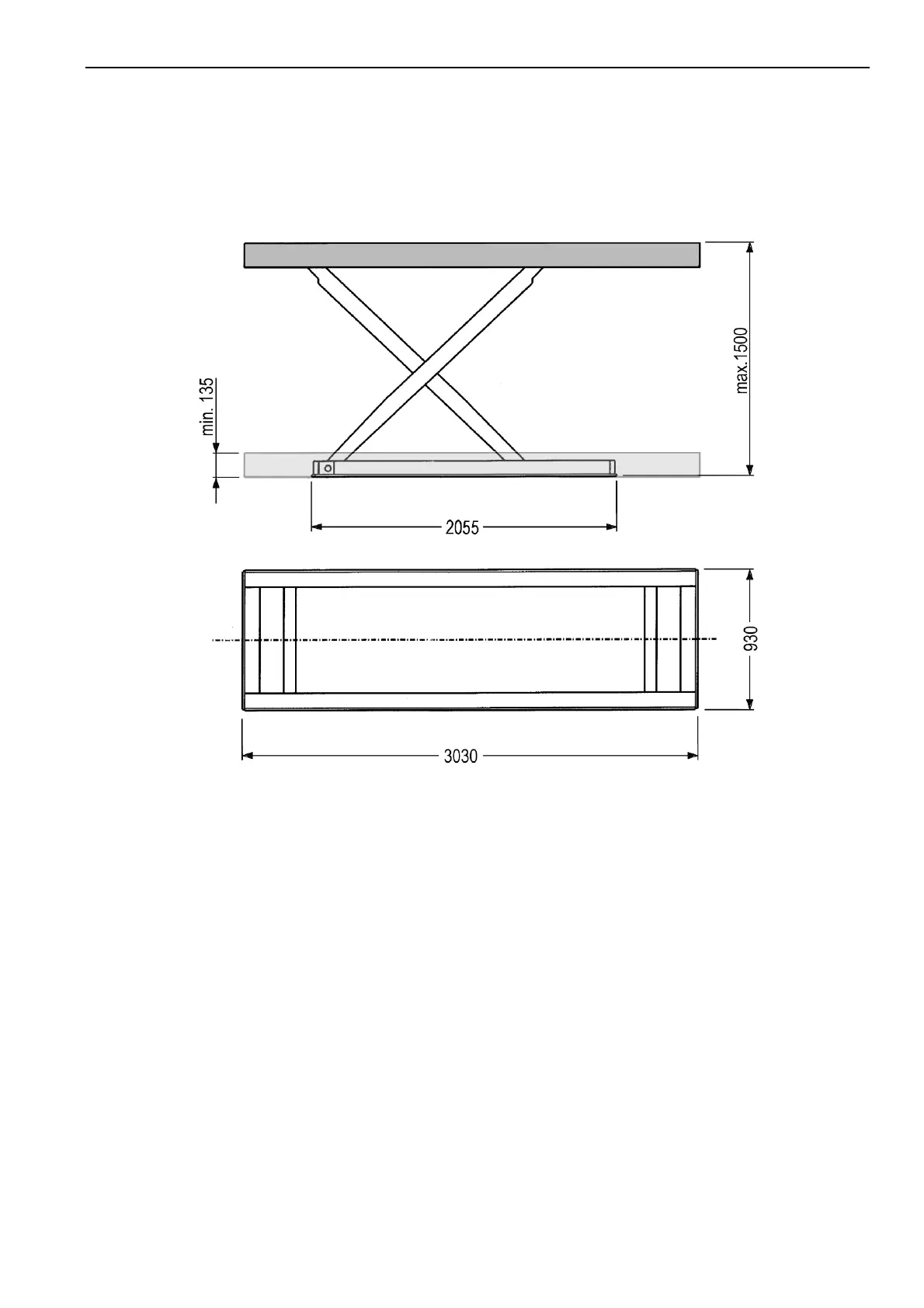

The encumbrance dimensions of the KOALA LP are illustrated in fig. 2-1 below.
Fig. 2.1
NOTE: A minimum space of 1.35 m must be guaranteed around the entire perimeter of the LP.
2.2 User
The LP’s ease of use does not require any additional qualifications with respect to those indicated in
chapter 1, section 1.2. The reading of this manual is considered sufficient in order to guarantee the
necessary knowledge for operating the LP correctly. Particular attention must be paid to the aspects
regarding Personal Safety and the Environment. Adjustments and maintenance interventions must only be
performed by operators in possession of the qualifications and authorisations outlined in chapter 1, section
1.2.
2.3 Consignment
All of the components that make up the KOALA LP, and are delivered to the Customer, are listed below:
- lifting platform
- control unit complete with mobile button panel;
- towing arm;
- 4 vehicle support and anchoring arms;
- 4 vehicle fastening clamps;
- 6 anchor bolts for fastening the base to the ground.
