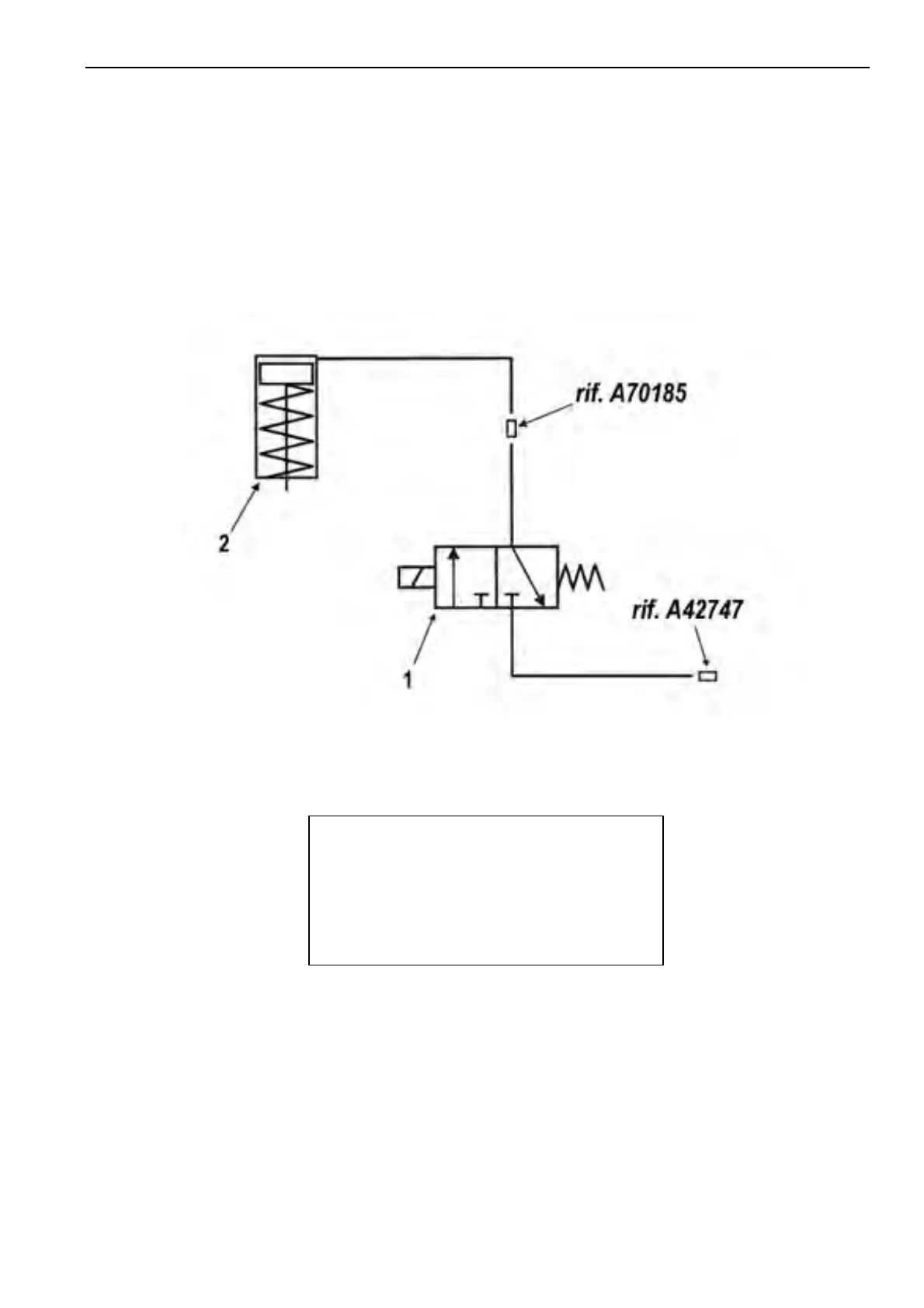

Pneumatic system scheme
1 – 3-WAY PNEUMATIC SOLENOID
VALVE NORMALLY CLOSED
2 – SHORT STROKE PISTON
Bore dia. 3 – stroke 20
ARTEC FSR32-20
