11.2.1 DRIVING OR WINCHING ONTO OR OFF OF A TRANSPORT VEHICLE
Before loading or unloading the machine, check that:
• The deck extension, controls and component trays are secure.
• The platform is fully lowered.
• All loose items have been removed.
Before driving or winching the machine:
• Attach the machine to a winch.
• Remove all machine tie downs. Remove wheel chocks.
Driving
• Turn the Base Key Switch to PLATFORM. Check that the EMERGENCY STOP is reset by turning it clockwise.
• Enter the platform and reset the Platform EMERGENCY STOP.
• Test platform control functions.
• Select slow drive speed mode. Carefully drive the machine off the transport vehicle with the winch attached.
Note: The brakes are automatically released for driving and will automatically apply when the machine stops.
Winching
• Carefully operate the winch to lower the machine down the ramp.
• Chock the wheels and engage the brakes.
Lifting The Machine With A Forklift
• Position the forklift forks in line with the forklift pockets.
• Drive forward to the full extent of the forks.
• Raise the machine 15 cm and then tilt the forks back slightly to keep the machine secure.
• Be sure the machine is level when lowering the forks.

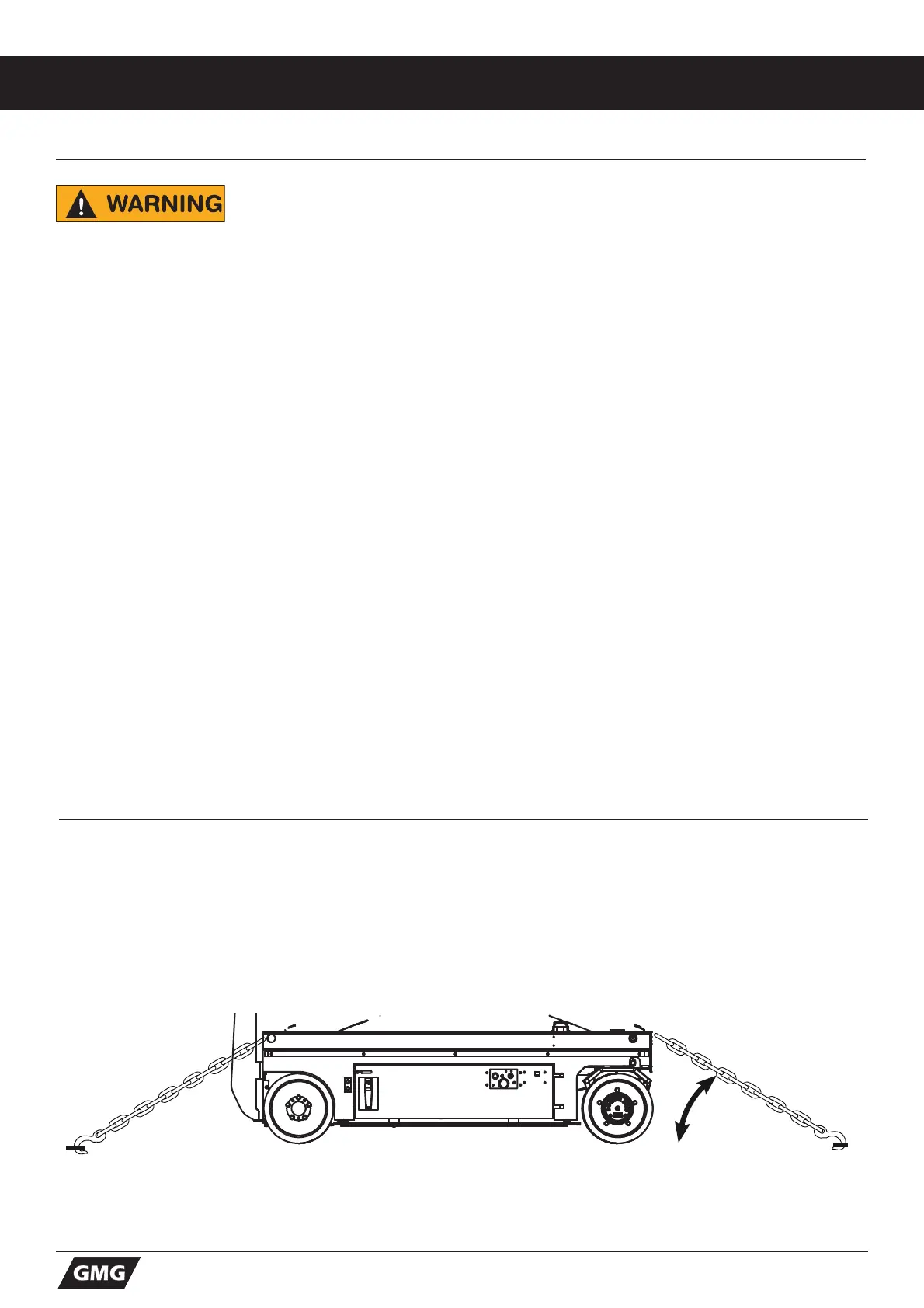

11.2.2 SECURING TO TRUCK OR TRAILER FOR TRANSPORT
• Turn the Key Switch to OFF and remove the key before transport.
• Inspect the entire machine for loose or unsecured items.
• Chock the wheels
• Use the tie-down points on the chassis for anchoring down to the transport surface.
• Use chains or straps of ample load capacity.
• Use a minimum of four (4) chains or straps.
• Adjust the rigging to prevent damage to the chains and the machine.
Always attach the machine to a winch when loading or unloading from a truck
or trailer by driving. Read and understand all safety, control, and operating
information found on the machine and in this manual before operating the
machine.
30°
