6.6 DRIVING ON A SLOPE
Determine the slope and side slope ratings for the machine and determine the slope grade.
Maximum forward/rearward slope rating, stowed position 25%.
Maximum side slope rating, stowed position 5°.
Note: Slope rating is subject to ground conditions and adequate traction.
Set the Drive Speed Switch to the DOWN (Turtle) position to engage slow speed drive mode.
DO NOT drive the machine on a slope with the platform elevated.
The platform must be in the fully stowed position before driving on a slope.
6.5.2.C OVERLOAD INDICATION
6.5.1.C TILT READING
If the DIAGNOSTIC DISPLAYS read out the message TLT the internal tilt sensors are detecting a TILT
situation.
Further movements are being disabled, with the exception of lower the platform.
Lower the platform directly when the TLT message is given. Position the machine of firm level ground.
If any of the DIAGNOSTIC DISPLAYS read out the message OL, the platform is overloaded.
No function will operate. An Alarm will sound.
1. Push in the EMERGENCY STOP to the OFF position
2. Remove weight from the platform.
3. Pull out the EMERGENCY STOP to the ON position

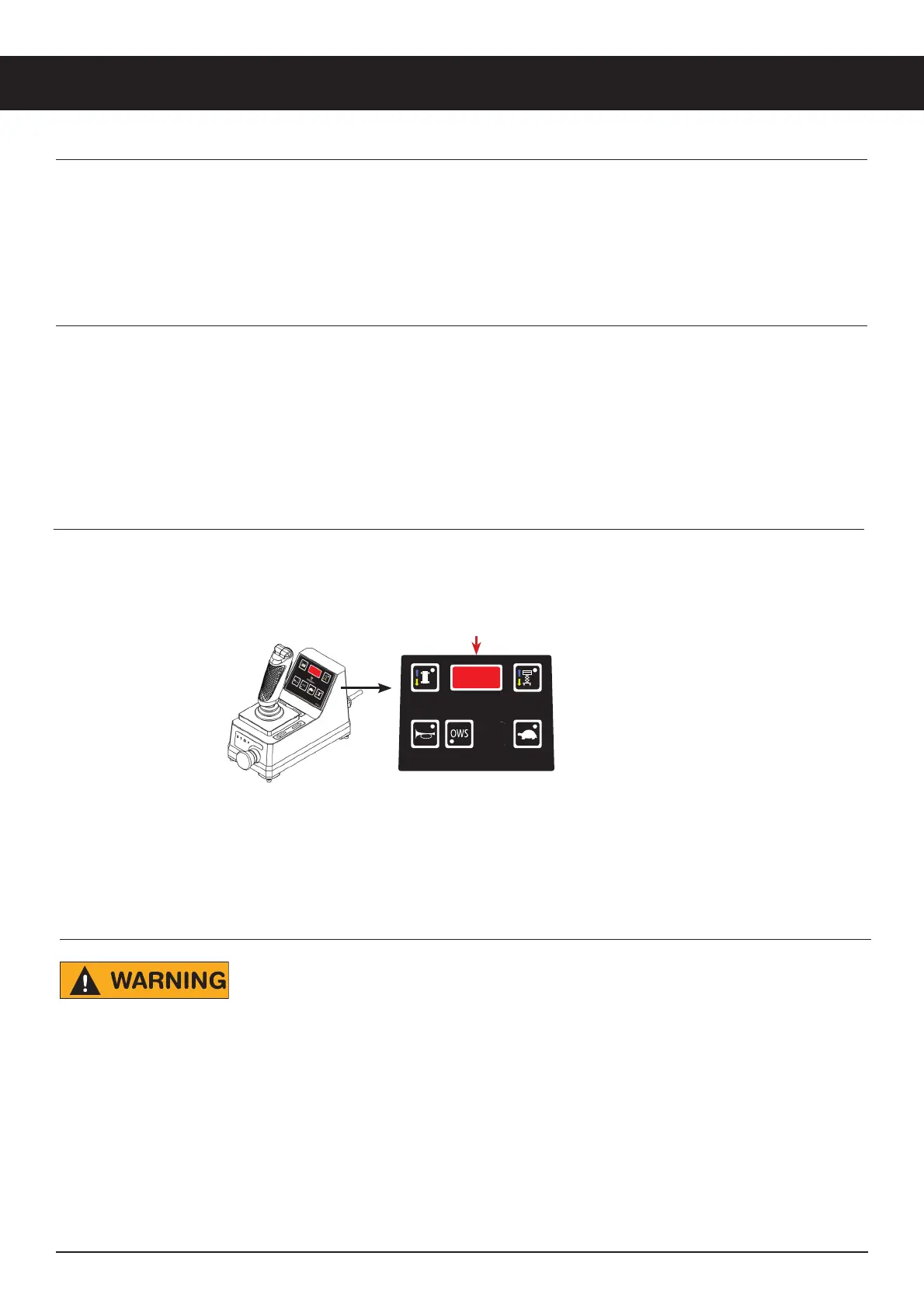

DISPLAY
When non of the above is applied, display shows the status of the batteries. Where 100 is a full charge
/ 0 (zero) flat batteries.
6.5.3.C BATTERY STATUS (ONLY ON TYPE C CONTROL BOX)
Operating Instructions
