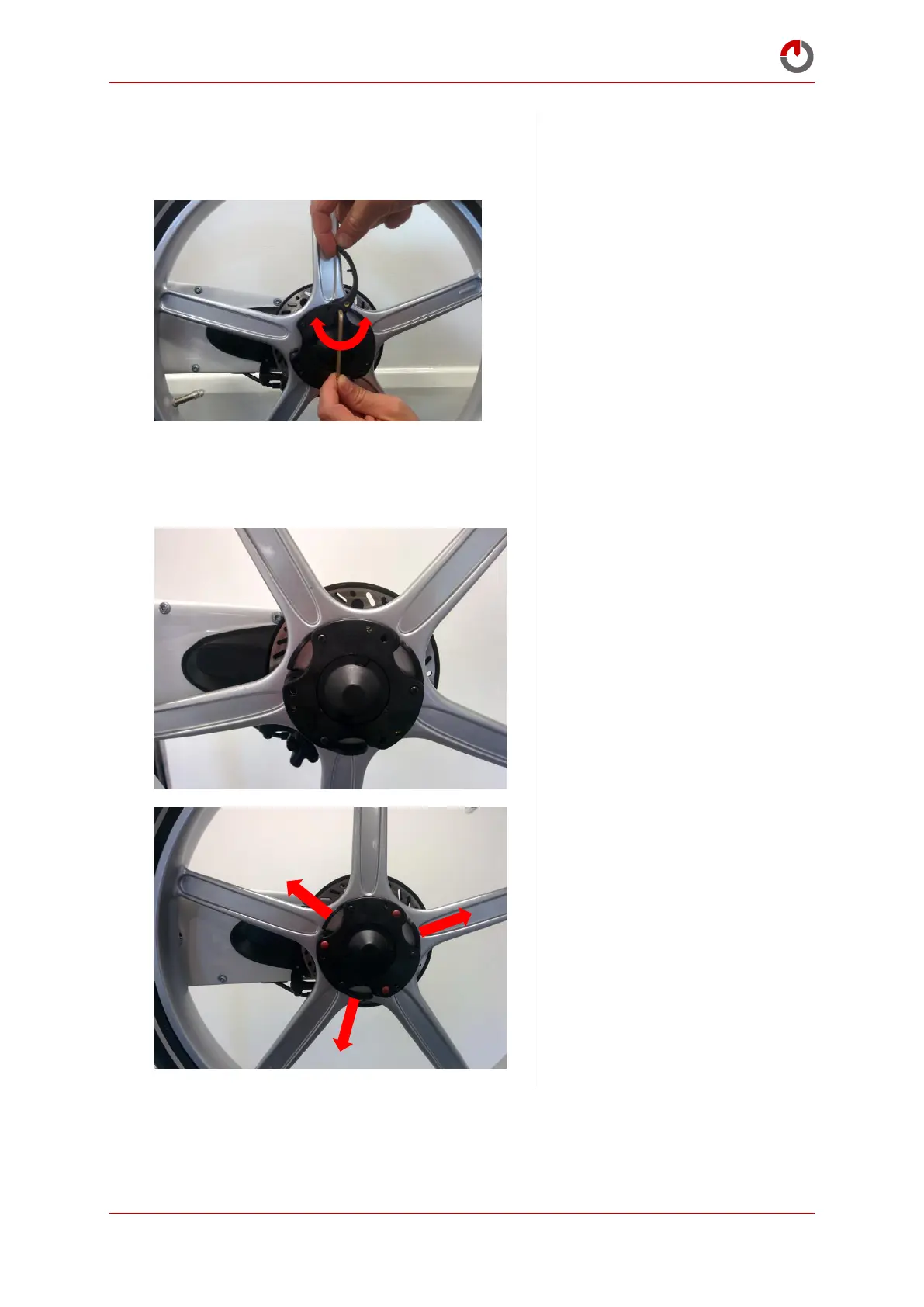

6. Insert the 4mm Allen key
into the stud and turn
clockwise to reduce the cam
lever free play and
anticlockwise to increase
cam lever free play. Hold the
cam lever lightly while
turning the allen key in order
to detect the engagement
point and Free play. To check
if the adjustment has
corrected the free play,
remove the allen key and
close the cam lever to allow
the system to set and then
reopen and re-check free
play. Adjust until you are
satisfied that the free play is
10mm or less.
7. Repeat the process for the
other two cam levers. Then
complete one more full check
of each cam lever to ensure
that once adjusted and settled
the resistance to close the cam
levers is equal across the
three levers.
8. Cross check reference:
there should now be an equal
resistance across all three cam
levers requiring 3-5kg to open
an individual cam lever.
