golmar Rock Series User Manual

25
10
ctivación de dispositivos auxiliares.
A
Los monitores Platea 2 disponen de un pulsador libre de tensión ( ) para la activación
de dispositivos auxiliares entre los bornes B1 y B2.
La carga máxima aplicable a estos pulsadores es de 200mA/50Vc.c. No obstante, le
recomendamos el uso combinado con una unidad de relé R-3 y un transformador TF-104.
Las aplicaciones más usuales podrían ser la activación de las luces de la escalera, la apertura
de una segunda puerta, ...

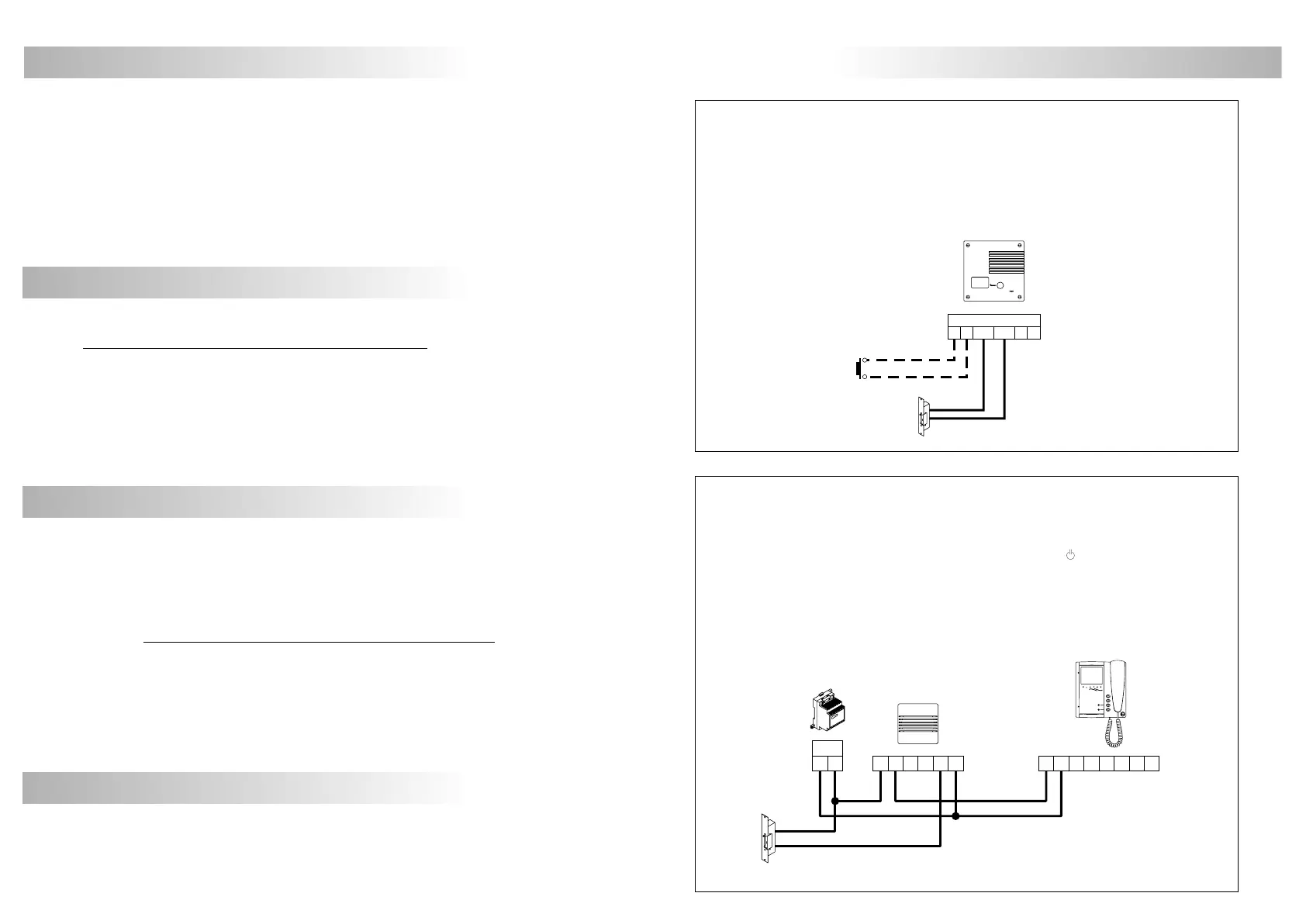

ESQUEMA DE INSTALACIÓN
Para abrir la puerta en cualquier momento mediante un pulsador externo, colocar el pulsador
entre los bornes 'P1' y 'P2' de la placa.
Esta función es especialmente útil para permitir la salida del chalet sin necesidad de llave.
P1P2
L
CN1
CV+CV-
L
ulsador exterior para apertura de puerta.
P
PV-292
SYSTEM OPERATION
STARTING RECOMMENDATIONS
O Do not use excessive force when tightening the power supply connector screws.
O Install the equipment wit the power disconnected. Disconnect from power before any system modification.
O Before to connect the system, check the connections between door panel, monitors and the
transformer connection. Do always follow the enclosed information.
INTRODUCTION
First of all we would like to thank and congratulate you for the purchase of this product
manufactured by Golmar.
The commitment to reach the satisfaction of our customers is stated through the ISO-9001
certification and for the manufacturing of products like this one.
Its advanced technology and exacting quality control will do that customers and users enjoy with
the legion of features this system offers. To obtain the maximum profit of these features and a properly
wired installation, we kindly recommend you to expend a few minutes of your time to read this manual.
SYSTEM CHARACTERISTICS
O
O
O
O
O
O
O
O
Video system with 2 wires installation.
Weatherproof (IP-44) and vandal resistant (IK-09) door panel.
Microcontroller version.
Electronic call.
Autoswtich-on function.
Potential free contact push button to activate auxiliary devices.
d.c. lock releases activation.
O Up to 1 additional telephone and call repeater per apartment (see page 33).
'Video-Spy' function with the communication channel remaining free.
O To make a call the visitor should press the push button corresponding to the apartment he wishes
to contact. At this moment the call will be received at the monitor in the dwelling and the picture
will appear on the monitor without the visitor being aware of this.
O To establish communication pick up the monitor handset. The communication will last for one
and a half minutes or the handset is replaced.
O To open the door, press the door release push button during call, communication or autoswitch-on
progresses. The communication will last once the lock release has been activated.
O To see the picture from the door panel, without being called first, press the autoswitch-on push
button. Pick up the handset and press the autoswitch-on push button to establish audio and video
communication. This function will last for one and a half minutes.
Platea 2
MRBO T
R-3
TF-104
SEC
~~
B2
AM
S+ S- L L
AM
B1
