3 Product Introduction

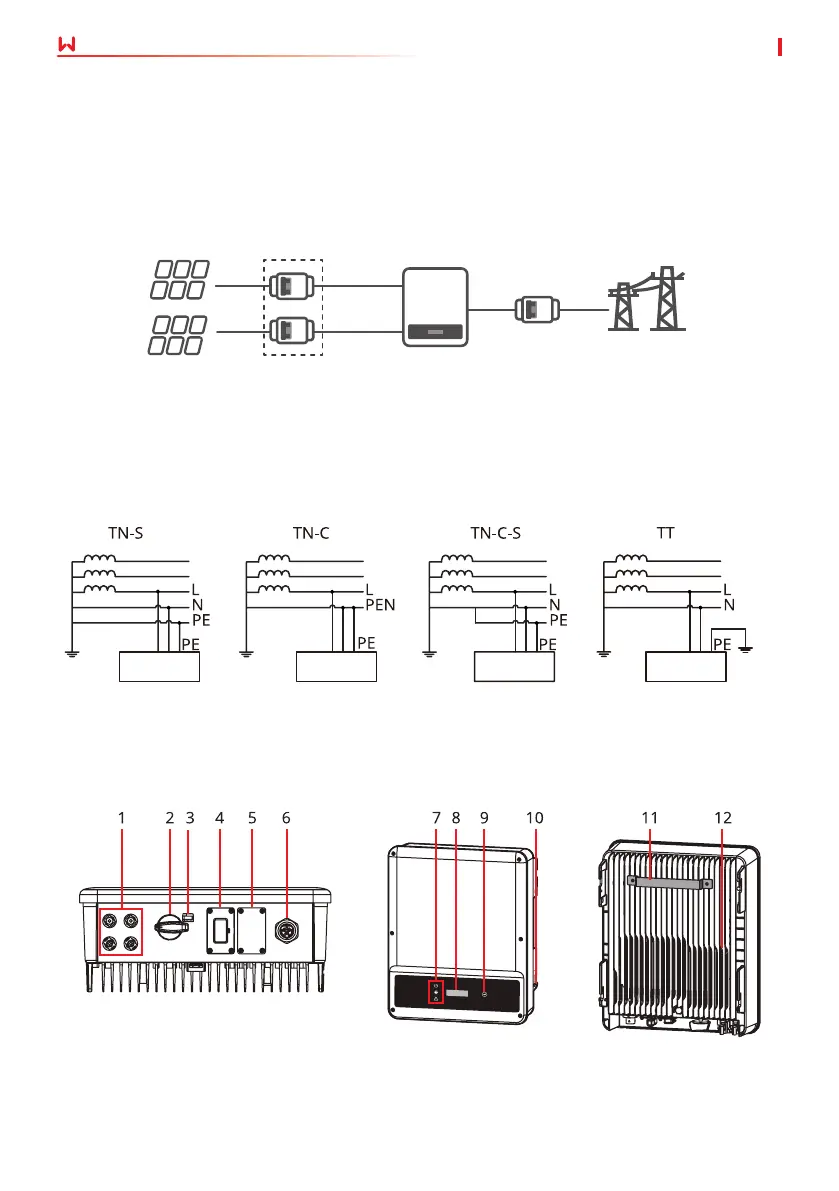

3.1 Application Scenarios
The DNS inverter is a single-phase PV string grid-tied inverter. The inverter converts the DC
power generated by the PV module into AC power and feeds it into the utility grid. The intended
use of the inverter is as follows:
PV String
Inverter
Circuit
Breaker
Circuit Breaker
(optional)
Utility
Grid
3.2 Supported Grid Types
For the grid type with neutral wire, the N to ground voltage must be less than 10V.
Inverter Inverter Inverter Inverter
3.4 Appearance
3.4.1 Parts

Goodwe DNS Series Specifications

General

Max. Efficiency	97.8%
MPPT Efficiency	99.9%
Cooling Method	Natural Convection
Protection Rating	IP65
Start Voltage	80 V
Nominal AC Voltage	230 V
THDi	<3%
Number of MPPTs	2
Output Voltage	230 V
Frequency	50 Hz / 60 Hz
Type	Grid-Tied Inverter
Rated Power Output	3000W, 3600W, 4200W, 5000W
Communication	RS485
Max. DC Input Power	4500W, 5400W, 6300W, 7500W
Max. DC Voltage	550V
MPPT Voltage Range	80-500V
Rated AC Output Power	3000W, 3600W, 4200W, 5000W
AC Voltage Range	180V - 280V
Power Factor	0.8 leading to 0.8 lagging
Operating Temperature Range	-25°C to 60°C
MPPT Range	80-500V
Model	DNS Series
